> Roth / TORO > Hand operated > Lawnmower > 4-stroke SP > 494/20784 > 220000001 > Housing, Kicker, and Washout Assy. No. 105-1309

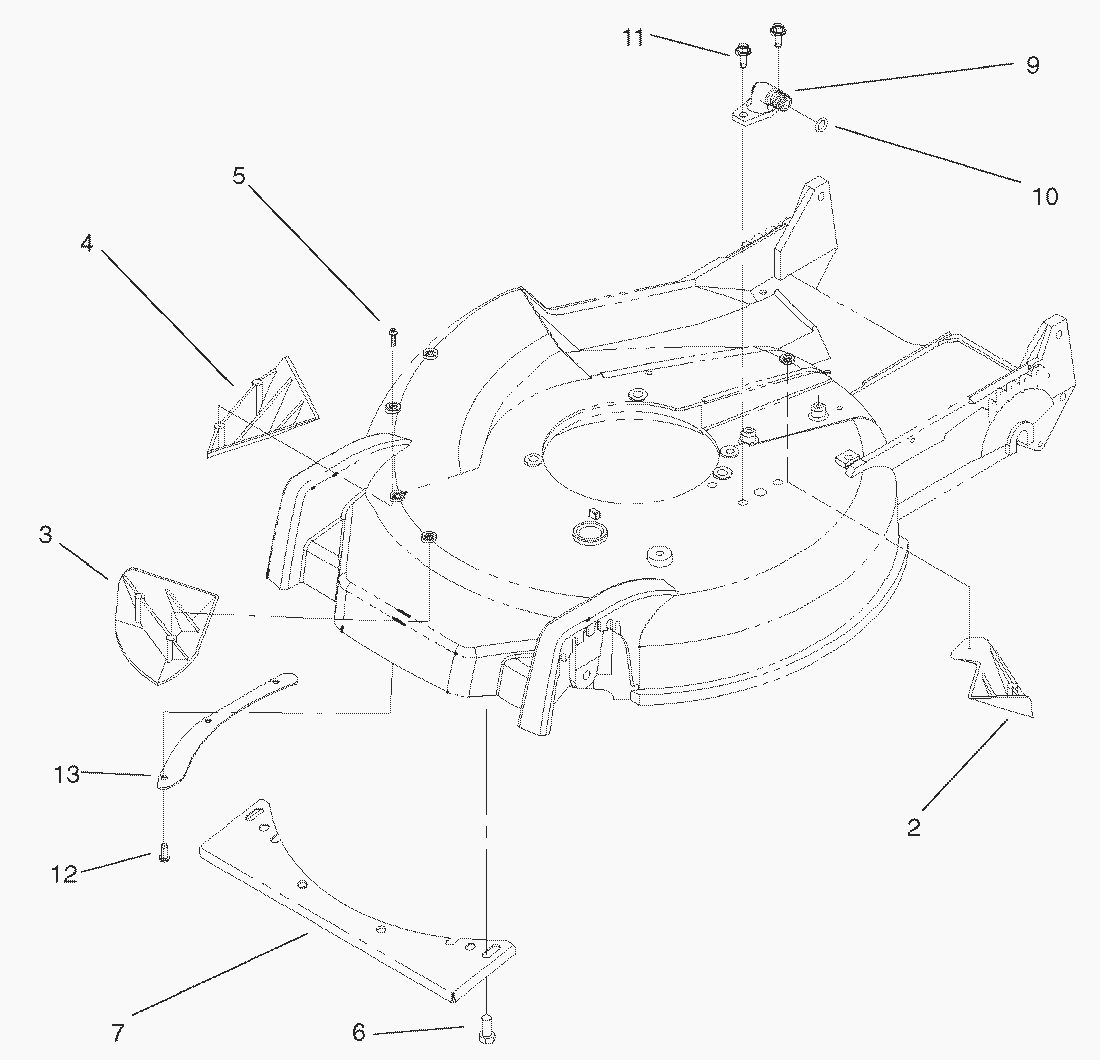

Lista de repuestos para Toro Roth / TORO Housing, Kicker, and Washout Assy. No. 105-1309




Lista de repuestos


pos.descripciónNúmero de pieza
2Plate-Kicker92-1750
3Plate-Kicker92-1720
4Kicker92-1730
5Screw-Pan Hd.32144-111
6Self Tapping Screw32144-70
7Shield-21 In46-5400-03
9Fitting-Washout (Model No. 22045 Only)95-2747
10O-Ring-Seal (Model No. 22045 Only)46-6290
11Screw-Washer Hd.46-6811
12Screw-Thread Forming63-8590
13Sheet-Lip105-1316-03
