> Roth / TORO > Hand operated > Lawnmower > 4-stroke SP > 459/20824 > 8900001 > Handle Assy.

Lista de repuestos para Toro Roth / TORO Handle Assy.


Lista de repuestos 1
Lista de repuestos 2


Lista de repuestos


pos.descripciónNúmero de pieza
1Spring-Gearbox Return71-8310
2Tie Wrap3290-378
3Cable-Traction95-9649
5Wire-Harness80-4797
6SCHRAUBE32144-99
7DECKEL71-7630
8Cover-Throttle98-3247
9SCHRAUBE32144-97
10Battery55-7520
11SCHRAUBE32144-98
12BEFESTIGUNGSBLECH71-8040
15Nut-Lock3296-73
17Control-Throttle98-1509
18Bracket-lgnition Switch71-8200
19Key-Ignition63-8360
20Hex Nut218-461
21Lockwasher3254-5
23Panel-Control (Incl.98-9237
25HALTEPLATTE71-8130
26Switch-Starter (Incl. Ref.46-5780
27Bracket-Battery95-2739
28Retainer-Battery55-8180
29DREHKNOPF19-4050
30Mount-Handle R.H.71-8100
31Mount-Handle L.H.71-8090
35Decal-Panel Key93-7175
36Handle94-4367
41Cable-Brake93-1116
47Anchor-Cable92-7729
48Screw-Handle95-4453
49Washer-Plain3256-1
51Rope-Guide95-4457
54Decal-Instruction98-2014
55Decal-Battery93-6668

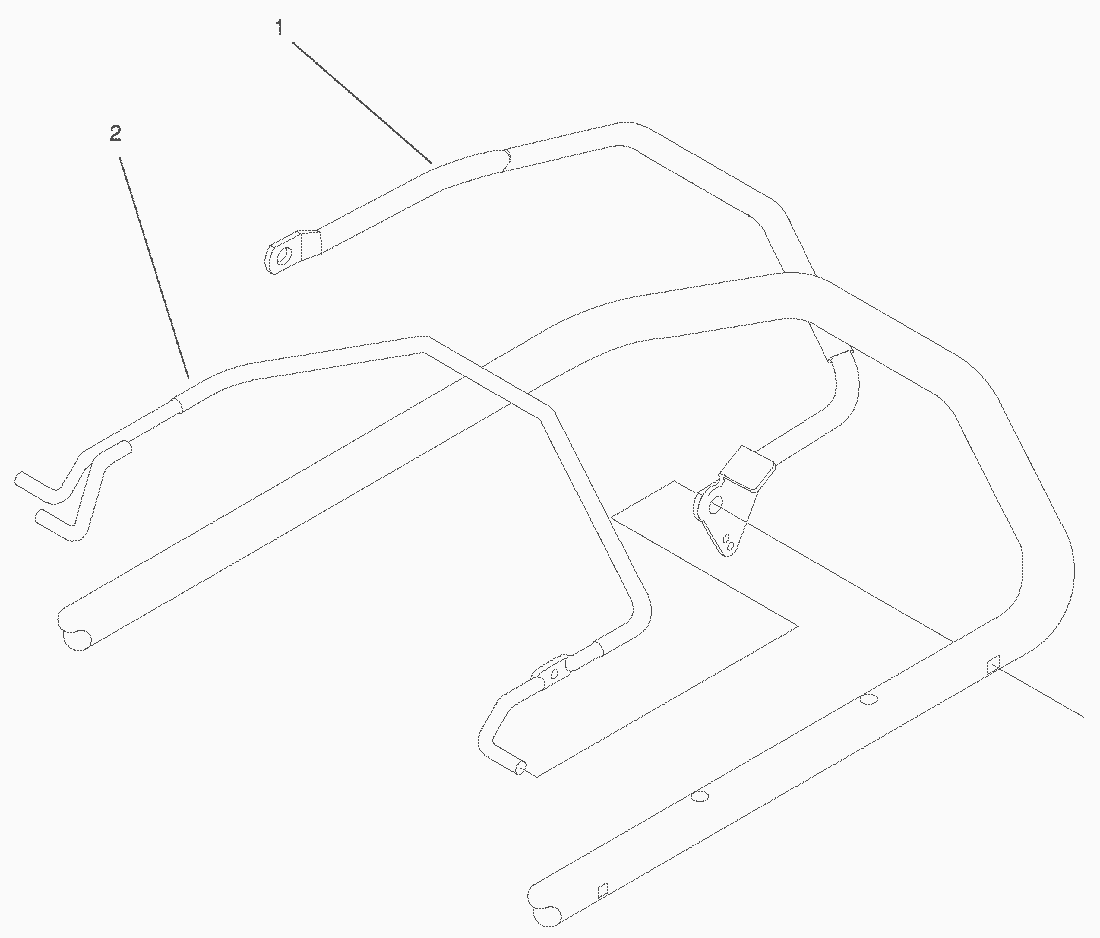

Lista de repuestos


pos.descripciónNúmero de pieza
1Bail-Traction95-4450
2Bail-Brake95-4454
