> Roth / TORO > Hand operated > Lawnmower > 4-stroke SP > 491/20786 > 8900001 > Handle Assy.

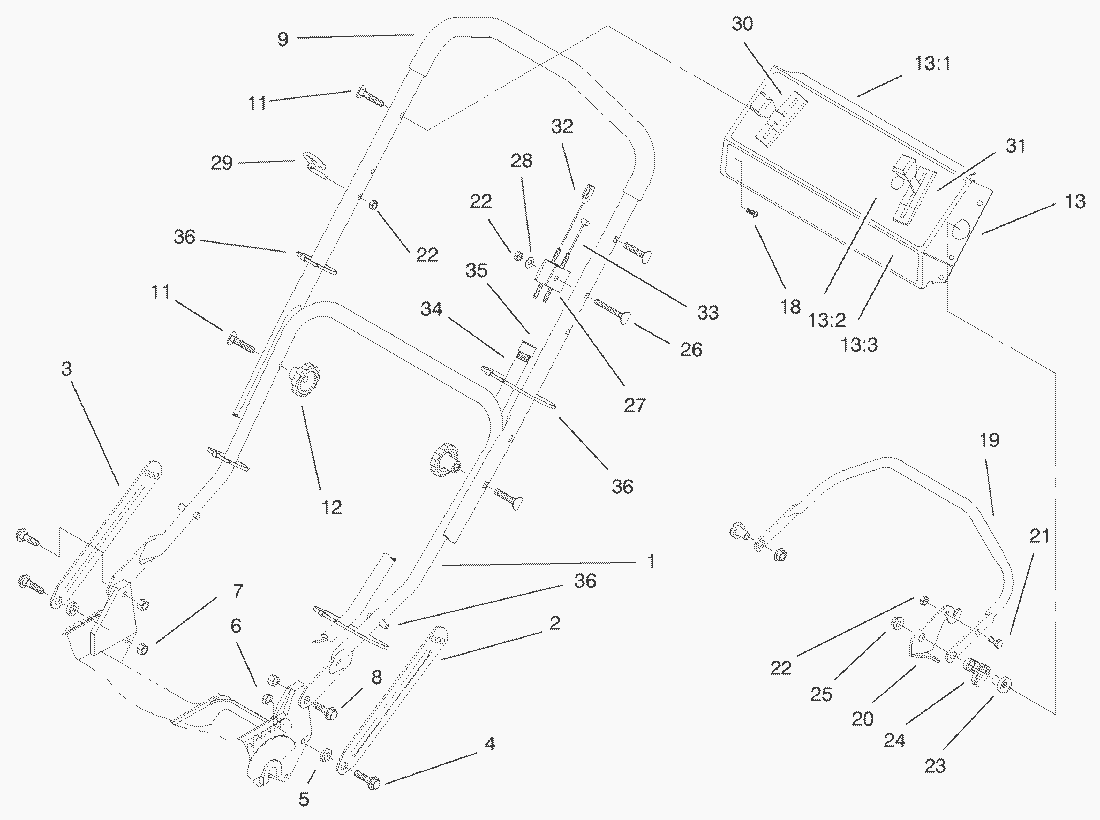

Lista de repuestos para Toro Roth / TORO Handle Assy.




Lista de repuestos


pos.descripciónNúmero de pieza
1Handle-Lower Asm.43-1362
2Latch-Handle L.H.84-8361
3Latch-Handle R.H.84-8401
4Screw-Shoulder27-7210
5Spacer-Handle Latch3-3287
6Nut-Lock3296-47
7Nut-Lock Nylon3296-72
8Screw-Shoulder27-7211
9Handle Asm.94-4922
11Screw-Handle92-2260
12DREHKNOPF19-4050
13Panel-Control98-9232
131Decal-Danger93-6655
132Decal-Instruction98-2020
133Decal-Panel, Toro92-7859
18Screw-Self Tapping92-9665
19Control Bar Assembly52-7430
20Lever-Control66-5351
21Screw-Hex Washer Hd.321-39
22Nut-Lock3296-73
23Support-Spacer49-1630
24HEBEL46-5520
25Nut-Flange, Nylon3296-74
26Screw-Handle92-2269
27Support-Cable46-6980
28Washer-Plain3256-1
29Guide-Rope86-9671
30Control-Speed76-2712
31Control-Throttle98-1501
32Cable-Brake76-4331
33Cable-Traction46-5481
34Cover-Control Cables46-6440
35Clip-Convoluted Tubing2412-50
36Tie Wrap3290-378
