Roth / TORO
>
Hand operated
>
Lawnmower
>
4-stroke
>
414/20805
>
200000001
>
HOC & Wheel Assy.

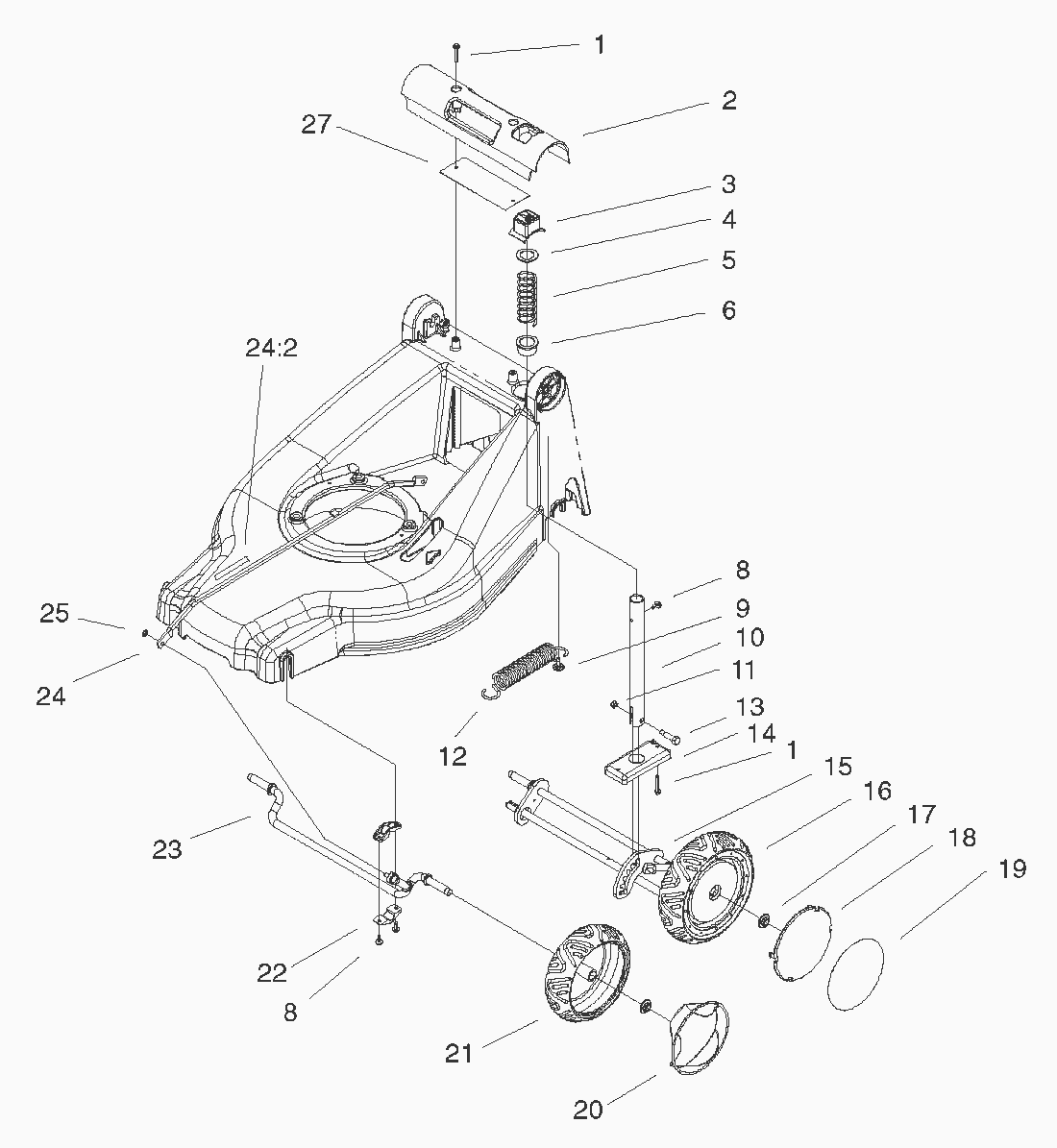

Lista de repuestos para Toro Roth / TORO HOC & Wheel Assy.
pos.
descripción
Número de pieza
1
Screw-HWH
100-4352
2
Handle-Deck
99-6487
3
Button-HOC
99-6480
4
Washer
88-7540
5
Spring-Compression, HOC
99-6481
6
Bushing-HOC
99-6483
8
Screw-Thread Forming
32144-1
9
SCHRAUBE
92-9698
10
Pipe-HOC
99-6458
11
Nut-Lock
3296-73
12
Spring-Extension, HOC
100-4384
13
Bolt-Shoulder
99-6459
14
Plate-Support, HOC
99-6460
15
Axle-Rear ASM
99-6478
16
Wheel ASM
100-1516
17
Nut-Lock, Flanged
100-4370
18
Cover-Smart Wheel
100-4366
19
Decal-Smart Wheel
100-9114
20
Cover-Wheel
95-6543
21
Wheel ASM
99-6470
22
Mount-Axle, Front
100-1500
23
Axle-Front ASM
99-6464
24
Rod-Decal ASM
100-9116
242
Decal-HOC
100-4355
25
Palnut
100-3939
27
Cover-Handle
100-4383-03
