volver a
>
Roth / TORO
>
Ride-On Mowers
>
Traktor
>
12-32 XL
>
390/71201
>
6900001
>

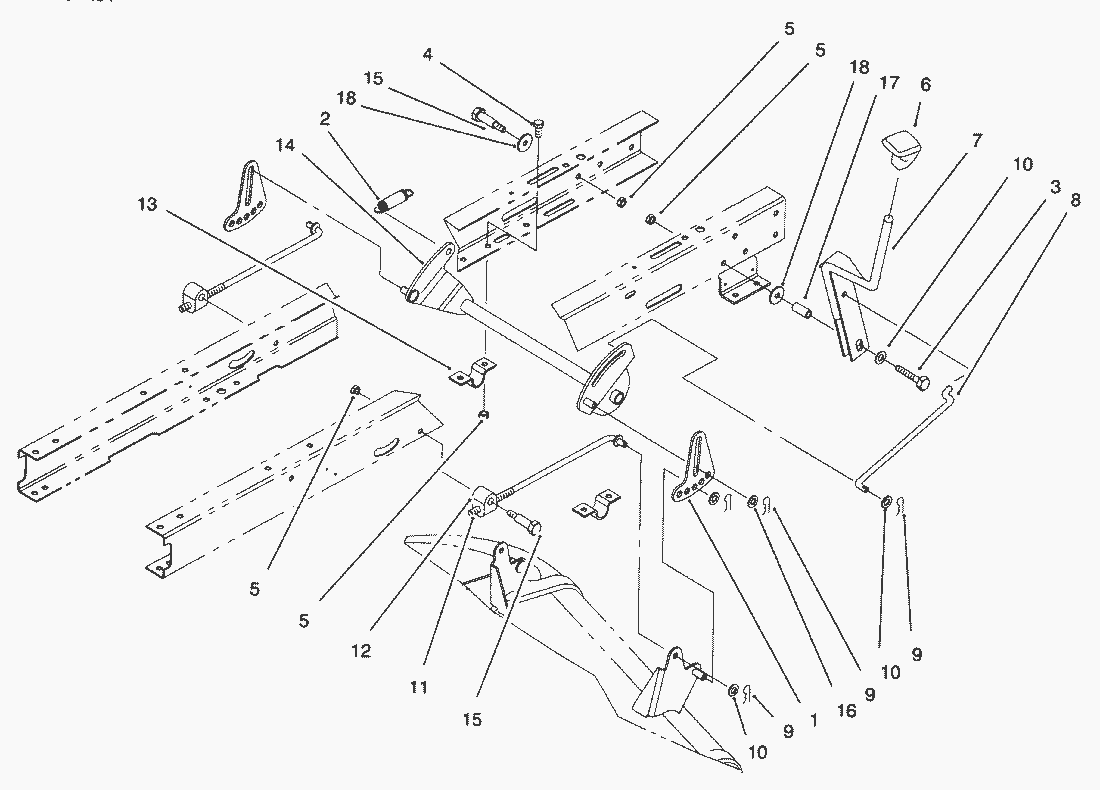

HOC Assy.
Lista de repuestos para Toro Roth / TORO HOC Assy.
pos.
descripción
Número de pieza
1
Link-Adjusting H.O.C.
88-5570
2
Spring-Extention
88-6460
3
Capscrew
322-9
4
Capscrew
322-3
5
MUTTER
3296-29
6
Knob-Control
94-5565
7
Lever-H.O.C.
93-3822
8
Link-H.O.C.
88-5900
9
Hair Pin Cotter
3290-307
10
Flat Washer
3256-24
11
Rod-Hanger Rear
88-5450
12
Trunnion-H.O.C. Rear
88-4230
13
Clamp-H.O.C. Pivot
88-4730
14
Pivot-H.O.C.
88-5110
15
Bolt-Shoulder
7-0030
16
Washer-Hardened
80-6990
17
Spacer
65-7210
18
Washer
5-4460
