> Roth / TORO > Hand operated > Lawnmower > 4-stroke SP > 494/20791 > 200000001 > Gasket Assy. Engine GTS 200 (only on: 20791)

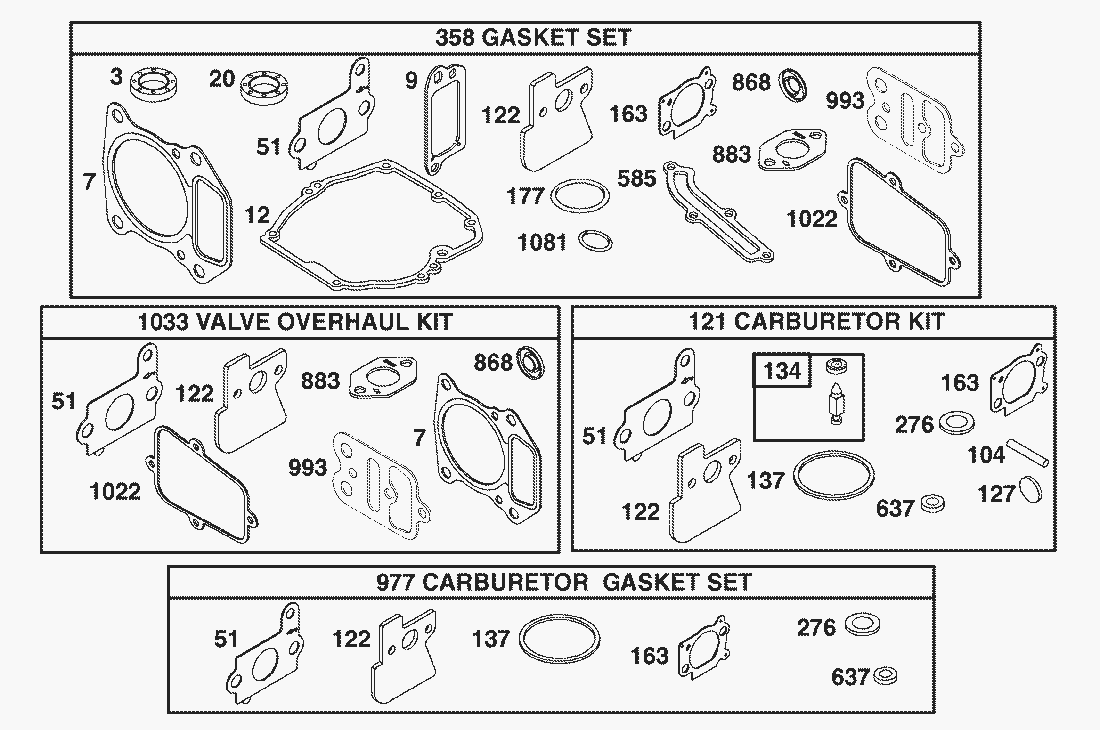

Lista de repuestos para Toro Roth / TORO Gasket Assy. Engine GTS 200 (only on: 20791)




Lista de repuestos


pos.descripciónNúmero de pieza
3Seal-Oil99-0912
7Gasket-Cylinder Head99-0930
9Gasket-Breather99-0913
12Gasket-Crankcase99-0953
20Seal-Oil99-0955
51Gasket-Intake99-0968
104Pin-Float Hinge99-0970
121Carburetor Kit100-5036
122Gasket-Intake99-0978
127
134Valve-Float (Includes Seat)77-8110
137
163Gasket-Air Cleaner99-0976
177Seal-O Ring99-0916
276Washer-Sealing100-5038
358Engine Overhaul Gasket Set100-5035
585Gasket-Breather99-0923
637Seal-Dust100-5037
868Seal-Valve99-0946
883Gasket-Exhaust99-0947
977Gasket Set-Carburetor100-5034
993Gasket-Plate99-0948
1022Gasket-Rocker Cover99-0907
1033Valve Overhaul Gasket Set100-5033
1081Seal-O Ring99-0916
