> Roth / TORO > Ride-On Mowers > Traktor > 13-38 XL > 391/71208 > 8900001 > Fuel Tank & Engine Pulley Assy.

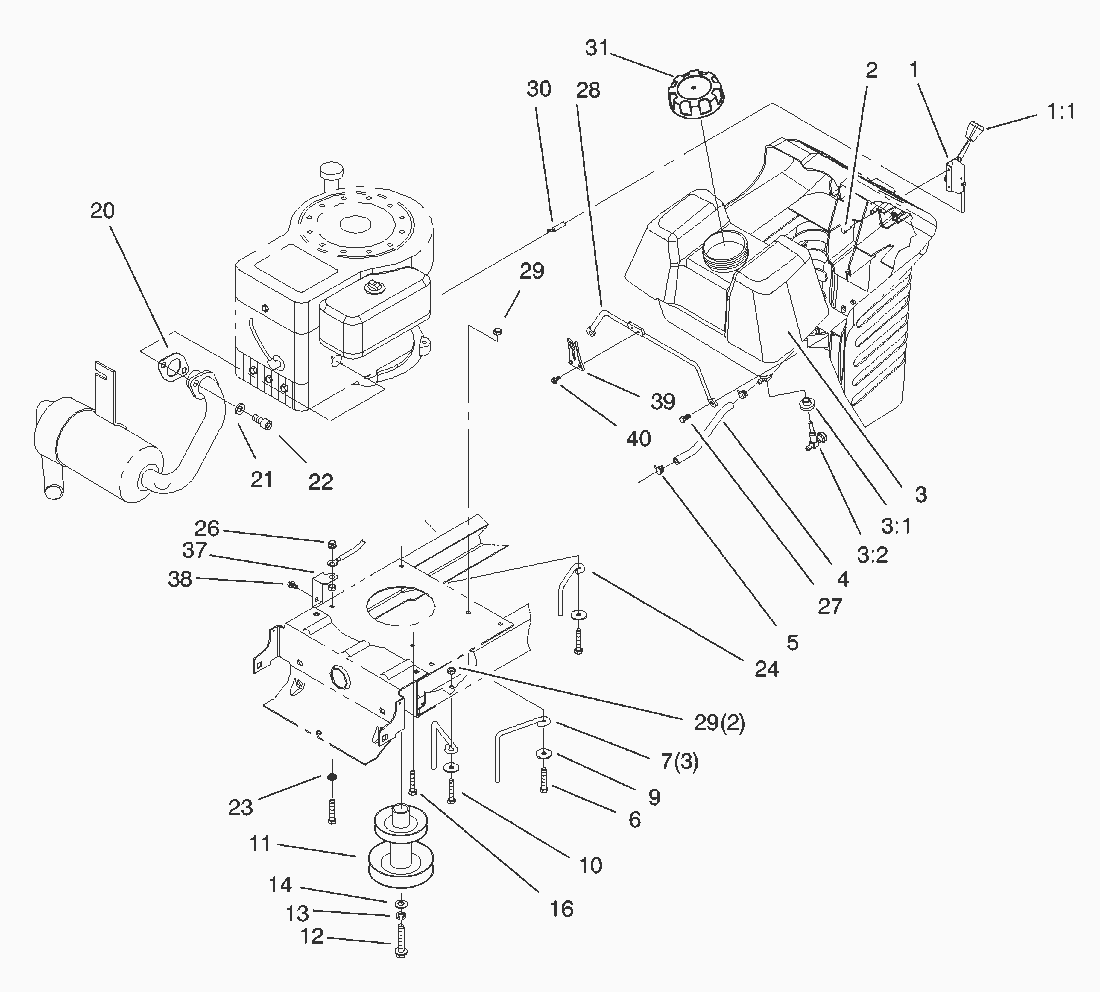

Lista de repuestos para Toro Roth / TORO Fuel Tank & Engine Pulley Assy.




Lista de repuestos


pos.descripciónNúmero de pieza
1Control-Throttle88-4340
11Knob-Control66-0120
2Screw Special27-0220
3Tank-Gas88-3880
31Bushing104047
32Valve104048
4Line-Fuel47-2963
5Clamp-Hose2412-98
6Capscrew322-9
7Guide-Belt93-3854
9Washer5-4460
10Hex Hd. Capscrew322-5
11Pulley-Engine94-1963
12Screw-Blade26-0671
13Washer-Lock3253-22
14Washer-Flat3256-25
16Screw9267154
20Gasket-Muffler88-4410
21Lockwasher3253-4
22Capscrew-Hex. Socket Hd.3274-10
23Lockwasher3255-8
24Guide-Belt R.H.93-3855
26Locknut32149-1
27Screw Special27-0220
28Rod-Gas Tank94-1952
29MUTTER3296-29
30Cable-Throttle88-4350
31Cap-Gas88-3980
37Bracket-Ground93-3809
38Screw-HWHTF9266714
39Latch-Hood94-1951
40Screw-Self Tapping32144-112
