> Roth / TORO > Hand operated > Lawnmower > 2-stroke SP > 237/22045 > 9900001 > Fuel Tank Assy.

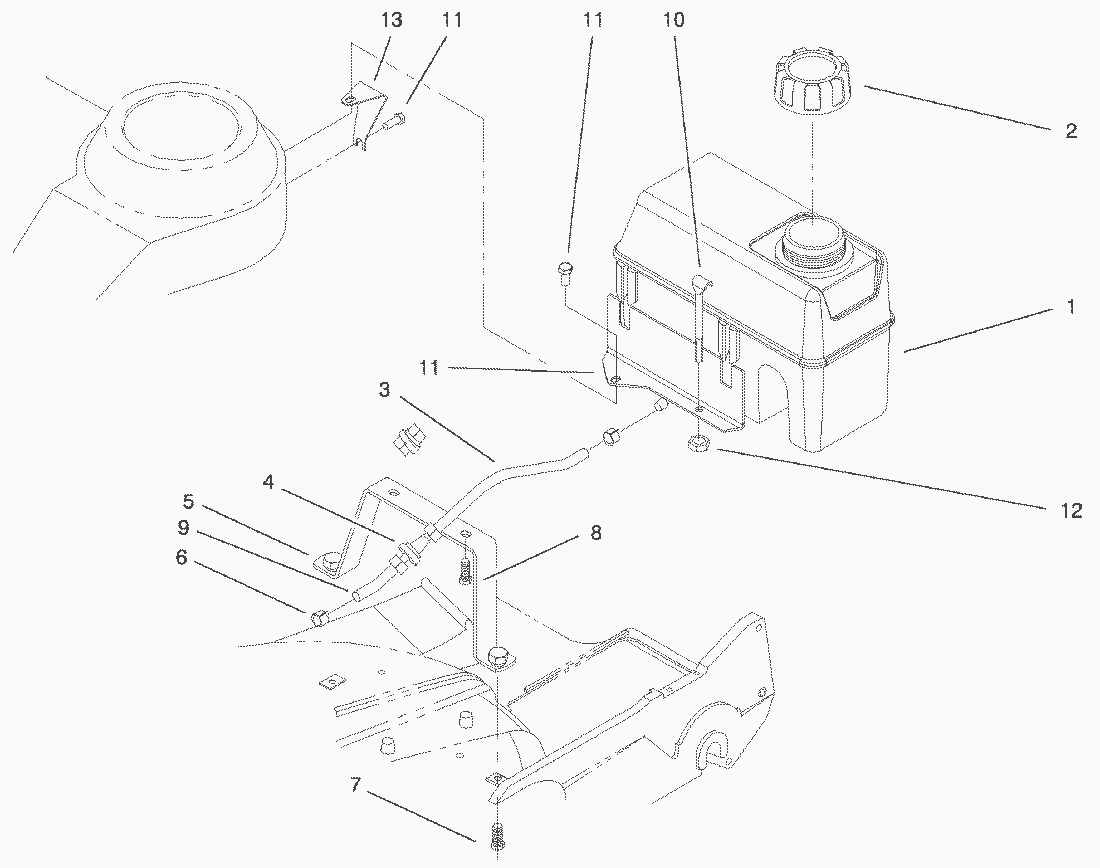

Lista de repuestos para Toro Roth / TORO Fuel Tank Assy.




Lista de repuestos


pos.descripciónNúmero de pieza
1Tank-Gas94-5827
2Cap-Gas93-7199
3Hose-Fuel 7.168-3633
4Filter-Fuel71-9280
5Tank Base Wa84-9160-03
6SCHLAUCHKLEMME2412-95
7Screw-Taptite w/Patch95-1727
8Screw-Handle46-8091
9Line-Fuel51-3211
10Retainer-Tank, Fuel77-2840
11Bracket-Tank74-2110-03
12MUTTER3296-42
13Sup-Tank Brkt77-0520-03
