volver a
>
Roth / TORO
>
Hand operated
>
Lawnmower
>
2-stroke SP
>
237/22045
>
7900001
>

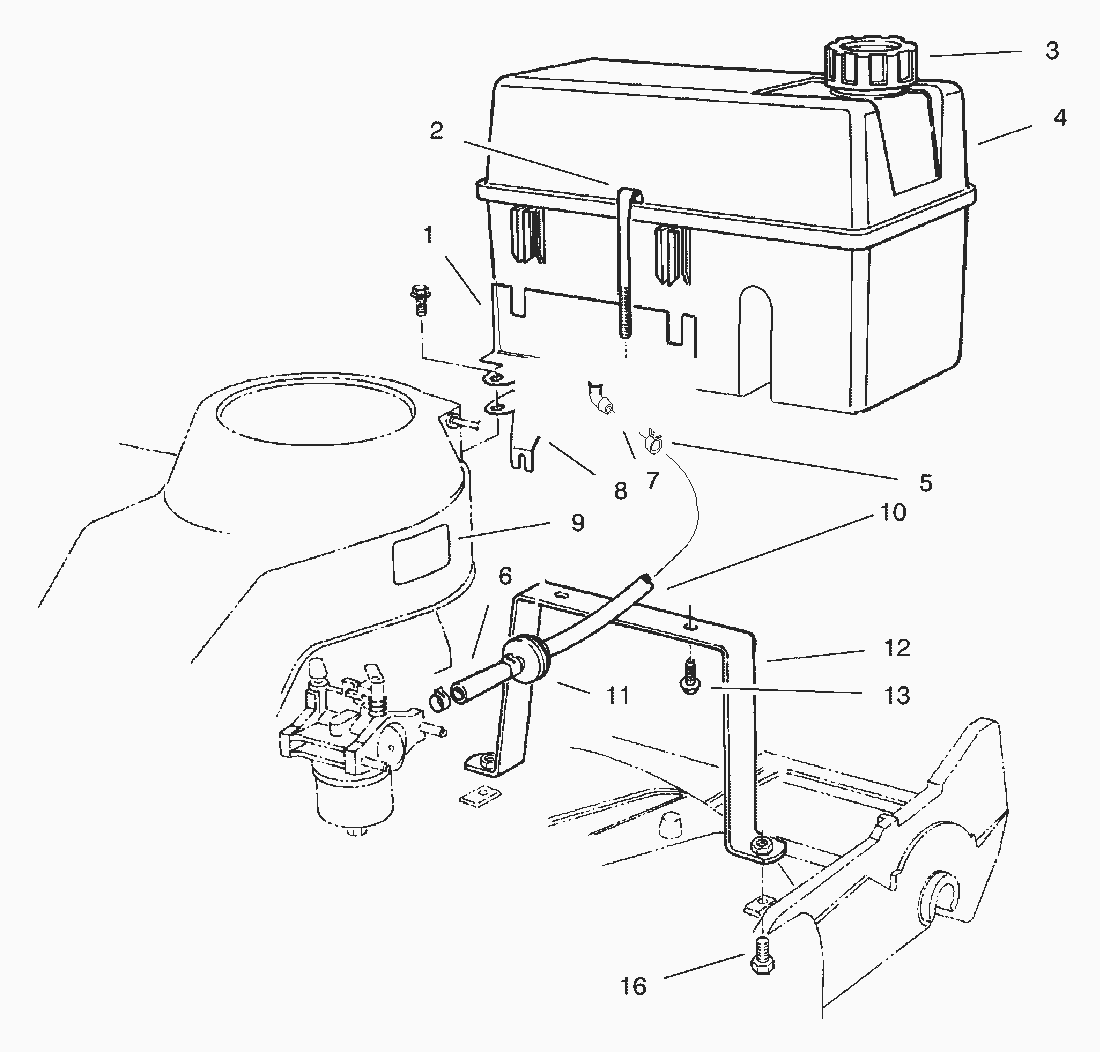

Fuel Tank Assy.
Lista de repuestos para Toro Roth / TORO Fuel Tank Assy.
pos.
descripción
Número de pieza
1
Bracket-Tank
74-2110
2
Retainer-Tank, Fuel
77-2840
3
Cap-Gas
93-7199
4
Tank-Gas
94-5827
5
SCHLAUCHKLEMME
2412-95
6
Hose-Fuel 7.1
68-3633
7
MUTTER
3296-42
8
Support-Bracket
77-0520
9
Decal-Fuel
93-6659
10
Line-Fuel
51-3211
11
Filter-Fuel
71-9280
12
Mount-Tank, Bottom
84-9160
13
Screw-Handle
46-8091
15
Retainer-Shield
84-8930
16
Screw-Cap Hex Hd.
323-7
