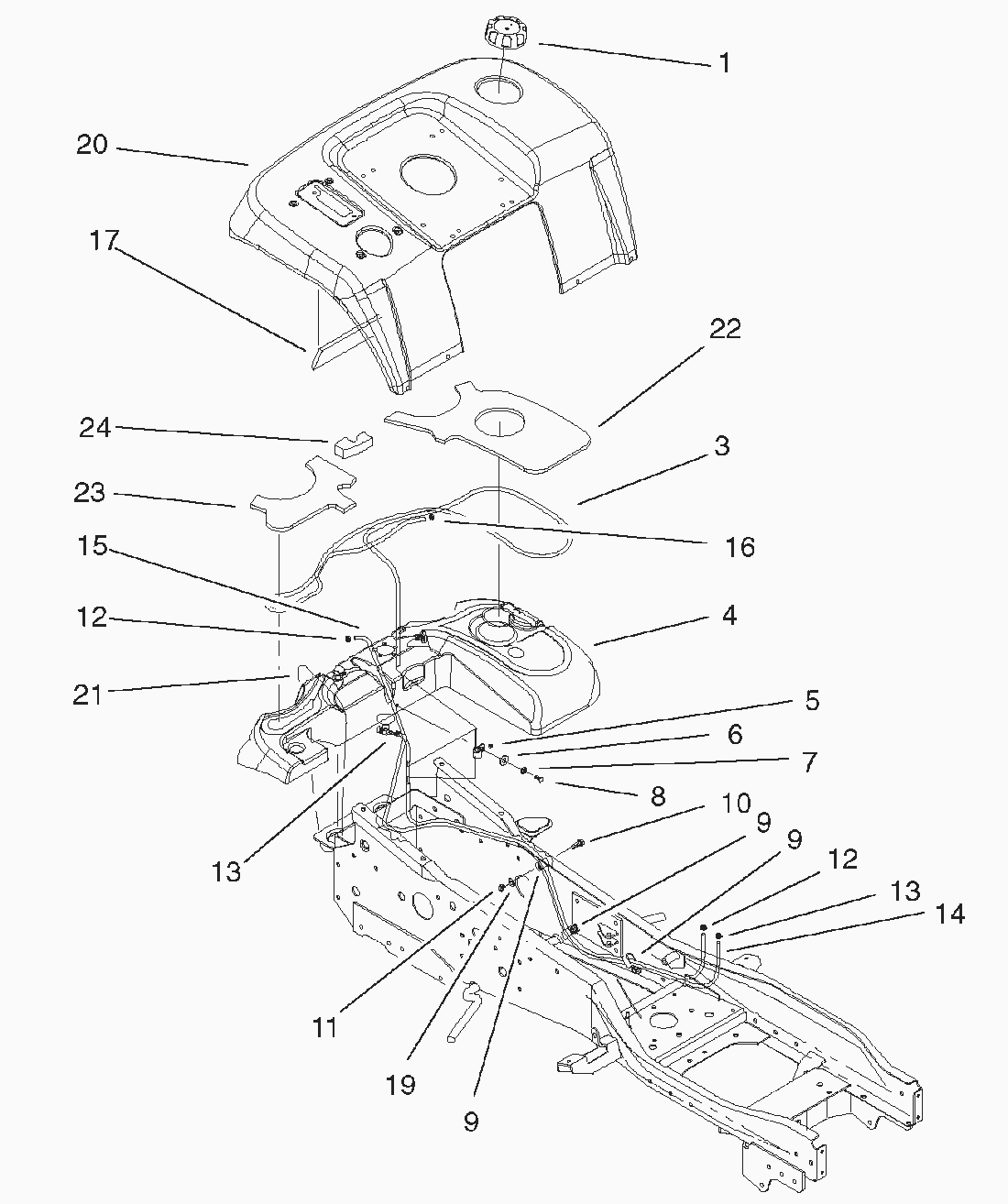

Lista de repuestos para Toro Roth / TORO Fender & Fuel System Assy.

pos.	descripción	Número de pieza
1	ASM-Gas Cap Diesel	95-4193
3	Hose-Vent (Service)	99-8553
4	Tank-Diesel Assy. (Service)	99-6142
5	Clamp-Tube	95-4187
6	Washer	3256-22
7	Lockwasher	3253-3
8	SCHRAUBE	321-3
9	Clamp-Tube (Only On: 73551, 73550)	98-1617
10	Capscrew	323-6
11	Locknut	3296-39
12	Clamp-Hose	2412-98
13	Clamp	2412-108
14	Hose-Fuel (Service)	99-9682
15	Hose-Fuel (Service)	99-9683
16	Clamp-Hose	94-8189
17	Foam-Tank Center	95-4157
19	Flat Washer	3256-24
20	Rear Body ASM	98-7208
21	Tie-Cable	99-5901
22	Foam-Tank	99-6145
23	Foam-Tank	99-6146
24	Foam-Tank Top	99-6887
