Lista de repuestos para Toro Roth / TORO Engine Model 122702-0182-01


Lista de repuestos 1
Lista de repuestos 2
Lista de repuestos 3
Lista de repuestos 4
Lista de repuestos 5


pos.descripciónNúmero de pieza
493386
280399
493387
298908
493390

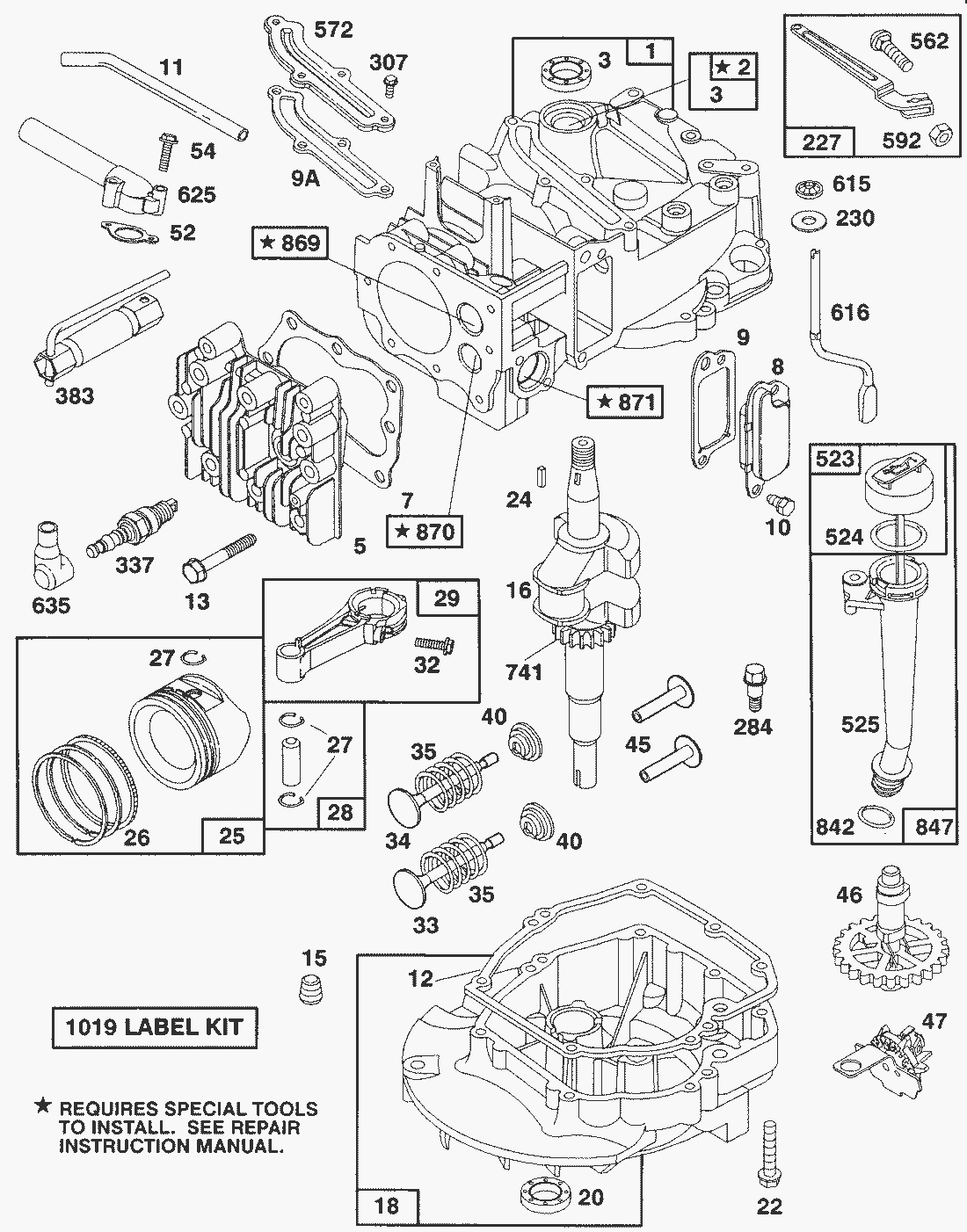

Lista de repuestos


pos.descripciónNúmero de pieza
1Cylinder Assembly493260
2Bushing-Cylinder Note: Requires special tools for installation.293708
3Seal-Oil393862
5Head-Cylinder213861
7Gasket-Cylinder Hd.272200
8Breather-Valve Chamber399717
9Gasket-Valve Cover271904
9Gasket-Baffle Plate272238
10Screw-Breather Mounting Sem94222
11Tube-Breather231685
12Gasket-Crankcase272198
13Screw-Cylinder Hd.94547
15Plug-Hex. Socket93418
16Crankshaft Note: Order 94388 For Timing Gear Key493429
18Sump-Engine493279
20Seal-Oil399781
22Screw-Sump Mtg. Sem94220
24Key-Flywheel222698
25Piston Assy.-Standard493262
Piston Assy.-.010 O.S.493385
26Ring Set-Std. Piston493261
Ring Set-.010 O.S. Piston493388
Ring Set-.020 O.S. Piston493389
27Lock, Piston Pin26026
28Pin Assy., Piston, Std.298909
29Rod Assembly-Connecting Note: For Connecting Rod with .020 undersize Crankpin Bearing-Order No. 490743490566
32Screw-Connecting Rod94405
33Valve-Exhaust262651
34Valve-Intake262652
35Spring-Valve262224
40Retainer, Valve Spring93312
45Tappet-Valve262204
46Gear-Cam492828
47Oil Slinger Gear and Brkt.493737
52Gasket-Intake Elbow272199
54Screw-Intake Elbow Mtg.94526
227Lever Assembly-Governor492349
230Washer-Governor Crank67072
284Screw-Hex Head94511
307Screw-Hex Head94515
337Plug-Spark (Resistor Type-1-7/8 high, 47 M.M.)(Model No. 38566 only)802592
383Wrench-Spark Plug89838
523Cap with Dipstick-Oil Filler493950
524Seal-Filler Tube280393
525Tube-Oil Filler493952
562Bolt, Governor Lever92613
572Baffle-Cylinder224328
592Nut-Hex.-10-24231082
615Pushnut (Governor Crank)94474
616Crank-Governor262578
625Tube-Fuel Intake492717
635Elbow-Spark Plug66538
741Gear-Timing262598
842Seal-O-Ring280966
847Oil Fill Tube and Dipstick Assy.493459
869Seat-Intake Valve (Standard)213512
870Seat-Exhaust Valve (Standard)213513
871Guide-Exhaust Valve Note: 63709 Guide-Intake Valve See Repair Instruction Manual262001
1019Label Kit494256
Lista de repuestos


pos.descripciónNúmero de pieza
95Screw-Throttle Valve Mounting Sem94098
98Screw-Idle Adjustment398185
98Screw Assy.-Speed Adj.493280
104Pin-Float Hinge231371
108Valve-Choke223471
116
117
118Valve and Spring-Needle493765
124Screw-Carburetor Mtg.94525
125Carburetor Assembly494216
127
130Valve-Throttle223470
131Shaft and Lever-Throttle493267
133Float Assy.-Carburetor398187
134Valve-Inlet (Includes Seat)398188
137
141Shaft-Choke494218
163Gasket-Air Cleaner272296
201Link-Governor262579
209Spring-Governor262661
305Screw-Hex Head Sem94513
529Grommet-Breather280943
617Seal-Fuel Intake Tube270344
618Spring-Choke Return262749
620Bracket Assembly Carburetor Control493894
621Switch-Stop396847
634
670Spacer-Carburetor Bracket493823
955Screw-Bowl Mtg.493763
966Base-Air Cleaner492363
967Filter-Air491588
968Cover-Air Cleaner281069
969Screw-Cover Mtg.94120
971Screw-Air Cleaner94269
971Screw-Backplate to Carburetor94121
975Bowl Assembly-Carburetor493640
Lista de repuestos


pos.descripciónNúmero de pieza
23Flywheel-Magneto492177
55Housing-Rewind Starter492831
56Pulley-Rewind Starter492832
57Spring-Rewind Starter262594
60Grip-Starter Rope393152
69Washer-Rewind Starter280973
69Washer-Rewind Starter224322
304Housing-Blower493294
332Nut-Flywheel92284
333Armature-Magneto802574
334Screw, Breaker Arm Mtg. Sem93381
356Wire-Ground398808
363Flywheel Puller (Optional Accessory)19069
455Cup-Starter224250
456Retainer-Rewind Starter224321
459Pawl-Starter492833
461Pin-Starter262626
515Spring-Pawl262556
515Spring-Torsion262625
608Starter Assy.-Rewind493295
851Terminal-Ignition Cable221798
1016Cover-Rewind Starter1224278

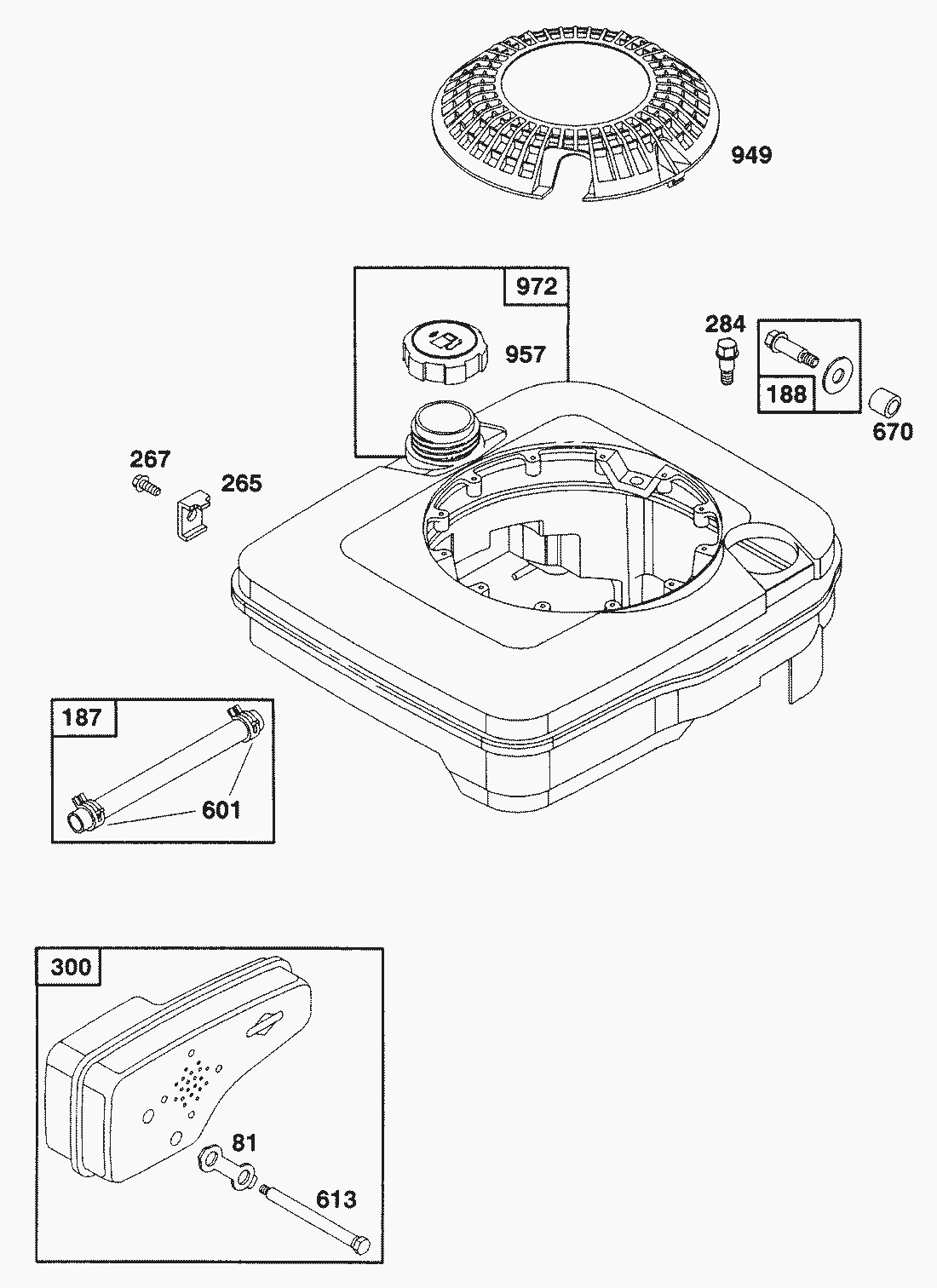

Lista de repuestos


pos.descripciónNúmero de pieza
81Lock-Muffler Screw223664
187Hose-Fuel (Cut To Suit)492790
188Screw-Tank Mounting (Includes Washer)398540
265Clamp, Casing221535
267Screw-Clamp Mtg.94204
300Muffler-Exhaust490547
601Clamp-Hose (For 1 /2 O. D. Hose)93807
613Screw-Muffler Mtg.94231
670Spacer-Fuel Tank280512
949Guard-Finger281136
957Cap Assy-Fuel397974
972Tank Assembly-Fuel494340
Lista de repuestos


pos.descripciónNúmero de pieza
121Carburetor Overhaul Kit493762
358Gasket Set493263
977Gasket Set-Carburetor490937
