Lista de repuestos para Toro Roth / TORO Engine GTS 200

pos.	descripción	Número de pieza

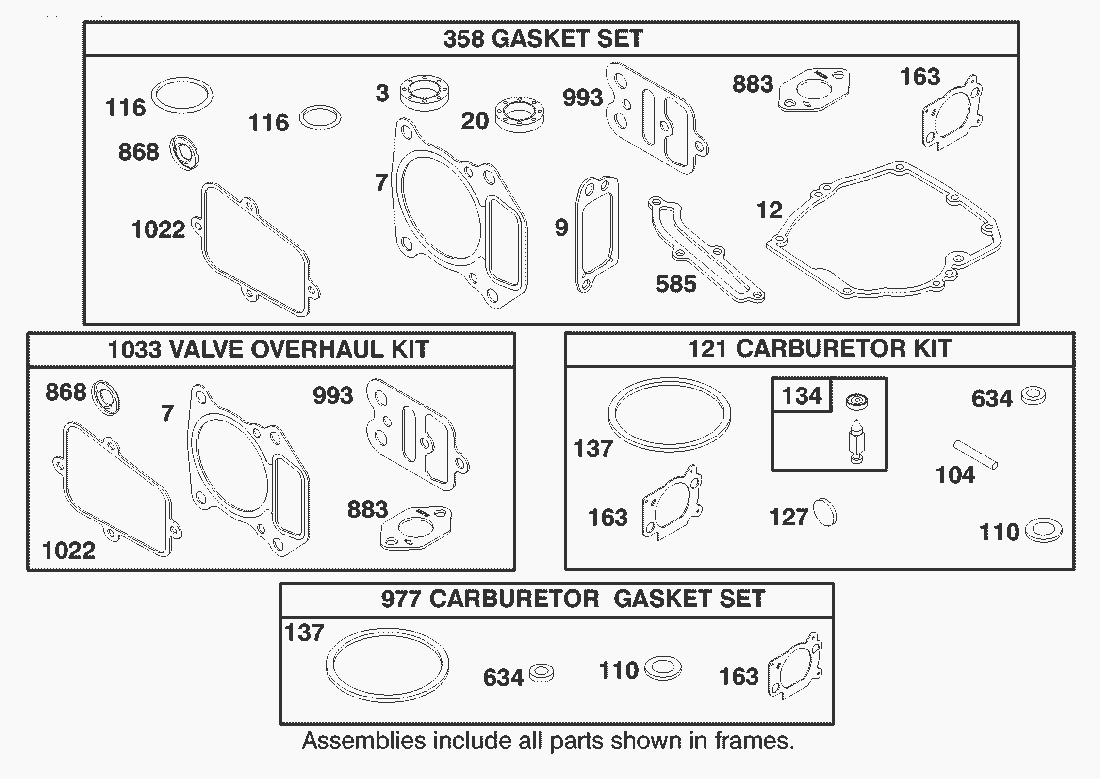

121	Carburetor Kit	99-0901
163	Jet-Main (Std.) Note: 99-1041 Jet-Main(High Altitude) 1	99-0971
358	Gasket Set	99-0902
977	Gasket Set-Carburetor	99-0903
1033	Gasket Set-Valve Overhaul	99-0904

pos.	descripción	Número de pieza
4	Sump-Engine	99-0952
12	Gasket-Crankcase	99-0953
15	Plug-Oil Drain	99-0954
16	Crankshaft	98-9214
20	Seal-Oil	99-0955
22	Screw-Hex. Screw-Hex. (One (1) Used in Hole Nearest Breather)	99-0956
24	Key-Flywheel	99-0957
25	Piston Assy. (Standard)	99-0958
26	Ring Set (Standard)	99-0959
27	Lock-Piston Pin	99-0960
28	Pin-Piston (Standard)	99-0961
29	Rod-Connecting	99-0962
32	Screw-Connecting Rod	99-0963
43	Governor/Oil Slinger	99-0964
46	Gear-Cam	99-0965
146	Key-Timing	99-0966
741	Gear-Timing	99-0967

pos.	descripción	Número de pieza
95	Screw-Slotted	99-0969
104	Pin-Float Hinge	99-0970
110
117	Jet-Main (Std.) Note: 99-1041 Jet-Main(High Altitude) 1	99-0971
124	Screw-Shoulder	99-0972
125	Carburetor	99-0973
127
130	Valve-Throttle	99-0974
131	Shaft-Throttle	99-0975
133	Float-Carburetor	77-8170
134	Valve-Float (Includes Seat)	77-8110
137
163	Gasket-Air Cleaner	99-0976
634
975	Bowl-Float	99-0977
