Lista de repuestos para Toro Roth / TORO Engine GTS-150 77-9130

Lista de repuestos 1

Lista de repuestos 2

Lista de repuestos 3

Lista de repuestos 4

Lista de repuestos 5

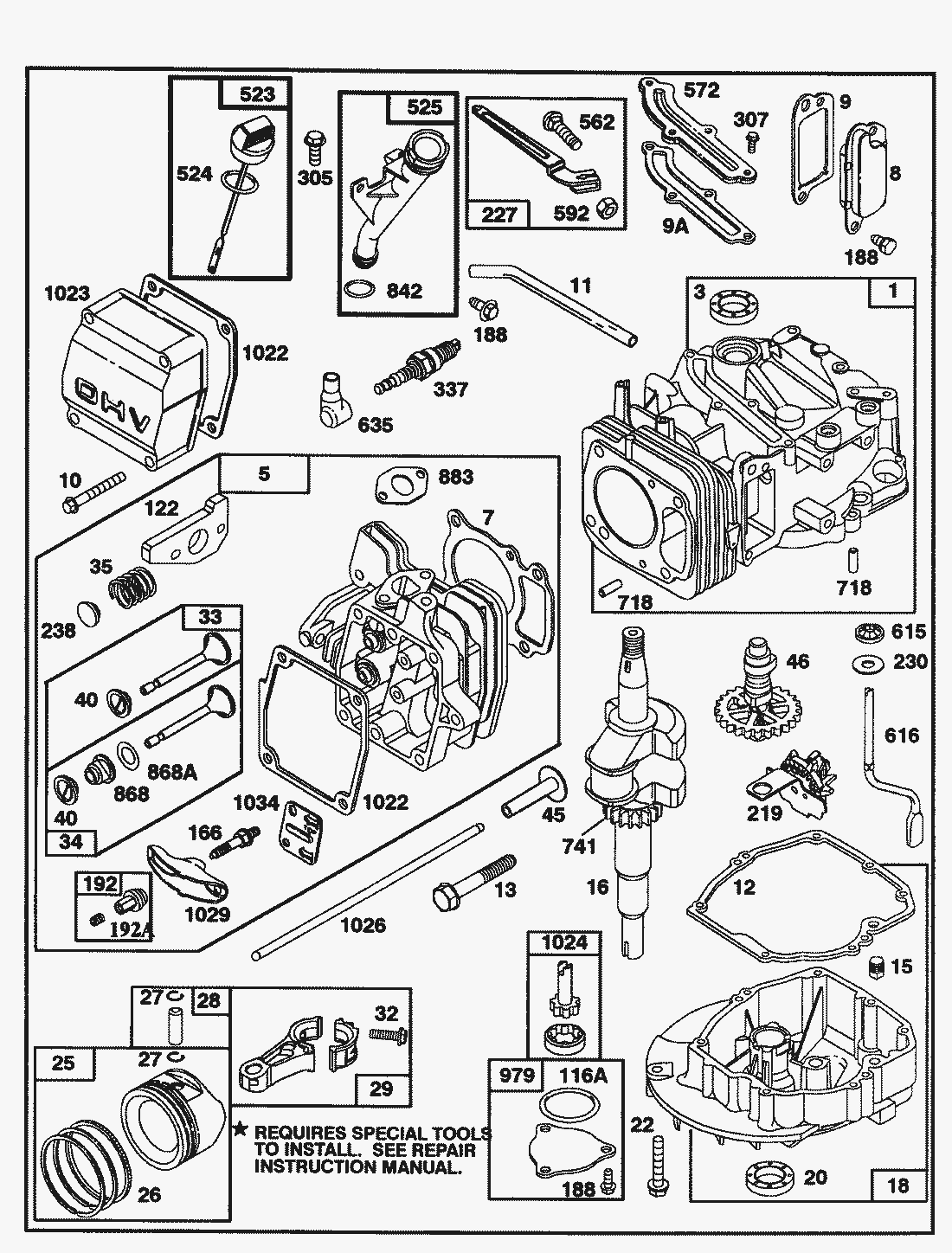

pos.	descripción	Número de pieza
1	Cylinder Assy.	77-7590
3	Seal-Oil	77-9060
5	Head-Cylinder	77-7730
7	Gasket-Cylinder Head	77-7740
8	Breather-Valve	77-7430
9	Gasket-Valve Cover	77-7440
9	Gasket-Breather	77-7410
10	Screw-Hex. Head (valve cover)	77-7360
11	Tube-Breather	77-7350
12	Gasket-Engine Base	77-7550
13	Screw-Cylinder Head	77-7630
15	Plug-Oil Drain	77-7580
16	Crankshaft Note: Order Part No 77-7540 For Timing Gear Key	77-7520
18	Base-Engine	77-7560
20	Seal-Oil	77-7570
22	Screw-Engine Base Note: Order Prt No.77-9080 For Hole Nearest Breather	77-9070
25	Piston Assy. (Std.)	77-7690
26	Ring Set (Std.)	77-7700
27	Lock-Piston Pin	77-7710
28	Pin-Piston (Std)	77-7720
29	Rod-Connecting	77-7670
32	Screw-Connecting Rod	77-7680
33	Valve-Exhaust	77-7860
34	Valve-Intake	77-7880
35	Spring-Valve	77-7810
40	Retainer-Spring	77-7870
45	Tappet-Valve	77-7610
46	Gear-Cam	77-7490
116	Seal-O Ring	77-7660
122	Adapter Assy.	77-7820
166	Stud-Rocker Arm	77-7780
188	Screw-Sem (Breather Mounting, pump cover)	77-7450
192	Nut-Hex Special	77-7910
192	Screw-Set	77-9090
219	Gear-Governor	77-7500
227	Lever.-Governor	77-7370
230	Washer-Thrust	77-7470
238	Cap-Valve	77-7800
305	Screw-Hex. Head	77-8310
307	Screw-Sem (breather cover)	77-7420
337	Plug-Spark	77-7330
523	Dipstick-Oil	77-7260
524	Seal-Intake Elbow	77-7270
525	Tube-Oil Filler	77-7290
562	Bolt-Governor Lever	77-7380
572	Baffle-Cylinder	77-7400
592	Nut-Hex.	77-7390
615	Fastener	77-7480
616	Crank-Governor	77-7460
635	Elbow-Spark Plug	77-7340
718	Dowel-Sleeve	77-7600
741	Gear-Timing	77-7530
842	Seal-O Ring	77-7300
868	Seal Assy.-Valve	77-7890
868	Gasket-Valve	77-7900
883	Gasket-Exhausts	77-7760
979	Cover-Oil Pump	77-7650
1022	Gasket-Rocker Cover	77-7320
1023	Cover-Valve	77-7060
1024	Pump-Oil	77-7640
1026	Rod-Push	77-7620
1029	Arm-VLV Rocker	77-7790
1034	Guide-Push Rod	77-7770

pos.	descripción	Número de pieza
95	Screw-Round Head	77-8090
98	Screw-Idle Adj.	77-8240
98	Screw Assy-Speed Adj.	77-8020
104	Pin-Float Hinge	77-8180
108	Valve-Choke	77-8070
116	Washer-Fuel Bowl	77-8210
117	Jet-Needle Valve	77-8060
118	Valve & Kit-Needle	77-8230
124	Screw-Hex Head (carburetor mounting)	77-7970
125	Carburetor Assy	77-8050
127	Plug-Welch	77-8100
130	Valve-Throttle	77-8080
131	Shaft-Throttle	77-8160
133	Float-Carburetor	77-8170
134	Valve-Float (Includes Seat)	77-8110
136	Bowl-Fuel	77-7240
137	Gasket-Fuel Bowl	77-8200
141	Shaft-Choke	77-8130
147	Adapter-Jet Note: For High Altitude Jet, Order Part No. 77-9000	77-8120
163	Gasket-Air Cleaner	77-7960
201	Link-Governor	77-7980
209	Spring-Governor	77-7990
529	Tube-Breather	77-8030
535	Element-Filter	77-7950
618	Spring-Return	77-8140
620	Bracket-Carburetor	77-8000
621	Switch-Stop	77-8010
634	Washer-Seal	77-8150
955	Screw-Hex Head	77-8220
966	Base Air Cleaner	77-7940
968	Cover-Air Cover	77-7040
969	Screw-Air Cleaner	77-7920
971	Screw-Air Cleaner	77-7930
975	Bowl Assy.-Carburetor	77-8190
1011	Tube-Vent	77-8040
1039	Limiter-Float	77-7250

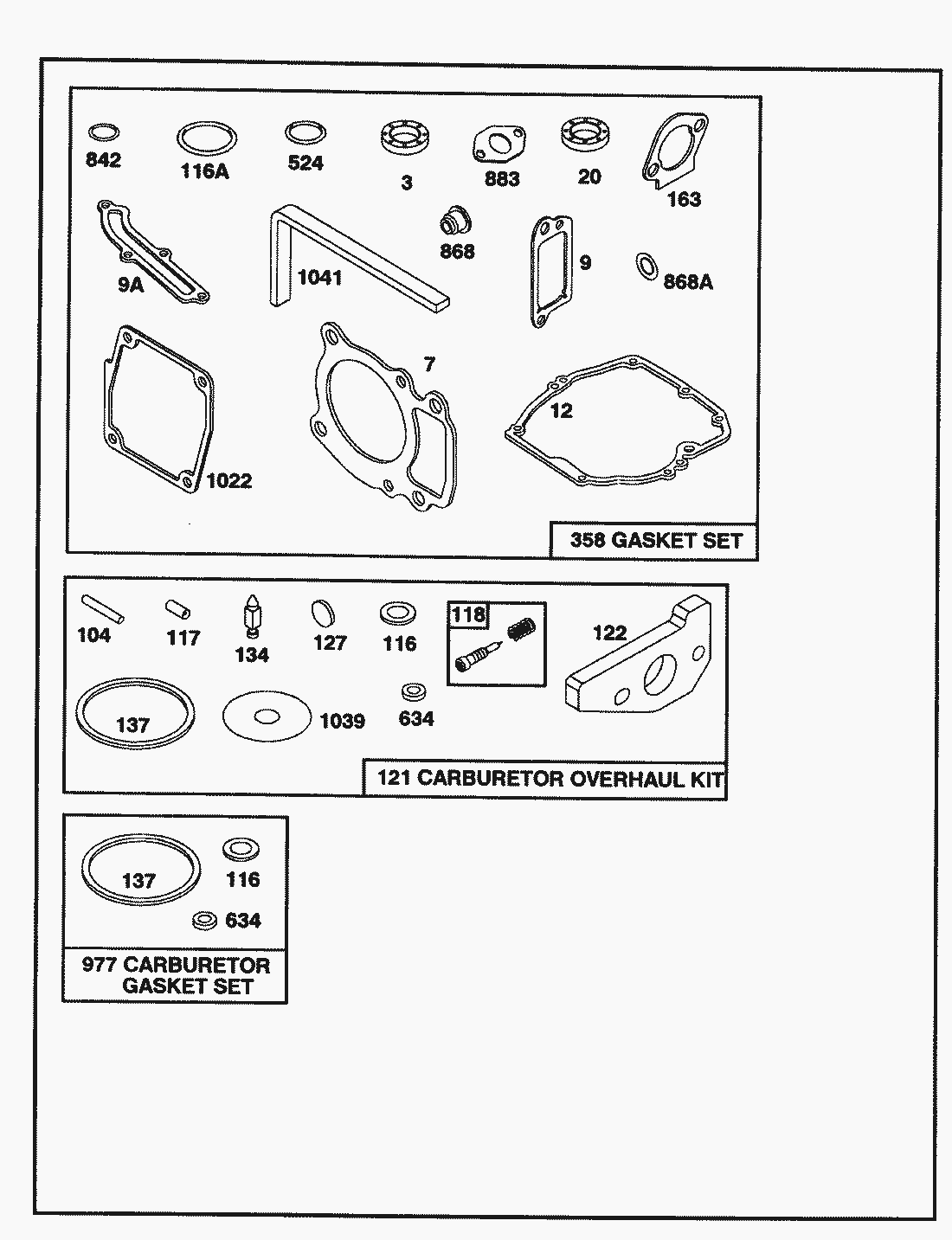

pos.	descripción	Número de pieza
121	Overhaul Kit-Carburetor	77-8920
358	Gasket Set	77-8900
977	Gasket Set-Carburetor	77-8930
	Engine-Complete	77-8950
	High Altitude Jet	77-9000

pos.	descripción	Número de pieza
23	Flywheel-Magneto	77-8330
24	Key-Flywheel	77-8340
37	Guard-Flywheel	77-7190
55	Housing-Rewind Starter	77-8460
56	Pulley-Rewind Starter	77-8560
58	Spool-Starter Rope (Cut To Suit)	77-8480
59	Insert-Starter Grip	77-7210
60	Grip-Starter Rope	77-8510
65	Screw-Hex. Head	77-8300
265	Clamp-Casing	77-8280
267	Screw-Hex Head	77-8290
304	Housing-Blower	77-8270
332	Nut-Hex	77-8360
333	Armature-Magneto	77-8420
334	Screw-Sem	77-8440
356	Wire-Ground	77-8400
455	Cup-Starter	77-8350
456	Retainer-Spring	77-8470
459	Pawl & Spring Ratchet	77-8530
461	Screw-Rewind Starter	77-8490
515	Spring-Retainer	77-8500
608	Starter Assy-Rewind	77-8450
718	Dowel-Sleeve	77-8550
851	Terminal-Spark Plug	77-8430
980	Bracket-Blower Housing.	77-7140
1002	Grommet	77-7180
1016	Cover-Pulley	77-8570

pos.	descripción	Número de pieza
180	Tank Assy-Fuel	77-8580
182	Bracket-Fuel Tank	77-7170
187	Hose-Fuel (Cut To Suit)	77-8620
300	Muffler-Exhaust	77-8640
346	Screw-Self Tapping (muffler guard)	77-8650
346	Screw-Arrester Mtg.	77-9050
601	Clamp-CL Pipe	77-8630
670	Spacer-Fuel Tank (Incl. 2)	77-9030
674	Screw-Tank Mtg.	77-8600
832	Guard-Muffler	77-8660
994	Arrester-Spark	77-9040
1041	Seal-Foam	77-8590
