Lista de repuestos para Toro Roth / TORO Engine Engine GTS 150

pos.	descripción	Número de pieza
	Nut-Hex Special	77-7910

pos.	descripción	Número de pieza
12	Gasket-Engine Base	77-7550
15	Plug-Oil Drain	77-7580
16	Crankshaft Note: Order Part No 77-7540 For Timing Gear Key	77-7510
18	Base-Engine	77-7560
20	Seal-Oil	77-7570
22	Screw-Engine Base Note: Order Prt No.77-9080 For Hole Nearest Breather	77-9070
25	Piston Assy. (Std.)	77-7690
26	Ring Set (Std.)	77-7700
27	Lock-Piston Pin	77-7710
28	Pin-Piston (Std)	77-7720
29	Screw-Cylinder Head	77-7630
32	Screw-Connecting Rod	77-7680
46	Gear-Cam	77-7490
116	Seal-O Ring	77-7660
188	Screw-Sem (Breather Mounting, pump cover)	77-7450
219	Gear-Governor	77-7500
227	Lever.-Governor	77-7370
230	Washer-Thrust	77-7470
305	Screw-Hex. Head	77-8310
523	Dipstick-Oil	77-7260
524	Seal-Intake Elbow	77-7270
525	Tube-Oil Filler	77-7280
562	Bolt-Governor Lever	77-7380
592	Nut-Hex.	77-7390
615	Fastener	77-7480
616	Crank-Governor	77-7460
741	Gear-Timing	77-7530
842	Seal-O Ring	77-7300
979	Cover-Oil Pump	77-7650
1024	Pump-Oil	77-7640

pos.	descripción	Número de pieza
300	Muffler-Exhaust	77-8640
346	Screw-Self Tapping (muffler guard)	77-8650
346	Screw-Arrester Mtg.	77-9050
832	Guard-Muffler	77-9290
994	Arrester-Spark	77-9040

pos.	descripción	Número de pieza
95	Screw-Round Head	77-8090
98	Screw-Idle Adj.	77-8240
104	Pin-Float Hinge	77-8180
108	Valve-Choke	77-8070
116	Washer-Fuel Bowl	77-8210
118	Valve & Kit-Needle	77-8230
124	Screw-Hex Head (carburetor mounting)	77-7970
125	Carburetor Assy	77-8050
127	Plug-Welch	77-8100
130	Valve-Throttle	77-8080
131	Shaft-Throttle	77-8160
133	Float-Carburetor	77-8170
134	Valve-Float (Includes Seat)	77-8110
136	Bowl-Fuel	77-7240
137	Gasket-Fuel Bowl	77-8200
141	Shaft-Choke	77-8130
147	Adapter-Jet Note: For High Altitude Jet, Order Part No. 77-9000	77-8120
634	Washer-Seal	77-8150
955	Screw-Hex Head	77-8220
975	Bowl Assy.-Carburetor	77-8190
1011	Tube-Vent	77-8040
1039	Limiter-Float	77-7250

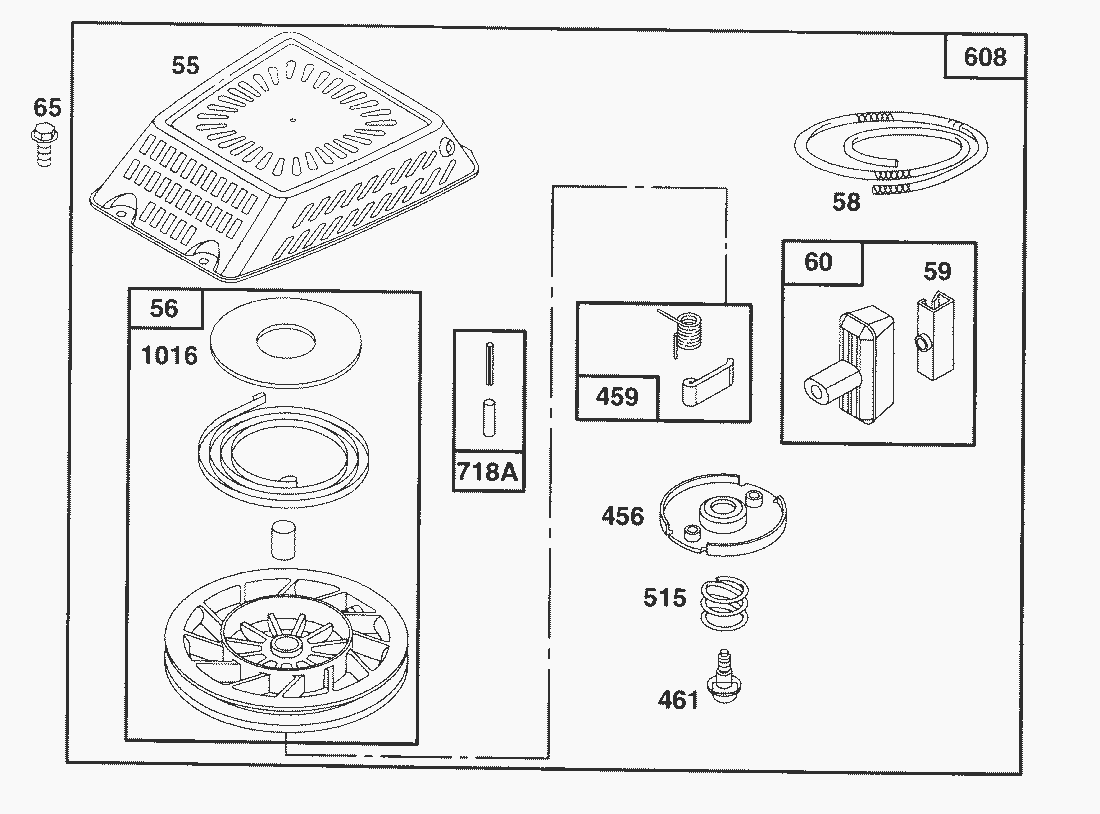

pos.	descripción	Número de pieza
55	Housing-Rewind Starter	77-8460
56	Pulley-Rewind Starter	77-9270
58	Spool-Starter Rope (Cut To Suit)	77-8480
59	Insert-Starter Grip	77-7210
60	Handle-Rewind Starter	77-8520
65	Screw-Hex. Head	77-8300
456	Retainer-Spring	77-8470
459	Pawl & Spring Ratchet	77-8530
461	Screw-Rewind Starter	77-8490
515	Spring-Retainer	77-8500
608	Starter Assy-Rewind	77-8450
718	Dowel-Sleeve	77-8550
1016	Cover-Pulley	77-8570
