> Roth / TORO > Ride-On Mowers > Rider > 12-32 > 375/70084 > 8900001 > Engine B&S Model

Lista de repuestos para Toro Roth / TORO Engine B&S Model


Lista de repuestos 1
Lista de repuestos 2
Lista de repuestos 3
Lista de repuestos 4
Lista de repuestos 5
Lista de repuestos 6


pos.descripciónNúmero de pieza
271916
Lista de repuestos


pos.descripciónNúmero de pieza
50Carburetor-Elbow213819
51Gasket-Carb (Carb to Elbow)272465
51Gasket-Carburetor Mtg.272554
53Stud-Carb Mtg94637
93Bushing-Throttle281346
94Valve-Needle498030
95Screw-Throttle Valve Mounting Sem94098
98Screw-ldle Speed495800
104Pin-Float Hinge231789
105Valve Assy.-Inlet Needle231855
106Inlet Valve Seat231854
108Valve-Choke224667
108Valve-Choke224540
123Screw-Elbow Mtg.94913
125Carburetor Assembly498027
127
130Valve-Throttle224539
131Shaft and Lever-Throttle494379
133Float-Carburetor494381
137Gasket-Float Bowl281165
138Washer-Float Bowl Screw281164
141Shaft Kit-Choke (Manual)495097
141Shaft and Lever-Choke495931
142Nozzle-Carburetor497566
Nozzle-Carburetor (High Alt.)497567
186Elbow-Fuel Pipe493496
634Seal-Spring Assembly494453
634Seal-Spring Assembly494455
950Screw-Fuel Bowl94642
965Locknut-Air Cleaner Mtg.94010
975Bowl Assy-Carb494378
987Seal-Throttle Shaft281166
1091Cap-Limiter281364
Lista de repuestos


pos.descripciónNúmero de pieza
171Nut-Air Cleaner Mtg281051
224Screw-SternantriebêHex.94905
284Screw Hex. Head94704
300Muffler-Exhaust491413
305Screw-Hex. Washer Hd.94786
346Screw-Hex. Head94896
445Cartridge-Air Cleaner496894
467Knob-Air Cleaner493903
535Element-Air Cleaner272403
537O-Ring-Air Cleaner281106
613Screw-Hex. Hd.93927
646Brace-Air Cleaner224546
676Deflector-Exhaust (Direct)396903
663Screw-Clamp Mtg.94620
725Shield-Muffler223023
872Cover-Air Cleaner281361
875Body-Air Cleaner494237
883Gasket-Exhaust Pipe272293
Lista de repuestos


pos.descripciónNúmero de pieza
182Bracket-Fuel Tank (R.H.)223925
182Bracket-Tank Mounting (L.H,)498194
188Screw-Sem94480
201Link-Governor262767
209Spring-Governor260871
216Link-Choke262766
222Plate-Governor Control495611
232Spring-Governor Link262785
265Clamp, Casing221535
333Armature-Magneto492341
334Screw-Armature Mounting94731
356Wire-Ground494328
474Stator Assy.-Alternator391529
482Screw-Sem93621
527Clamp221428
657Screw-Sem94906
663Screw-Hex. Hd.94929
683Screw-Hex. Head94602
851Terminal-Ignition Cable493880
877Connector Assy.-Stator393814
Lista de repuestos


pos.descripciónNúmero de pieza
23Flywheel and Ring Gear492326
37Guard-Flywheel224502
73Screen-Flush Rotating224948
75Washer-Flat225136
78Screw94626
188Screw94627
304Housing-Blower496431
363Puller-Flywheel(Optional Accessory)19203
455Cup-Screen Mounting222561
668Spacer280848
726Gear-Flywheel Ring (Includes Mounting Parts)392134
729Clip-Relief281159
1005Fan-Flywheel281400
1006Retainer-Fan224413
1044Screw-Hex. Head94673

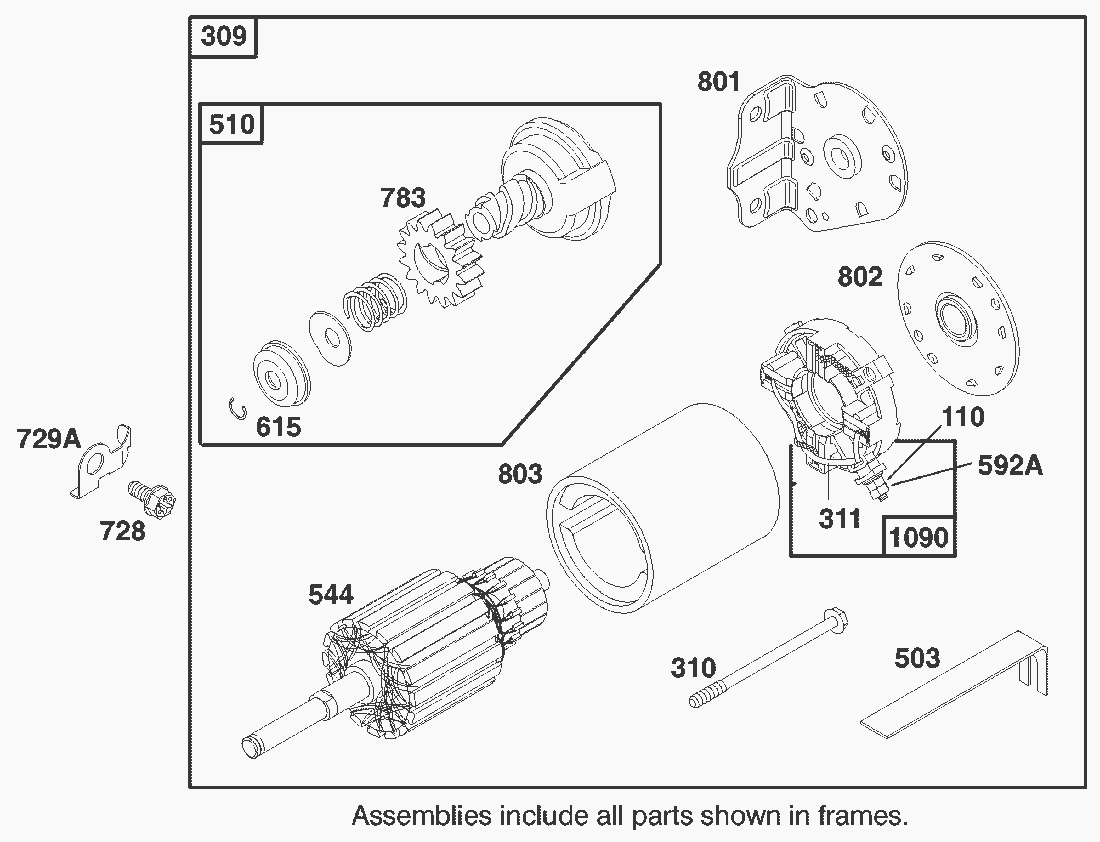

Lista de repuestos


pos.descripciónNúmero de pieza
110Washer-Flat225137
309Motor-Starter497595
310Bolt94003
311Brush Set497608
503Strap-Starter806000
510Drive-Starter497606
544Armature-Starter497603
592Nut-Hex.92278
615Retainer263080
728Screw-Sternantriebê94951
729Clip-Wire225170
783Gear280104
801Drive End Cap Assembly394856
802Plate-Cover497607
803Housing-Starter497604
1090Cap-End497605
Lista de repuestos


pos.descripciónNúmero de pieza
3Seal-Oil391086
7Gasket-Cylinder Head271866
9Gasket-Valve Cover27803
Gasket-Crkcse Cover, .005 Thick * Included in Gasket Set Part No. 494241.271997
Gasket-Crkcse Cover, .009 Thick * Included in Gasket Set Part No. 494241.271996
20Seal-Oil291675
87Seal-Oil491323
121Carburetor Kit499220
142Nozzle-Carburetor494566
358Gasket Set494241
524Seal-Filler Tube281370
842Seal-Oil Filler Cap270920
977Carburetor Gasket Kit494385
1095Gasket Set-Valve Overhaul498539
