Lista de repuestos para Toro Roth / TORO Engine B&S Model 97772-0112-01


Lista de repuestos 1
Lista de repuestos 2
Lista de repuestos 3
Lista de repuestos 4
Lista de repuestos 5
Lista de repuestos 6
Lista de repuestos 7
Lista de repuestos 8


Lista de repuestos


pos.descripciónNúmero de pieza
1Cylinder Assy493787
3Seal-Oil299819
5Head-Cylinder493785
7Gasket-Cylinder Head272314
8Breather Assy494489
9Gasket-Breather272481
9Gasket-Baffle Plate272238
10Screw-Hex Head (valve cover)94576
10Screw-Hex. Head94650
11Tube-Breather231685
13Screw-Cylinder Hd.94547
33Valve-Exhaust493778
34Valve-Intake493777
35Spring-Valve262716
40Retainer-Spring262552
45Tappet-Valve262679
122Adapter Assy493669
166Stud-Rocker Arm94555
192Ball & Screw-Rocker Arm492160
192Screw-Set810068
238Cap-Valve262499
307Screw-Hex Head94515
337Plug-Spark491055
572Baffle-Cylinder224328
635Elbow-Spark Plug66538
718Pin-Cylinder230192
868Seal Assy-Valve493661
868Gasket-Valve272376
869Seat-Valve (Intake)262728
870Seat-Valve (Exhaust)262727
871Bushing-Guide262718
883Gasket-Exhaust272313
1022Gasket-Rocker Cover272323
1023Cover-Valve213864
1026Rod-Push493527
1029Arm-Rocker224111
1034Guide-Push Rod224400
Lista de repuestos


pos.descripciónNúmero de pieza
12Gasket-Engine Base272324
15Plug-OII Drain94613
16Crankshaft Note: Order Part No. 94388 For Timing Gear Key493726
18Base-Engine493901
20Seal-Oil399781
22Screw-Sump Mtg. Sem94220
25Piston Assy (Std)493781
26Ring Set (Std)493782
27Lock-Piston Pin262514
28Pin Assy-Piston492765
29Rod-Connecting493049
32Screw-Connecting Rod94572
46Gear-Cam493310
116O-Ring280891
188Screw-Hex Head Sem94513
219Gear-Governor493719
227Lever Assembly-Governor492349
230Washer-Governor Crank67072
305Screw-Hex Head94582
523Dipstick-Oil493601
524Seal-Filler Tube280393
525Tube-Oil Filler494194
562Bolt, Governor Lever92613
592Nut-Hex.-10-24231082
615Pushnut (Governor Crank)94474
616Crank-Governor262578
741Gear-Timing262598
842Seal-O-Ring280966
979Cover-Oil Pump492756
1024Pump-Oil493884
Lista de repuestos


pos.descripciónNúmero de pieza
95Screw-Throttle Valve Mounting Sem94098
98Screw-Idle Adjustment398185
104Pin-Float Hinge231371
108Valve-Choke224449
116Sealing-Gasket271716
118Valve and Spring-Needle493765
124Screw-Hex Head (carb mtg)94584
125Carburetor Assy493887
127Plug-Welch223949
130Valve-Throttle223470
131Shaft and Lever-Throttle493267
133Float Assy.-Carburetor398187
134Valve-Inlet (Includes Seat)398188
136Bowl-Fuel224458
137Gasket-Float Bowl280492
141Shaft-Choke493899
147Adapter-Jet Note: For High Altitude Jet, Order Part No. 494236.493883
634Washer-Seal280566
955Screw-Hex Head493924
975Bowl Assy-Carburetor493902
1011Tube-Vent280786
1039Limiter-Float281086

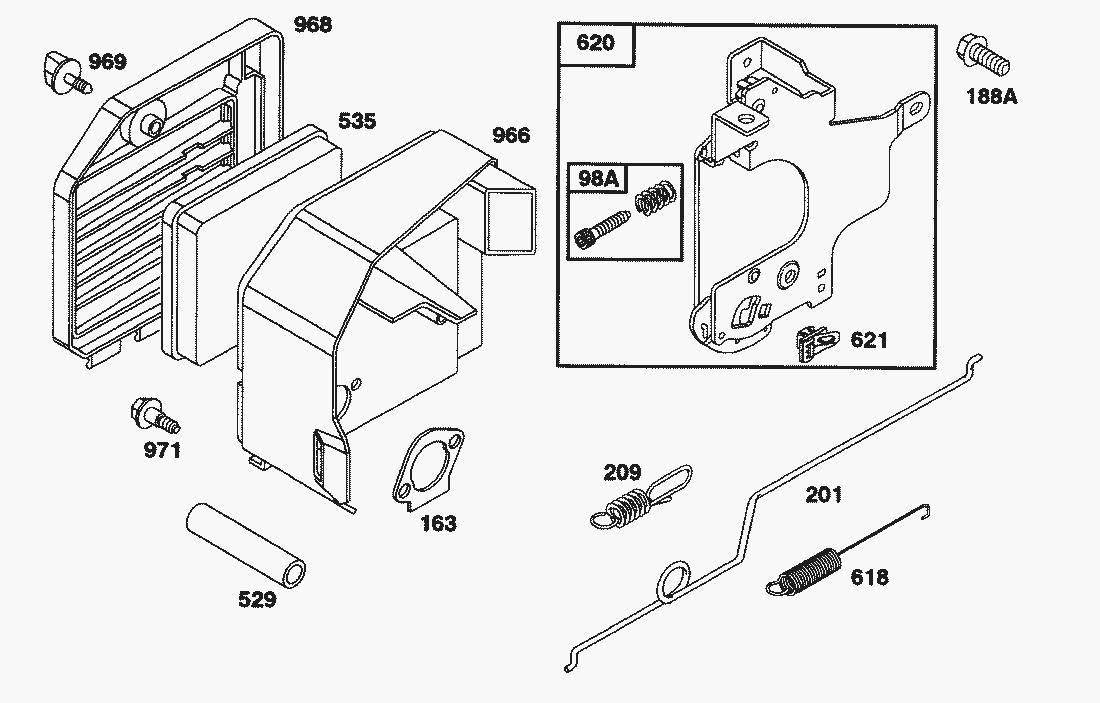

Lista de repuestos


pos.descripciónNúmero de pieza
98Screw Assy.-Speed Adj.493280
163Gasket-Air Cleaner272325
188Screw-Hex. Head94644
201Link-Governor262709
209Spring-Governor262735
529Tube-Breather494306
535Element-Filter Note: 494245 Element-Paper (Optional)272310
618Spring-Choke262717
620Bracket-Carburetor493539
621Switch-Stop396847
966Base Air Cleaner493408
968Cover-Air Cover281006
969Screw-Air Cleaner493307
971Screw-Air Cleaner94577
Lista de repuestos


pos.descripciónNúmero de pieza
55Housing-Rewind Starter493942
56Pulley-Rewind Starter494545
58Rope-Starter (Cut To Suit)390620
59Insert-Rewind Handle224467
60Handle-Rewind Starter493926
65Screw-Hex Head94579
456Retainer-Rewind Starter224204
459Pawl-Starter492833
461Screw-Rewind Starter94507
515Spring262555
608Starter Assy-Rewind494023
718Pin-Spring493925
1016Cover-Rewind Starter224278
Lista de repuestos


pos.descripciónNúmero de pieza
23Flywheel-Magneto492177
24Key-Flywheel222698
37Guard-Flywheel224402
304Housing-Blower493326
332Nut-Flywheel92284
333Armature-Magneto802574
334Screw, Breaker Arm Mtg. Sem93381
356Wire-Ground398808
455Cup-Starter224250
851Terminal-Ignition Cable221798
980Bracket-Blower Housing224395
1002Grommet281050
Lista de repuestos


pos.descripciónNúmero de pieza
180Tank Assy-Fuel494022
182Bracket-Fuel Tank224394
187Hose-Fuel (Cut To Suit)395051
300Muffler-Exhaust493691
346Screw-Hex93572
346Screw-Sem93705
601Clamp-Hose (For 1 /2 O. D. Hose)93807
670Spacer-Fuel Tank (includes 2)494307
674Screw-Tank Mtg94585
832Guard-Muffler493698
994Arrester-Spark493662
1041Seal-Foam272383
Lista de repuestos


pos.descripciónNúmero de pieza
121Overhaul Kit-Carburetor493917
358Gasket Set493783
977Gasket Set-Carburetor490937
