Lista de repuestos para Toro Roth / TORO Engine B&S Model 28N777-1174-E1

pos.	descripción	Número de pieza

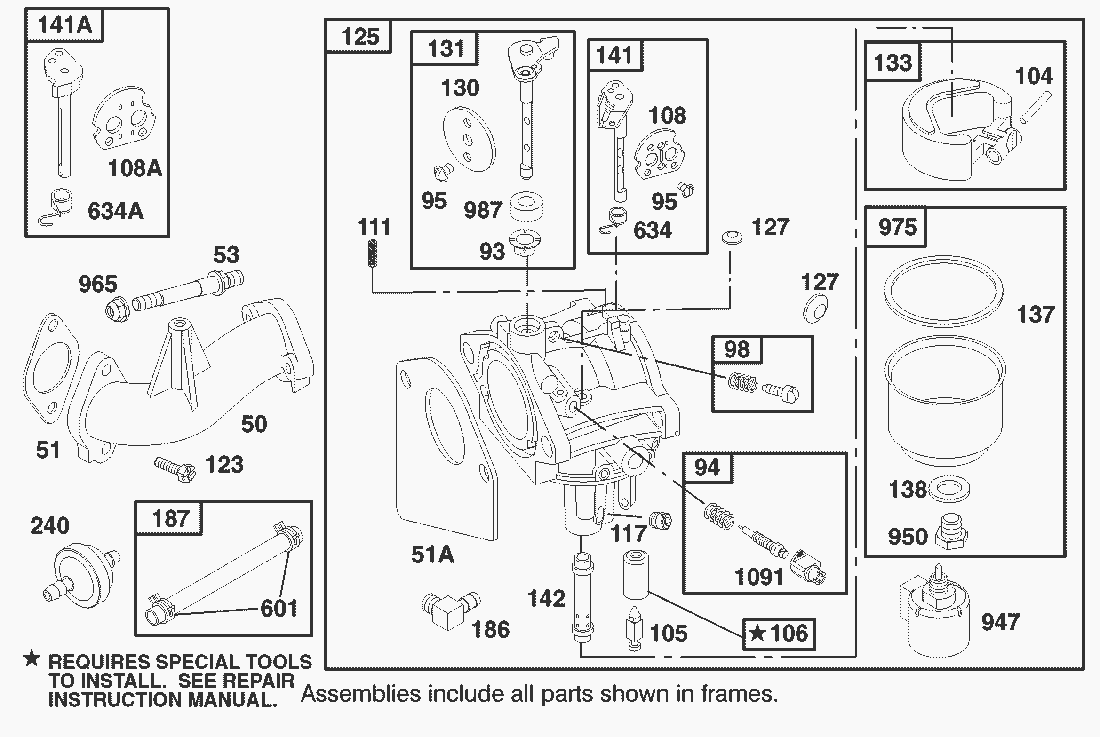

50	Manifold-Intake	214047
51	Gasket-Carb (Carb to Elbow)	272465
53	Stud-Carb Mtg	94637
93	Bushing-Throttle	281346
95	Screw-Throttle Valve Mounting Sem	94098
94	Valve-Needle	498030
98	Screw-ldle Speed	495800
104	Pin-Float Hinge	231789
105	Valve Assy.-Inlet Needle	231855
106	Inlet Valve Seat	231854
108	Valve-Choke	224558
108	Valve-Choke	224540
111	Spring-Friction	262715
117	Jet-Main (Standard)	232118
	Jet-Main (High Altitude)	232119
123	Screw-Elbow Mtg.	94913
125	Carburetor	499153
127
130	Valve-Throttle	224539
131	Shaft and Lever-Throttle	494379
133	Float-Carburetor	494381
137	Gasket-Float Bowl	281165
138	Washer-Float Bowl Screw	281164
141	Shaft Kit-Choke (Manual)	495097
141	Shaft and Lever-Choke	495931
142	Nozzle-Carburetor	232117
186	Elbow-Fuel Pipe	493496
187	Line-Fuel	298049
240	Filter-Fuel (In Fuel Line)	394358
601	Clamp-Fuel Pipe	93053
634	Seal-Spring Assembly	494453
634	Seal-Spring Assembly	494455
947	Solenoid	497672
950	Screw-Fuel Bowl	94642
965	Locknut-Air Cleaner Mtg.	94010
975	Bowl-Float	495933
987	Seal-Throttle Shaft	281166
1091	Cap-Limiter	281364

pos.	descripción	Número de pieza
1	Cylinder Assembly	496412
2	Bearing-Cylinder Note: Installation Requires Special Tools	399265
3	Seal-Oil	391086
8	Breather Assembly	495735
9	Gasket-Valve Cover	27803
10	Screw	94621
11	Tube-Breather	281246
87	Seal-Oil	491323
116	Seal-Oil Filler Cap	270920
230	Washer-Flat	94927
284	Screw-Shoulder	94903
306	Shield-Cylinder	225020
307	Screw-Hex. Head	94930
523	Cap and Dipstick Oil Filler	495230
524	Seal-Filler Tube	281370
525	Tube-Oil Filler	496113
552	Bushing-Crank, Gov.	491986
614	Cotter, Hair Pin	93306
616	Crank-Governor	495157
718	Pin-Cylinder	230192
847	Fill Group-Oil	496415
978	Gasket-Adapter	272888
982	Screw-Sem	94899
1027	Filter-Oil	492932
1028	Adapter-Filter	496744

pos.	descripción	Número de pieza

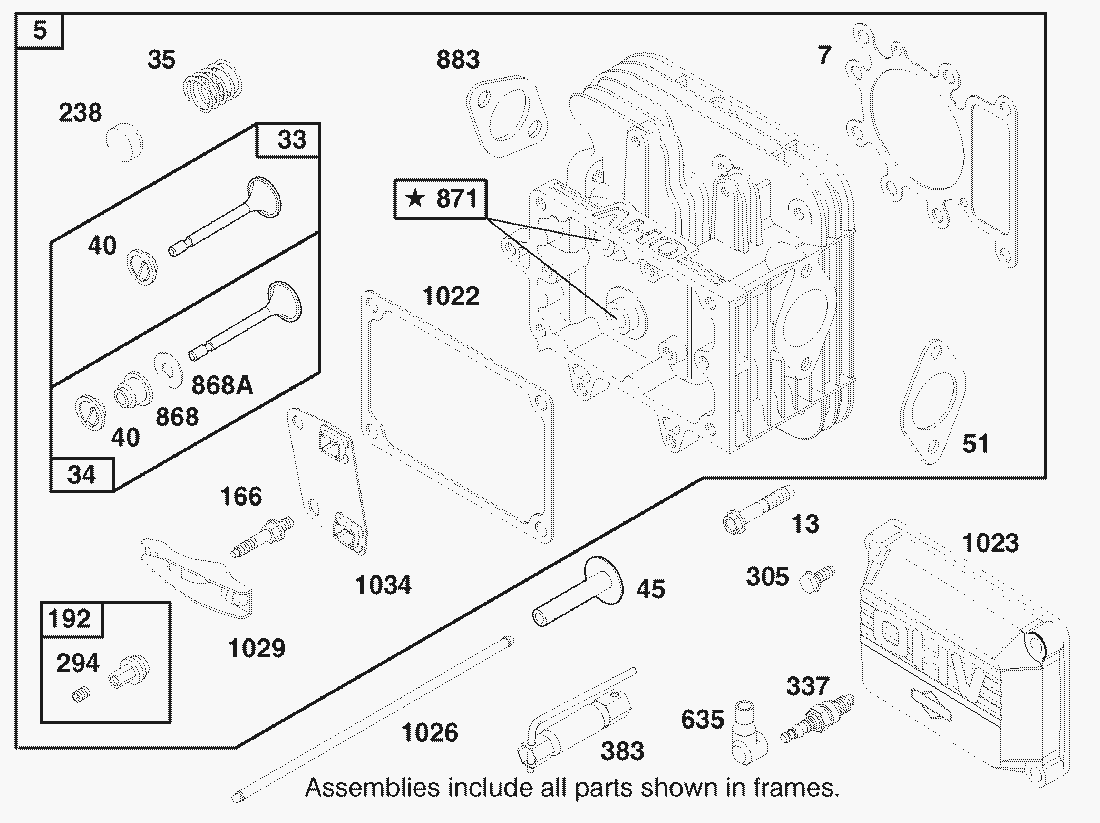

5	Head-Cylinder	495858
7	Gasket-Cylinder Head	273280
13	Screw-Cylinder Head	94728
33	Valve-Exhaust	495856
34	Valve-lntake	495857
35	Spring-Valve	262811
40	Retainer-Valve	224641
45	Tappet-Valve	262411
51	Gasket-Carb. Mounting	272569
166	Stud-Rocker Arm	94555
192	Ball & Screw-Rocker Arm	492160
238	Cap-Valve	262836
294	Screw-Set	810104
305	Screw-Hex. Washer Hd.	94786
337	Plug-Spark	491055
383	Wrench-Spark Plug	89838
635	Elbow-Spark Plug	280872
868	Seal-Valve	494435
868	Seal-Valve	272610
871	Bushing-Guide (Intake and Exhaust)	262835
883	Gasket-Exhaust Pipe	272293
1022	Gasket-Rocker Cover	272475
1023	Cover-Rocker	224552
1026	Rod-Push (Intake) Note: 495136 Rod-Push (Exhaust)	494432
1029	Arm-Rocker	224554
1034	Guide-Push Rod	495248

pos.	descripción	Número de pieza
4	Base-Engine	496742
	Gasket-Crkcse Cover, .005 Thick * Included in Gasket Set Part No. 494241.	271997
	Gasket-Crkcse Cover, .009 Thick * Included in Gasket Set Part No. 494241.	271996
15	Plug-Oil Drain	94239
16	Crankshaft	498971
20	Seal-Oil	291675
22	Screw-Base Mtg. Sem	94624
24	Key-Flywheel	222698
25	Piston Assembly (Standard)	495860
26	Ring Set (Standard)	495854
27	Lock-Piston Pin	263129
28	Pin Assy.-Piston (Standard)	498319
	Pin Assy.-Piston (.005 O.S.)	498320
29	Rod-Connecting	494504
	Rod-Conn. (.020 U.S.)	495490
43	Oil Slinger	490815
46	Gear-Cam	496884
116	O-Ring	281402
146	Key-Timing Gear	94196
224	Screw-SternantriebêHex.	94905
741	Gear-Timing	262932
757	Link-Counterweight	213998
758	Counterweight Assy.	399891
759	Pin-Counterweight	230787
761	Screw-Counterweight	94593
979	Cover-Pump	496745
1017	Screen-Oil Pump	225026
1024	Pump-Oil	493884
1055	Tube-Oil Pump	231931

pos.	descripción	Número de pieza

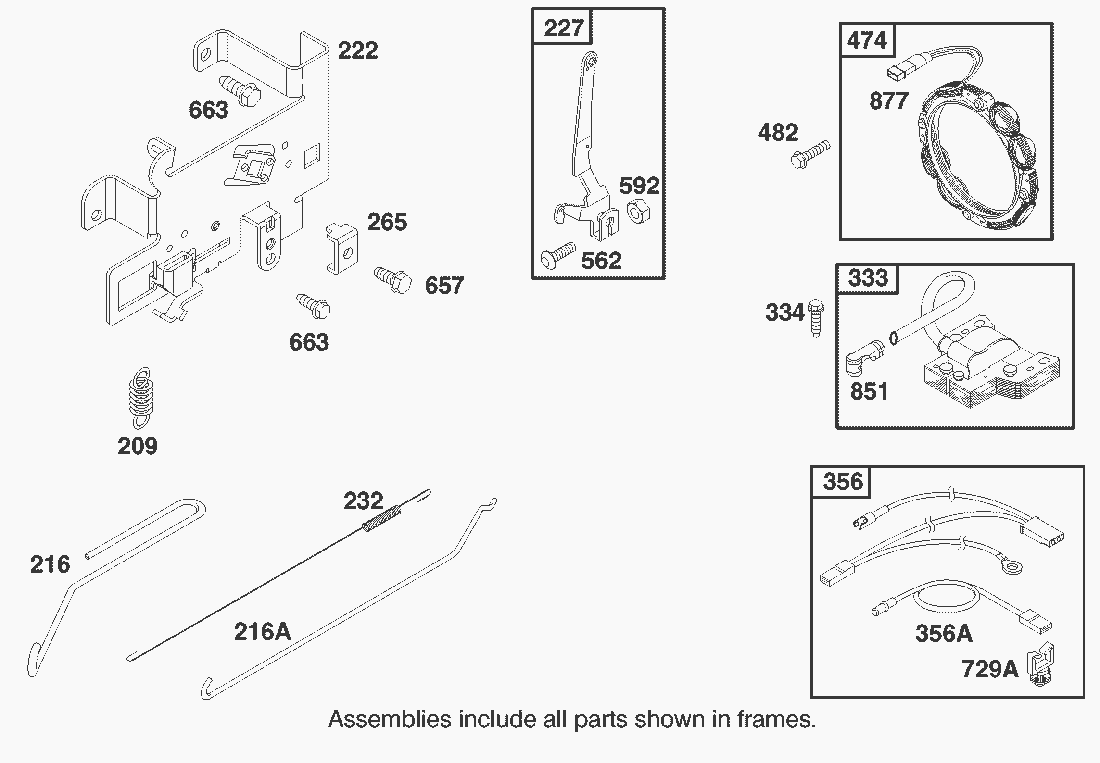

209	Spring, Governor	260695
216	Link-Choke	262766
216	Link-Governor	262767
222	Plate-Governor Control	495611
227	Lever Assy.-Governor	493935
232	Spring-Governor Link	262785
265	Clamp, Casing	221535
333	Armature-Magneto	495859
334	Screw-Armature Mounting	94731
356	Wire Stop	497708
356	Wire Stop	494705
474	Stator-Alternator (Dual Circuit)	393474
482	Screw-Sem	93621
562	Bolt-Governor Lever	94907
592	Nut-Hex.	231978
657	Screw-Sem	94906
729	Clip-Wire	281390
851	Terminal-Ignition Cable	493880
877	Diode and Connector Assy. (Dual Circuit)	393456
