Lista de repuestos para Toro Roth / TORO Engine B&S Model 28M707-0127-01

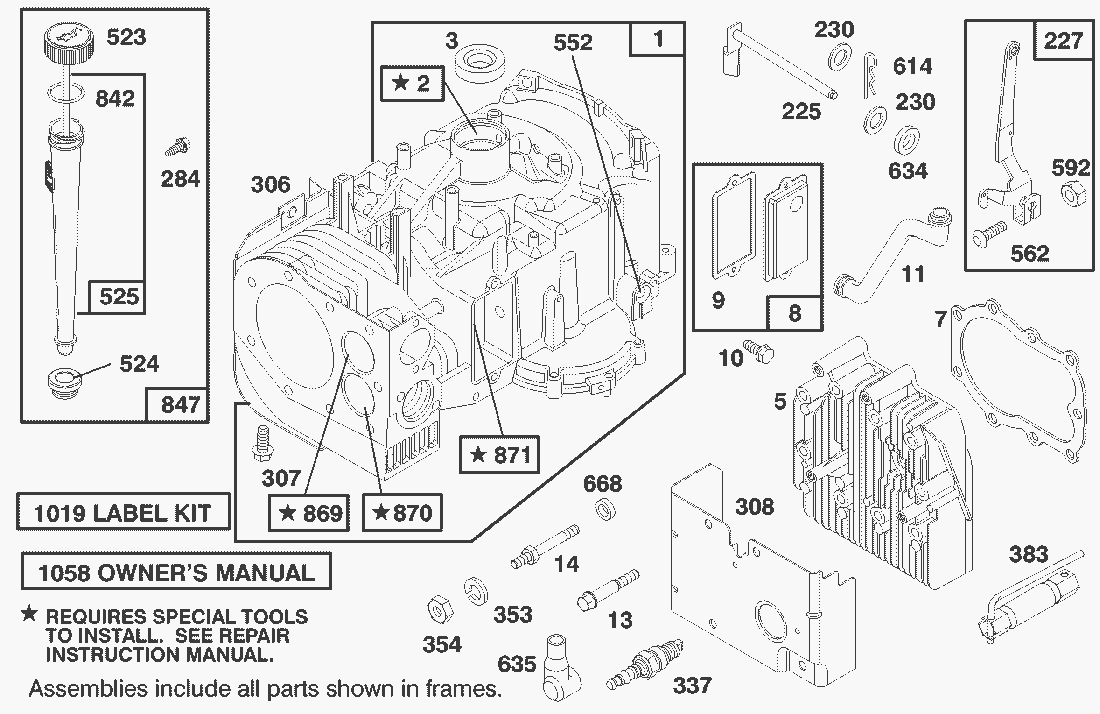

pos.	descripción	Número de pieza
1	Cylinder Assembly	496413
2	Bearing-Cylinder Note: Installation Requires Special Tools	399265
3	Seal-Oil	391086
5	Head-Cylinder	494240
7	Gasket-Cylinder Head	271866
8	Breather Assembly	495735
9	Gasket-Valve Cover	27803
10	Screw	94621
11	Tube-Breather	281246
13	Screw-Cylinder Head	94622
14	Stud-Cylinder Head	94776
225	Crank-Governor	495157
227	Lever Assy.-Governor	493935
230	Washer-Gov.Crank	94742
284	Screw-Sem	94073
306	Shield-Cylinder	224545
307	Screw-Cylinder Shield Mtg. Sem	94623
308	Cover-Cylinder Head	491490
337	Plug-Spark (Resistor Type-1-7/8 high, 47 M.M.)(Model No. 38566 only)	802592
353	Washer-Lock	94315
354	Nut-Hex.	94314
383	Wrench-Spark Plug	89838
523	Cap and Dipstick Oil Filler	495230
524	Seal-Filler Tube	281370
525	Tube-Oil Filler	496113
552	Bushing-Gov. Crank	231597
562	Bolt, Governor Lever	92613
592	Nut-Hex.-10-24	231082
614	Cotter, Hair Pin	93306
634	Seal-Oil	491323
635	Elbow-Spark Plug	66538
668	Spacer-Muffler Mtg.	231109
842	Seal-Oil Filler Cap	270920
847	Fill Group-Oil	496415
869	Seat-Intake Valve (Standard)	261463
870	Seat-Exhaust Valve (Std.)	213316
871	Guide-Exhaust Valve Note: 231218 Guide-Exhaust on Intake Valve (Brass). See Repair Manual.	261961
1019	Label Kit	491255
1058	Owner s Manual	272697

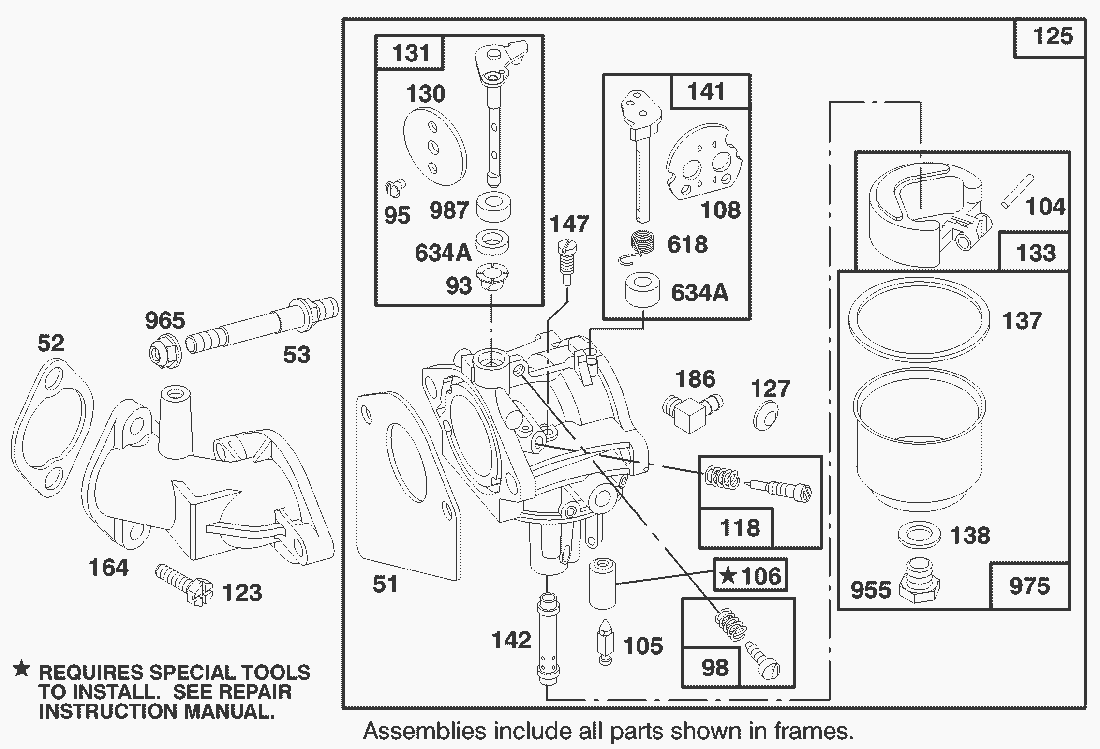

pos.	descripción	Número de pieza
51	Gasket-Carb (Carb to Elbow)	272465
52	Gasket-Carburetor Mtg.	272554
53	Stud-Carb Mtg	94637
93	Bushing-Throttle	281346
95	Screw-Throttle Valve Mounting Sem	94098
98	Screw-ldle Speed	495800
104	Pin-Float Hinge	231789
105	Valve Assy.-Inlet Needle	231855
106	Inlet Valve Seat	231854
108	Valve-Choke	224540
118	Valve-Needle	494383
121	Carburetor Overhaul Kit	495799
123	Screw-Elbow Mtg	94616
125	Carburetor Assembly	495706
127
130	Valve-Throttle	224539
131	Shaft and Lever-Throttle	494379
133	Float-Carburetor	494381
137	Gasket-Float Bowl	281165
138	Washer-Float Bowl Screw	281164
141	Shaft and Lever-Choke	495931
142	Nozzle-Carburetor	497566
147	Pilot-Jet	231984
164	Carburetor-Elbow	213819
186	Elbow-Fuel Pipe	493496
618	Spring-Choke Return	262803
634	Seal-Choke Shaft	281168
634	Washer-Throttle Shaft	398970
955	Screw-Fuel Bowl	94642
965	Locknut-Air Cleaner Mtg.	94010
975	Bowl Assy-Carb	494378
977	Carburetor Gasket Kit	494385
987	Seal-Throttle Shaft	281166

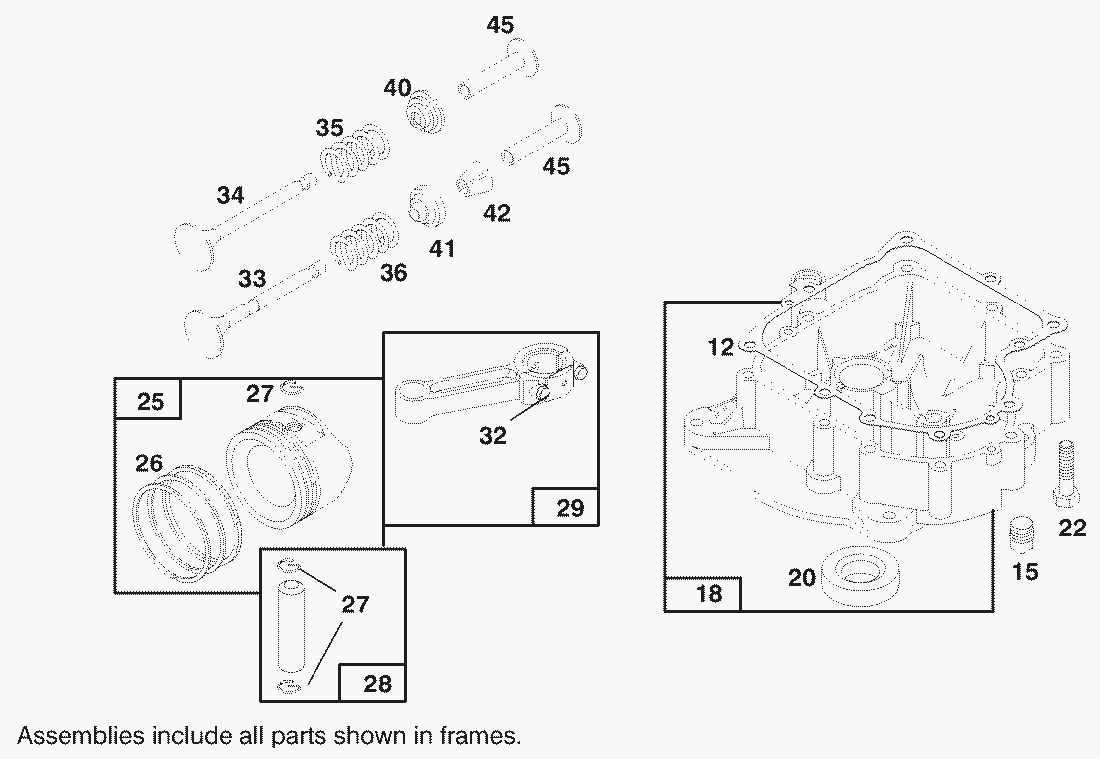

pos.	descripción	Número de pieza
	Gasket-Crkcse Cover, .005 Thick * Included in Gasket Set Part No. 494241.	271997
	Gasket-Crkcse Cover, .009 Thick * Included in Gasket Set Part No. 494241.	271996
15	Plug-Oil Drain	94239
18	Base-Engine	494238
20	Seal-Oil	291675
22	Screw-Base Mtg. Sem	94624
25	Piston Assy. (Std.)	497518
26	Ring Set-Piston-Standard	391780
	Ring Set-Piston-.010 O.S.	391781
27	Lock-Piston Pin	260924
28	Pin Assembly-Piston-Standard	299691
29	Connecting Rod Assy. Note: For Connecting Rod with .020 Undersize Crankpin Bore-Order No.490469.	490348
32	Screw-Connecting Rod	94671
33	Valve-Exhaust	262246
34	Valve-Intake	262247
35	Spring-Intake Valve	65906
36	Spring-Exhaust Valve	26828
40	Retainer-Intake Valve	221596
41	Rotocoil-Exhaust Valve	292260
42	Retainer-Exhaust Valve Rotocoil	93630
45	Tappet-Valve	262248

pos.	descripción	Número de pieza
23	Flywheel and Ring Gear	492326
37	Guard-Flywheel	224502
73	Screen-Flush Rotating	224948
75	Washer-Spring	224061
78	Screw	94626
188	Screw	94627
304	Housing-Blower	496431
333	Armature-Magneto	492341
334	Screw, Breaker Arm Mtg. Sem	93381
356	Wire-Ground	494328
363	Puller-Flywheel(Optional Accessory)	19203
455	Cup-Screen Mounting	222561
668	Spacer	280848
726	Gear-Flywheel Ring (Includes Mounting Parts)	392134
729	Clip-Relief	281159
851	Terminal-Ignition Cable	493880
1005	Fan-Flywheel	281355
1006	Retainer-Fan	224413
