> Roth / TORO > Hand operated > Lawnmower > 4-stroke SP > 415/20811 > 200000001 > Engine B&S Model 12F802-1769-B1

Lista de repuestos para Toro Roth / TORO Engine B&S Model 12F802-1769-B1


Lista de repuestos 1
Lista de repuestos 2
Lista de repuestos 3
Lista de repuestos 4
Lista de repuestos 5
Lista de repuestos 6
Lista de repuestos 7
Lista de repuestos 8
Lista de repuestos 9


Lista de repuestos


pos.descripciónNúmero de pieza
1Cylinder Assembly493260
2Bushing-Cylinder Note: Requires special tools for installation.293708
3Seal-Oil299819
5Cylinder Head691160
7Gasket-Cylinder Head272916
8Breather Assembly695250
9Gasket-Breather272481
10Screw-Hex. Head94650
11Tube-Breather231933
13Screw-Cylinder Hd.94547
50Tube-Fuel Intake497465
51Gasket-Intake Elbow272199
54Screw-Intake Elbow Mtg.94526
227Lever Assembly-Governor492349
287Screw-Hex Head94511
306Cylinder Shield690345
307Screw-Hex Head94515
337Plug-Spark (Resistor Type-1-7/8 high, 47 M.M.)(Model No. 38566 only)802592
383Wrench-Spark Plug89838
404Washer(Governor Crank)690272
505Nut-Hex.-10-24231082
523Cap With Dipstick-Oil Filler495264
524Seal-O-Ring280966
525Tube-Oil Filler495265
562Screw-Hex Head94582
584Breather Passage Cover692342
585Gasket-Baffle Plate272238
615Governor Shaft Retainer690340
616Governor Crank691306
635Elbow-Spark Plug66538
684Cylinder Shield690345
842Seal-Filler Tube280393
847Oil Fill Tube and Dipstick Assy.495263
869Seat-Intake Valve (Standard)213512
870Seat-Exhaust Valve (Standard)213513
871Guide-Exhaust Valve Note: 63709 Guide-Intake Valve See Repair Instruction Manual262001
1058Owner s Manual274265
Lista de repuestos


pos.descripciónNúmero de pieza
4Sump-Engine493279
12Gasket-Crankcase272198
15Plug-Oil Drain94880
16Crankshaft694079
20Seal-Oil399781
22Screw(Engine Sump)691092
24Key-Flywheel222698
25Piston Assy. (Standard)499429
499430
499431
499432
26Ring Set (Standard)499425
499426
499427
499428
27Lock-Piston Pin263190
28Pin-Piston (Standard)499423
29Rod Assembly- Connecting499424
30Connecting Rod Dipper692562
32Screw-Connecting Rod94699
33Valve-Exhaust262651
34Valve-Intake262652
35Valve Spring(Intake)691270
36Valve Spring(Intake)691270
40Retainer, Valve Spring93312
43Oil Slinger Gear and Brkt.493737
45Valve Tappet690548
46Camshaft691449
146Timing Gear Key.94388
741Gear-Timing262598
Lista de repuestos


pos.descripciónNúmero de pieza
95Screw-Throttle Valve Mounting Sem94098
97Shaft and Lever-Throttle493267
104Float Hinge Pin691242
117Jet-Main (Std.) Note: 497315 Jet-Main (High Altitude)494870
125Carburetor498170
127Welch Plug694468
130Throttle Valve691203
133Float Assy.-Carburetor398187
134Valve-Inlet (Includes Seat)398188
137Gasket-Float Bowl280492
163Gasket-Air Cleaner272653
276Sealing-Gasket271716
365Screw-Hex94840
617Seal-Fuel Intake Tube270344
708Dust Seal691321
975Bowl Assembly-Carburetor493640
Lista de repuestos


pos.descripciónNúmero de pieza
159Strap-Bracket224815
425Screw-Slotted Hex.94872
443Screw-Hex.94873
445Filter-Air491588
529Grommet-Breather281299
966Base-Air Cleaner496116
968Cover-Air Cleaner281340
970Screw-Hex. Head94749
976Primer-Carburetor496115
Lista de repuestos


pos.descripciónNúmero de pieza
188Screw-Hex. Head94644
202Link-Governor262579
209Governor Spring263047
745Screw-Hex. Head94512
222Control Bracket692467
621Switch-Stop396847
668Spacer-Carburetor Bracket493823
922Spring-Brake262640
923Brake Assembly493442
Lista de repuestos


pos.descripciónNúmero de pieza
81Lock-Muffler Screw223664
187Line-Fuel298049
190Screw-Hex Head94511
300Muffler-Exhaust496106
601Clamp-Hose95162
613Screw-Muffler Mtg.94231
670Spacer-Fuel Tank280512
676Deflector-Muffler493871
677Screw-Hex. Head94896
957Cap Assy-Fuel397974
972Tank Assembly-Fuel495224
1059Screw-Tank Mounting (Includes Washer)398540

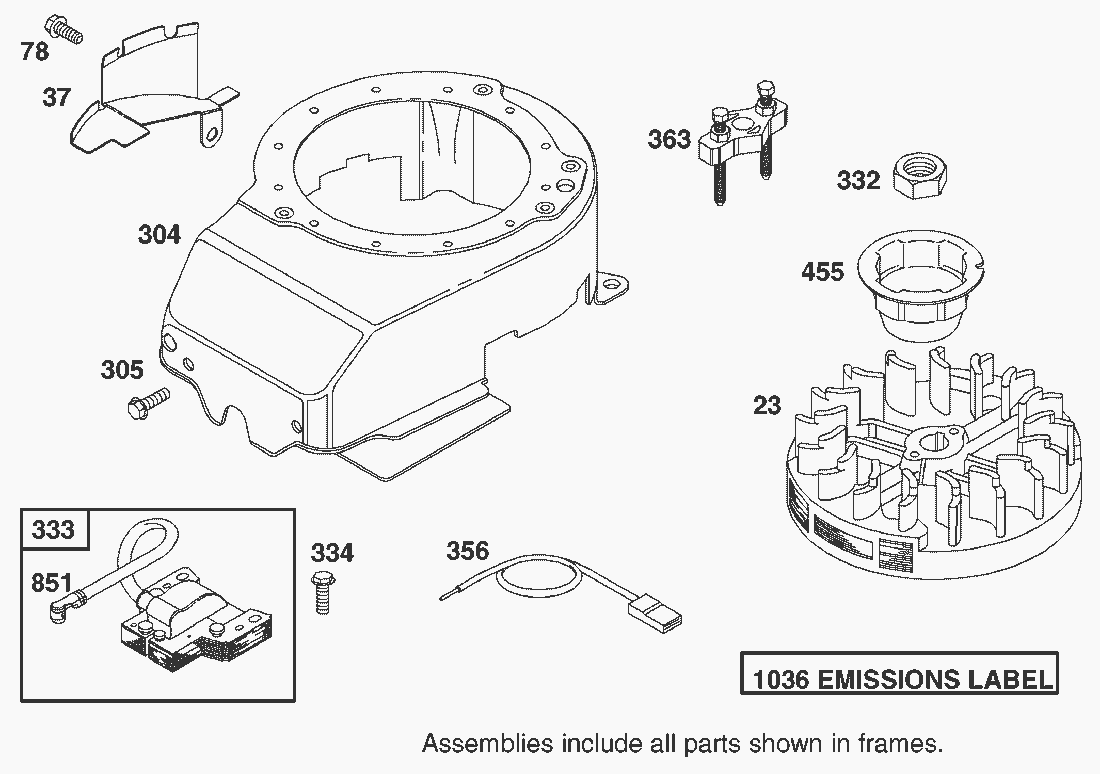

Lista de repuestos


pos.descripciónNúmero de pieza
23Flywheel-Magneto492177
37Flywheel Guard694086
78Screw(Flywheel Guard)691108
304Housing-Blower493293
305Screw(Flywheel Guard)691108
332Nut-Flywheel94877
333Armature-Magneto802574
334Screw-Armature Mounting94731
356Stop Wire692390
363Flywheel Puller (Optional Accessory)19069
455Flywheel Cup691219
851Terminal-Ignition Cable493880
1036Emissions Label695111
Lista de repuestos


pos.descripciónNúmero de pieza
55Rewind Starter Housing691421
58280399
59Insert-Rewind Handle224467
60Handle-Rewind Starter493926
65Screw-Hex.94904
456Retainer-Rewind Starter281503
459Pawl-Starter281505
592Nut-Hex.94908
597Pin-Starter94943
608Starter Assy.-Rewind497680
689Spring-Torsion263073
1210Pulley-Rewind Starter498144
1211Pulley-Rewind Starter498144
Lista de repuestos


pos.descripciónNúmero de pieza
121Carburetor Kit498260
358Gasket Set497316
977Gasket Set-Carburetor498261
1095Gasket Set-Valve Overhaul498528
