> Roth / TORO > Hand operated > Lawnmower > 4-stroke SP > 456/20808 > 9900001 > Engine B&S Model 12F802-1767-E1*

Lista de repuestos para Toro Roth / TORO Engine B&S Model 12F802-1767-E1*


Lista de repuestos 1
Lista de repuestos 2
Lista de repuestos 3
Lista de repuestos 4
Lista de repuestos 5
Lista de repuestos 6
Lista de repuestos 7
Lista de repuestos 8
Lista de repuestos 9


pos.descripciónNúmero de pieza
499431
499430
499427
499428
499432
499426
Lista de repuestos


pos.descripciónNúmero de pieza
1Cylinder Assembly493260
2Bushing-Cylinder Note: Requires special tools for installation.293708
3Seal-Oil299819
5Head-Cylinder214626
7Gasket-Cylinder Head272916
8Breather-Valve Chamber495786
9Gasket-Breather272481
10Screw-Hex. Head94650
11Tube-Breather231933
13Screw-Cylinder Hd.94547
51Gasket-Intake Elbow272199
54Screw-Intake Elbow Mtg.94526
116Seal-Filler Tube280393
116Seal-O-Ring280966
227Lever Assembly-Governor492349
230Washer-Governor Crank67072
284Screw-Hex Head94511
306Shield-Cylinder224324
307Screw-Hex Head94515
337Plug-Spark (Resistor Type-1-7/8 high, 47 M.M.)(Model No. 38566 only)802592
383Wrench-Spark Plug89838
523Cap With Dipstick-Oil Filler495264
525Tube-Oil Filler495265
562Screw-Hex Head94582
584Baffle-Cylinder224328
585Gasket-Baffle Plate272238
592Nut-Hex.-10-24231082
615Pushnut (Governor Crank)94474
616Crank-Governor263175
625Tube-Fuel Intake497465
635Elbow-Spark Plug66538
847Oil Fill Tube and Dipstick Assy.495263
869Seat-Intake Valve (Standard)213512
870Seat-Exhaust Valve (Standard)213513
871Guide-Exhaust Valve Note: 63709 Guide-Intake Valve See Repair Instruction Manual262001
Lista de repuestos

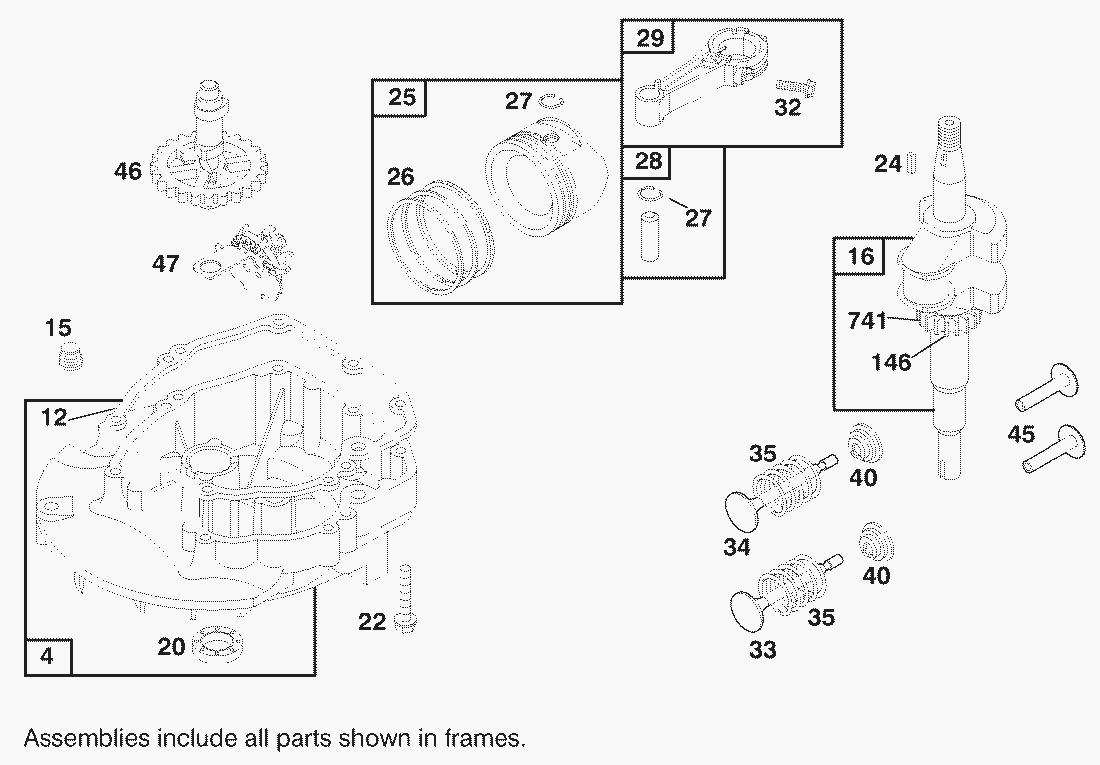

pos.descripciónNúmero de pieza
4Sump-Engine493279
12Gasket-Crankcase272198
15Plug-Oil Drain94880
16Crankshaft498573
20Seal-Oil399781
22Screw-Sump Mtg. Sem94220
24Key-Flywheel222698
25Piston Assy. (Standard)499429
26Ring Set (Standard)499425
27Lock-Piston Pin263190
28Pin-Piston (Standard)499423
29Rod Assembly- Connecting499424
32Screw-Connecting Rod94699
33Valve-Exhaust262651
34Valve-Intake262652
35Spring-Valve262224
40Retainer, Valve Spring93312
45Tappet-Valve262204
46Gear-Cam498275
47Oil Slinger Gear and Brkt.493737
146Timing Gear Key.94388
741Gear-Timing262598
Lista de repuestos

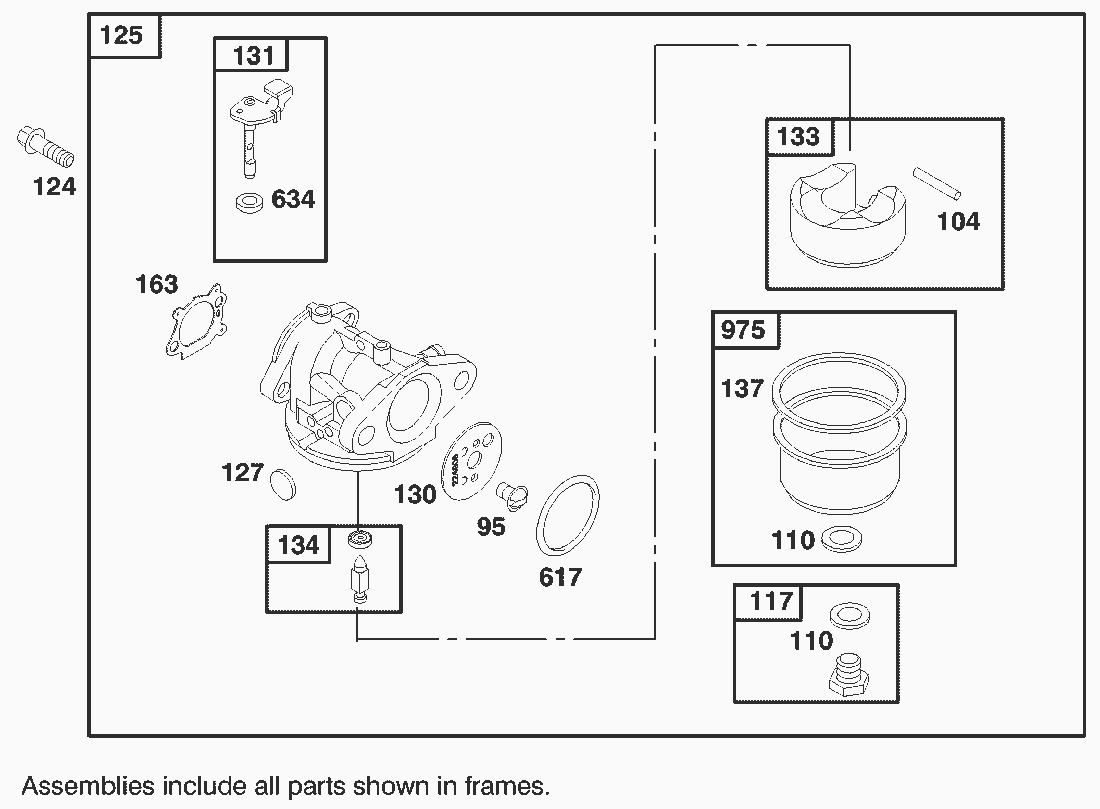

pos.descripciónNúmero de pieza
95Screw-Throttle Valve Mounting Sem94098
104Pin-Float Hinge231371
110
117Jet-Main (Std.) Note: 497315 Jet-Main (High Altitude)494870
124Screw-Hex94840
125Carburetor498170
127
130Valve-Throttle224908
131Shaft and Lever-Throttle493267
133Float Assy.-Carburetor398187
134Valve-Inlet (Includes Seat)398188
137
163Gasket-Air Cleaner272653
617Seal-Fuel Intake Tube270344
634
975Bowl Assembly-Carburetor493640
Lista de repuestos


pos.descripciónNúmero de pieza
161Base-Air Cleaner496116
529Grommet-Breather281299
967Filter-Air491588
968Cover-Air Cleaner281340
969Screw-Slotted Hex.94872
971Screw-Hex.94873
971Screw-Hex. Head94749
976Primer-Carburetor496115
1115Strap-Bracket224815
Lista de repuestos


pos.descripciónNúmero de pieza
188Screw-Hex. Head94644
188Screw-Hex.94874
202Link-Governor262579
209Spring-Governor263046
258Screw-Hex. Head94512
620Bracket-Carburetor497203
620Bracket-Control225152
621Switch-Stop396847
670Spacer-Carburetor Bracket493823
922Spring-Brake262640
923Brake Assembly493442
Lista de repuestos

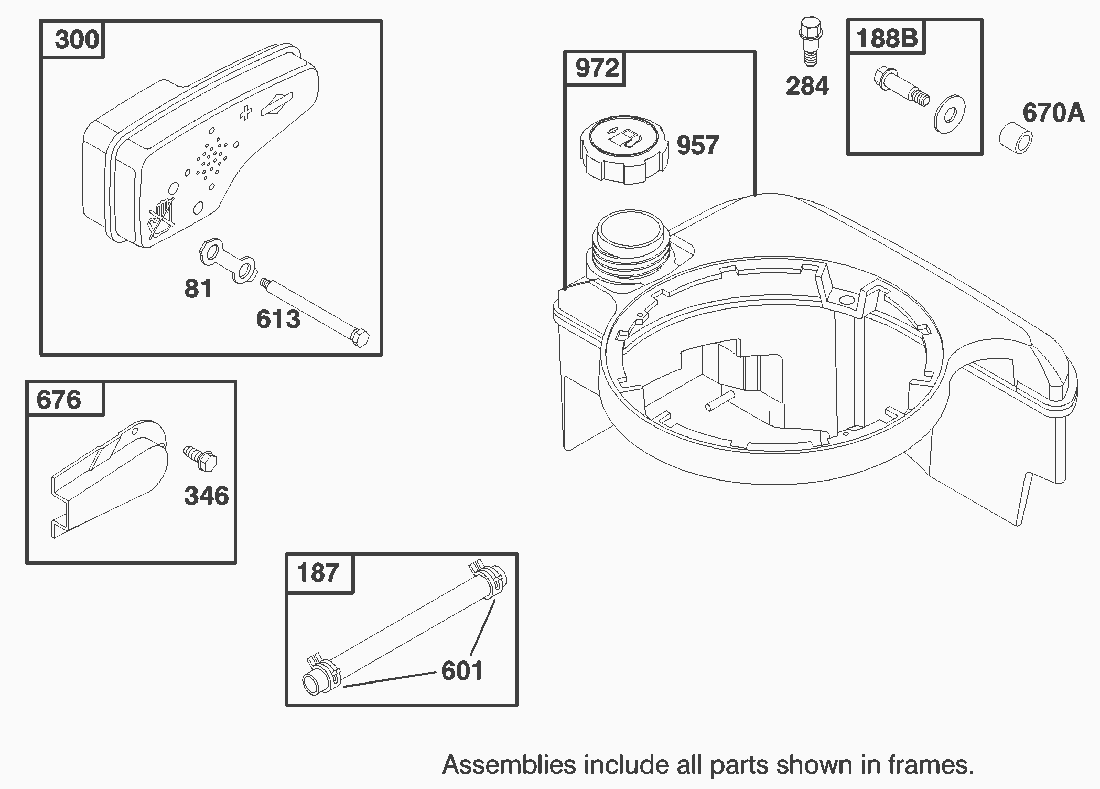

pos.descripciónNúmero de pieza
81Lock-Muffler Screw223664
187Line-Fuel298049
188Screw-Tank Mounting (Includes Washer)398540
300Muffler-Exhaust496106
346Screw-Hex. Head94896
601Clamp-Hose95162
613Screw-Muffler Mtg.94231
670Spacer-Fuel Tank280512
676Deflector-Muffler493871
957Cap Assy-Fuel397974
972Tank Assembly-Fuel495224
Lista de repuestos

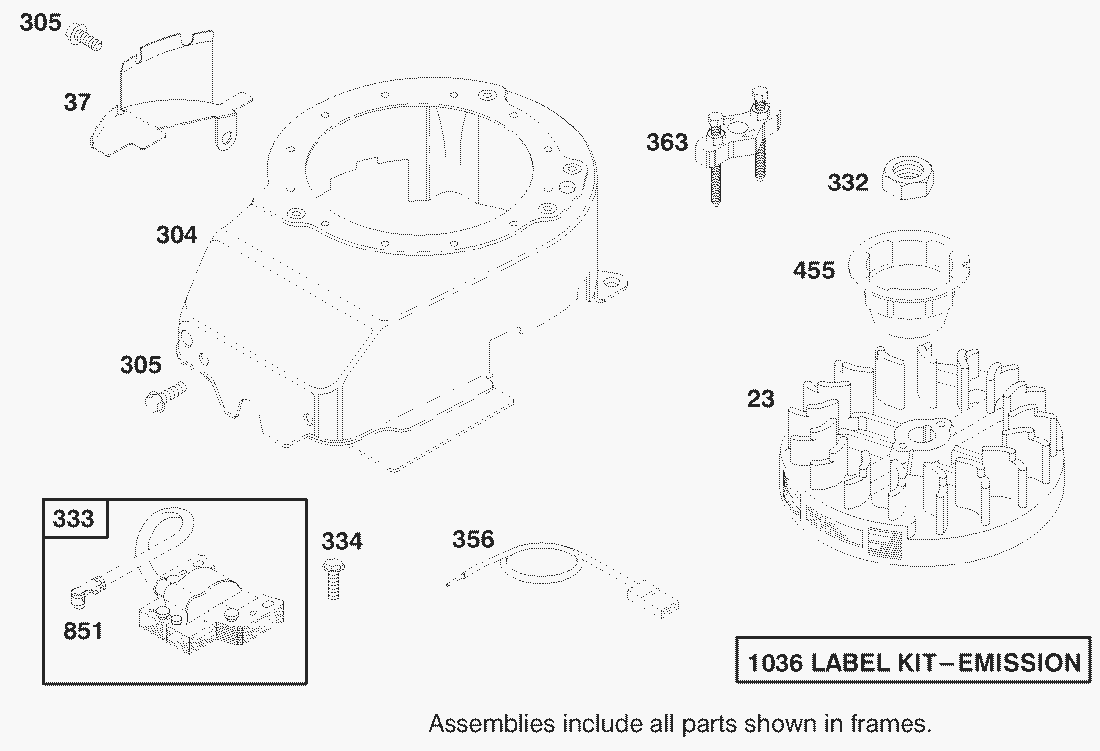

pos.descripciónNúmero de pieza
23Flywheel-Magneto492177
37Guard-Flywheel224511
304Housing-Blower493293
305Screw-Sem94744
332Nut-Flywheel94877
333Armature-Magneto802574
334Screw-Armature Mounting94731
356Wire-Stop497833
363Flywheel Puller (Optional Accessory)19069
455Cup-Starter225121
851Terminal-Ignition Cable493880
1036Label Kit-Emission499341
Lista de repuestos

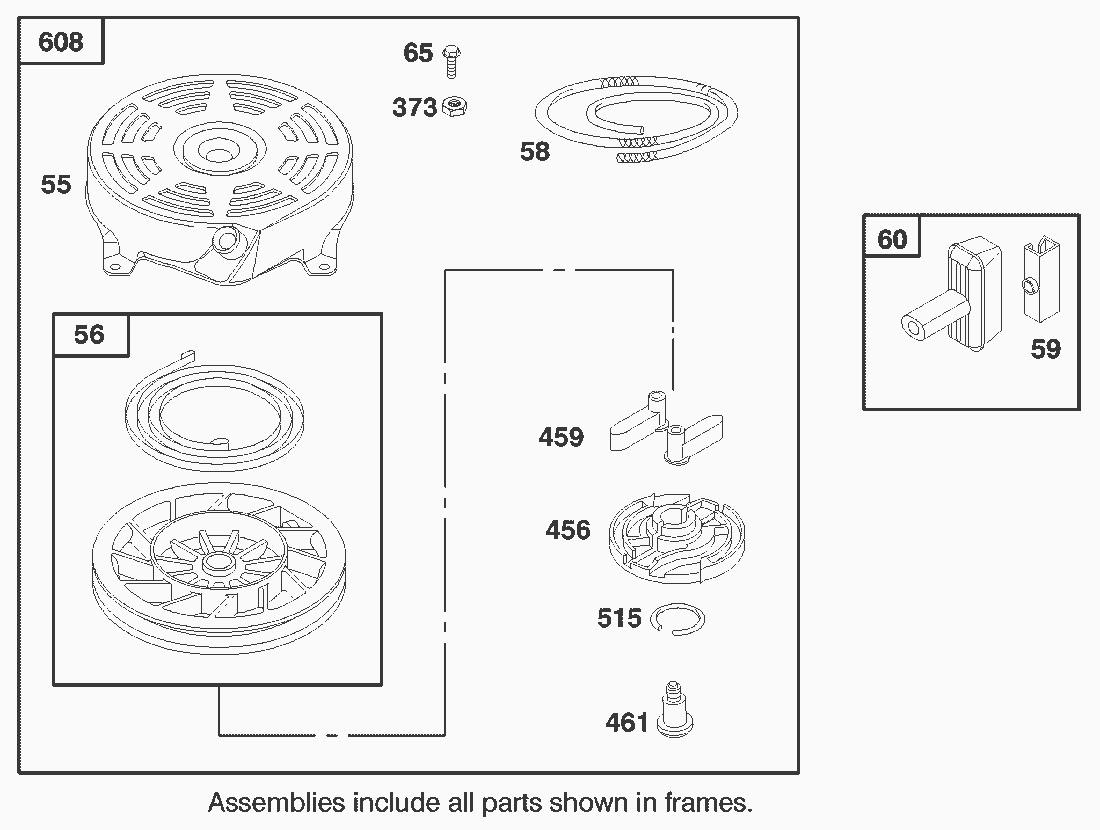

pos.descripciónNúmero de pieza
55Housing-Rewind Starter497440
56Pulley-Rewind Starter498144
58280399
59Insert-Rewind Handle224467
60Handle-Rewind Starter493926
65Screw-Hex.94904
373Nut-Hex.94908
456Retainer-Rewind Starter281503
459Pawl-Starter281505
461Pin-Starter94943
515Spring-Torsion263073
608Starter Assy.-Rewind497680
Lista de repuestos

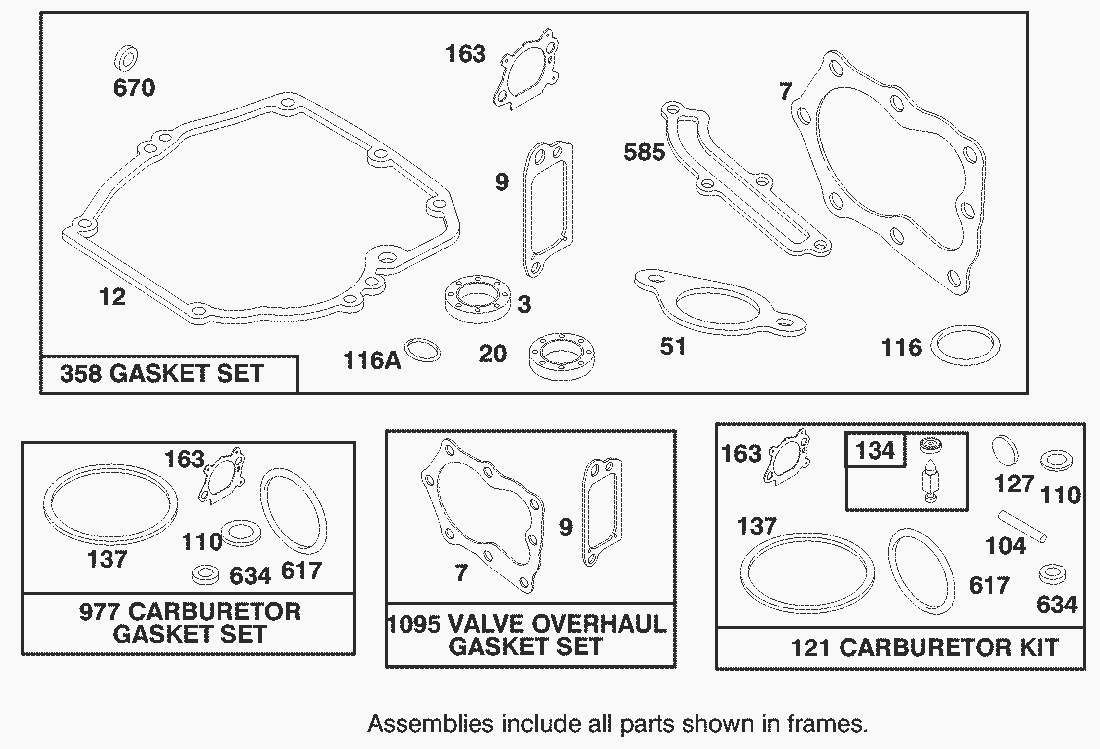

pos.descripciónNúmero de pieza
121Carburetor Kit498260
358Gasket Set497316
977Gasket Set-Carburetor498261
1095Gasket Set-Valve Overhaul498528
