Lista de repuestos para Toro Roth / TORO Engine B&S Model 127702-0115-01

pos.	descripción	Número de pieza
1	Cylinder Assembly	493260
2	Bushing-Cylinder Note: Requires special tools for installation.	293708
3	Seal-Oil	299819
5	Head-Cylinder	213861
7	Gasket-Cylinder Hd.	272200
8	Breather-Valve Chamber	495786
9	Gasket-Breather	272481
9	Gasket-Baffle Plate	272238
10	Screw-Hex. Head	94650
11	Tube-Breather	231933
13	Screw-Cylinder Hd.	94547
52	Gasket-Intake Elbow	272199
54	Screw-Intake Elbow Mtg.	94526
227	Lever Assembly-Governor	492349
230	Washer-Governor Crank	67072
284	Screw-Hex Head	94511
306	Shield-Cylinder	224324
307	Screw-Hex Head	94515
337	Plug-Spark (Resistor Type-1-7/8 high, 47 M.M.)(Model No. 38566 only)	802592
383	Wrench-Spark Plug	89838
523	Cap With Dipstick-Oil Filler	495264
524	Seal-Filler Tube	280393
525	Tube-Oil Filler	495265
562	Bolt, Governor Lever	92613
572	Baffle-Cylinder	224328
592	Nut-Hex.-10-24	231082
615	Pushnut (Governor Crank)	94474
616	Crank-Governor	262578
625	Tube-Fuel Intake	281085
635	Elbow-Spark Plug	66538
842	Seal-O-Ring	280966
847	Oil Fill Tube and Dipstick Assy.	495263
869	Seat-Intake Valve (Standard)	213512
870	Seat-Exhaust Valve (Standard)	213513
871	Guide-Exhaust Valve Note: 63709 Guide-Intake Valve See Repair Instruction Manual	262001
1019	Label Kit	494256

pos.	descripción	Número de pieza
163	Gasket-Air Cleaner	272653
529	Grommet-Breather	281299
966	Base-Air Cleaner	496116
967	Filter-Air	491588
968	Cover-Air Cleaner	281340
969	Screw-Cover Mtg.	94120
971	Screw-Backplate to Carburetor	94121

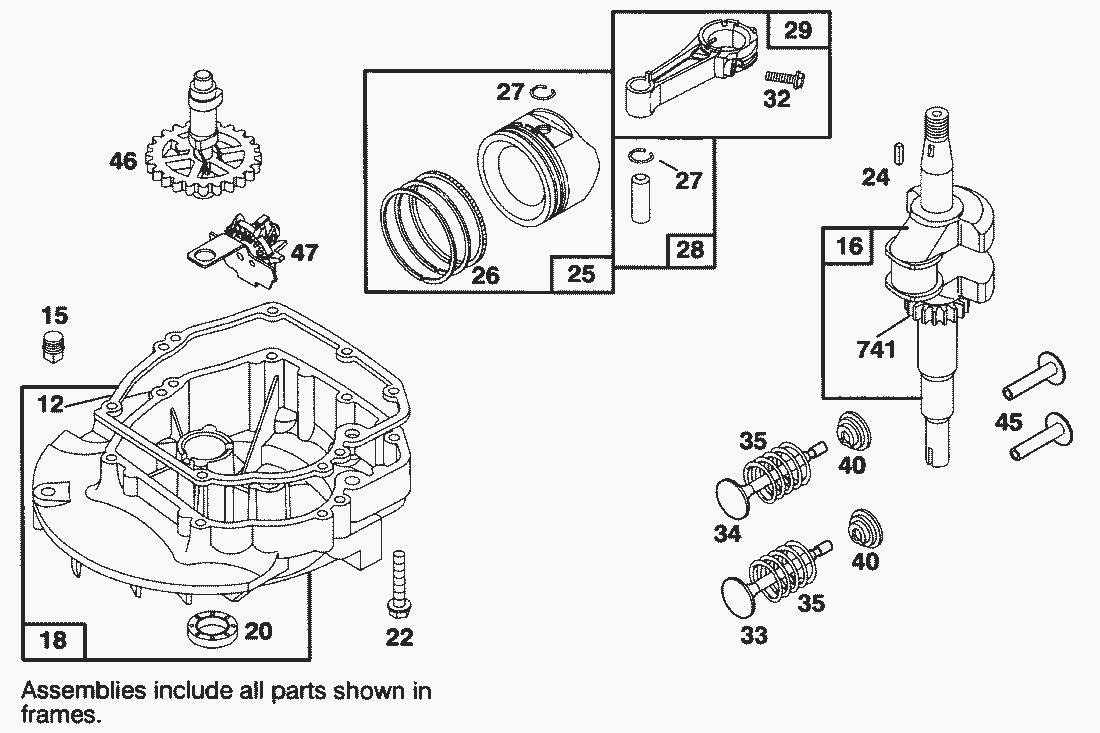

pos.	descripción	Número de pieza
12	Gasket-Crankcase	272198
15	Plug-Oil Drain	94720
16	Crankshaft Note: Order 94388 For Timing Gear Key.	494546
18	Sump-Engine	493279
20	Seal-Oil	399781
22	Screw-Sump Mtg. Sem	94220
24	Key-Flywheel	222698
25	Piston Assy.-Standard	493262
	Piston Assy.-.010 O.S.	493385
26	Ring Set-Std. Piston	493261
	Ring Set-.010 O.S. Piston	493388
	Ring Set-.020 O.S. Piston	493389
27	Lock, Piston Pin	26026
28	Pin Assy., Piston, Std.	298909
29	Rod Assembly-Connecting Note: For Connecting Rod with .020 undersize Crankpin Bearing-Order No. 490743	490566
32	Screw-Connecting Rod	94699
33	Valve-Exhaust	262651
34	Valve-Intake	262652
35	Spring-Valve	262224
40	Retainer, Valve Spring	93312
45	Tappet-Valve	262204
46	Gear-Cam	492830
47	Oil Slinger Gear and Brkt.	493737
741	Gear-Timing	262598

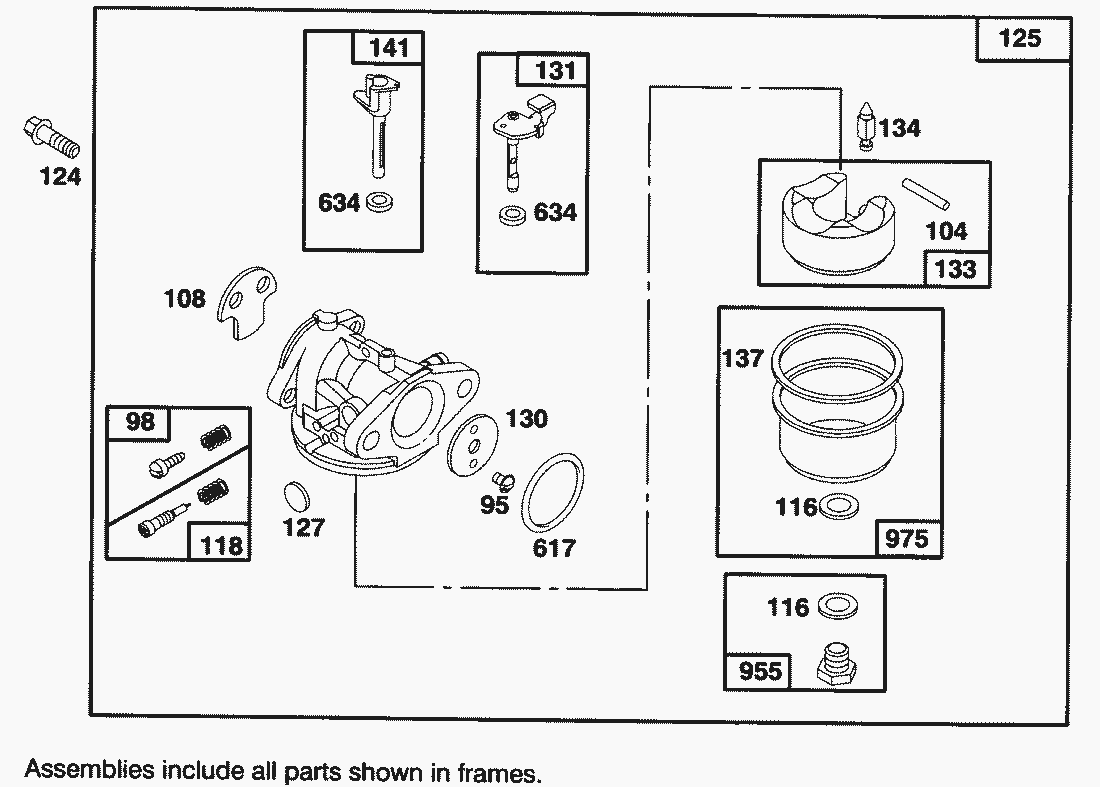

pos.	descripción	Número de pieza
95	Screw-Throttle Valve Mounting Sem	94098
98	Screw-Idle Adjustment	398185
104	Pin-Float Hinge	231371
108	Valve-Choke	223471
116
118	Valve and Spring-Needle	493765
124	Screw-Carburetor Mtg.	94525
125	Carburetor Assembly	494217
127
130	Valve-Throttle	223470
131	Shaft and Lever-Throttle	493267
133	Float Assy.-Carburetor	398187
134	Valve-Inlet (Includes Seat)	398188
137
141	Shaft-Choke	494218
617	Seal-Fuel Intake Tube	270344
634
955	Screw-Fuel Bowl	493869
975	Bowl Assembly-Carburetor	493640

pos.	descripción	Número de pieza
23	Flywheel-Magneto	492177
37	Guard-Flywheel	224511
38	Screw-Hex. Washer Hd.	94786
304	Housing-Blower	493294
305	Screw-Hex. Washer Hd.	94786
332	Nut-Flywheel	92284
333	Armature-Magneto	802574
334	Screw-Armature Mounting	94731
356	Wire-Ground	398808
363	Flywheel Puller (Optional Accessory)	19069
455	Cup-Starter	224250
851	Terminal-Ignition Cable	221798

pos.	descripción	Número de pieza
81	Lock-Muffler Screw	223664
187	Hose-Fuel (Cut To Suit)	492790
188	Screw-Tank Mounting (Includes Washer)	398540
300	Muffler-Exhaust	490547
346	Screw-Sem	93705
601	Clamp-Hose (For 1 /2 O. D. Hose)	93807
613	Screw-Muffler Mtg.	94231
670	Spacer-Fuel Tank	280512
676	Deflector-Muffler	493871
949	Guard-Finger	281136
957	Cap Assy-Fuel	397974
972	Tank-Fuel	495509
