> Roth / TORO > Hand operated > Lawnmower > 4-stroke SP > 417/20827 > 200000001 > Engine B&S Model 123607-0153-E1

Lista de repuestos para Toro Roth / TORO Engine B&S Model 123607-0153-E1


Lista de repuestos 1
Lista de repuestos 2
Lista de repuestos 3
Lista de repuestos 4
Lista de repuestos 5
Lista de repuestos 6
Lista de repuestos 7
Lista de repuestos 8
Lista de repuestos 9
Lista de repuestos 10
Lista de repuestos 11

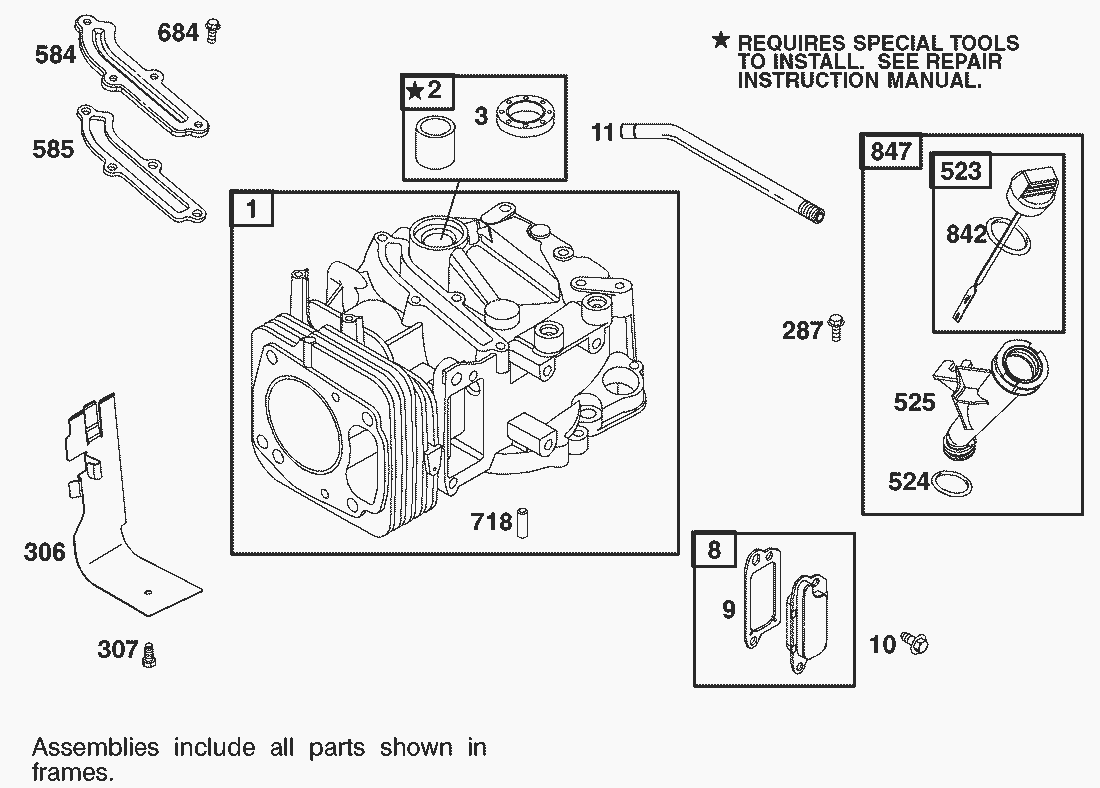

Lista de repuestos


pos.descripciónNúmero de pieza
1Cylinder Assembly99-0900
2Bushing99-0911
3Seal-Oil77-9060
8Breather Assy77-9260
9Gasket-Breather99-0913
10Screw-Hex.99-0914
11Tube-Breather99-0915
523Dipstick100-9146
306Lever Assembly-Gov.99-0917
842Seal-Intake Elbow77-7270
524Seal-O Ring77-7300
307Screw-Hex.99-0920
585Gasket-Breather77-7410
525Tube-Oil Filler99-0906
718Dowel-Sleeve77-7600
584Baffle-Cylinder99-0922
847Dipstick Tube ASM98-9209
684Screw-Hex.99-0920
287Screw-Hex.99-0927

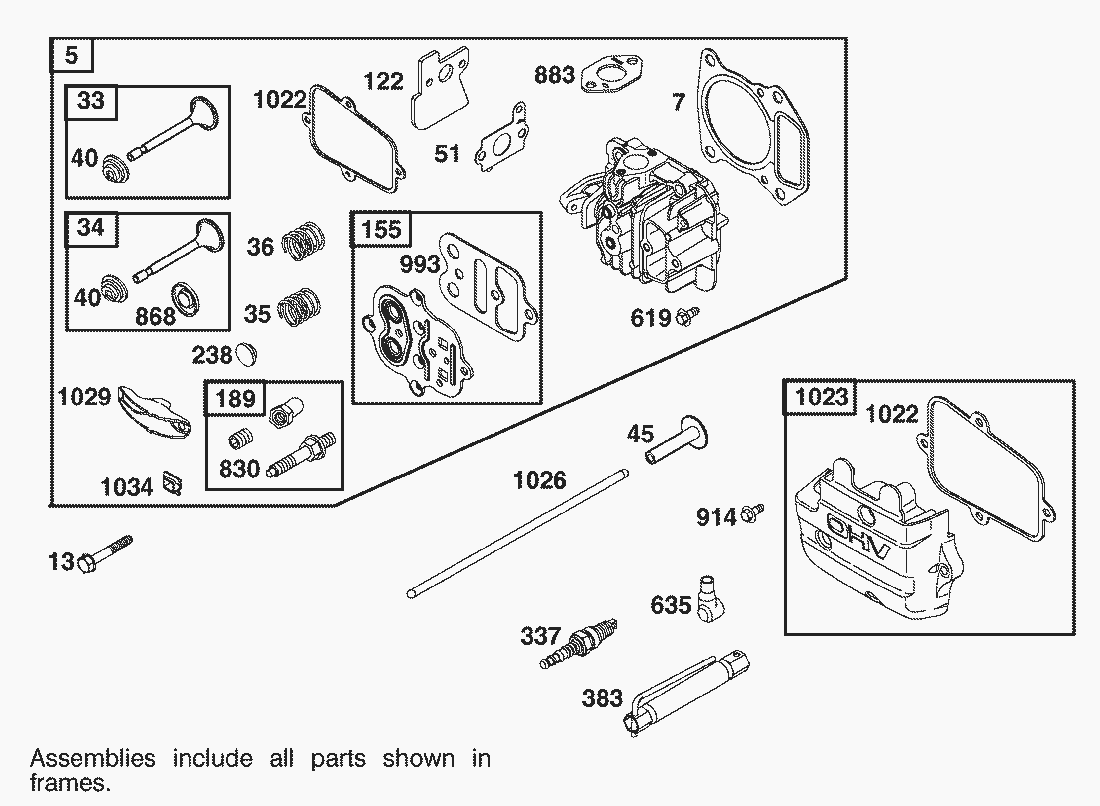

Lista de repuestos


pos.descripciónNúmero de pieza
5Head-Cylinder99-0929
7Gasket-Cylinder Head99-0930
13Screw-Hex.99-0931
33Valve-Exhaust99-0932
34Valve-Intake99-0933
35Spring-Valve99-0934
40Retainer-Valve Spring99-0935
45Tappet-Valve99-0936
155Plate-Cylinder Head99-0938
189Ball-Rocker Arm99-0939
238Cap-Valve99-0940
914Screw-Rocker Cover100-9147
337Plug-Spark77-7330
383Wrench-Spark Plug99-0944
635Elbow-Spark Plug77-9190
830Stud-Rocker Arm99-0945
619Screw-Hex.99-0941
868Seal-Valve99-0946
883Gasket-Exhaust99-0947
36Spring-Valve99-0934
1022Gasket-Rocker Cover99-0907
1023Cover-Rocker98-9211
1026Rod-Push99-0949
1029Arm-Rocker99-0950
1034Guide-Push Rod99-0951
993Gasket-Plate99-6264
51Gasket-Intake99-0968
122Gasket-Intake99-0978

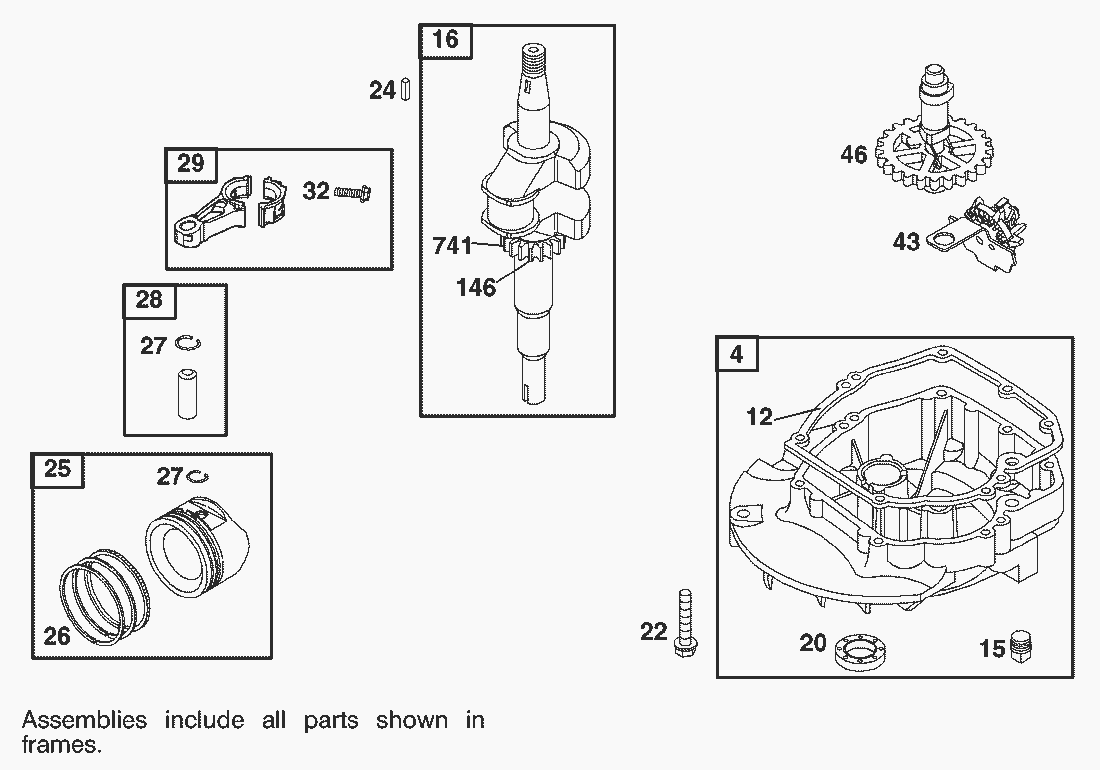

Lista de repuestos


pos.descripciónNúmero de pieza
4Sump-Engine99-0952
12Gasket-Crankcase99-0953
15Plug-Oil Drain99-0954
16Crankshaft98-9214
24Key-Flywheel77-8340
20Seal-Oil99-0955
22Key-Flywheel99-0957
25Piston Assy. (Standard)99-0958
26Ring Set (Standard)99-0959
27Lock-Piston Pin99-0960
28Pin-Piston (Standard)99-0961
29Rod-Connecting99-0962
32Screw-Connecting Rod99-0963
43Governor/Oil Slinger99-0964
46Gear-Cam99-0965
146Key-Timing99-0966
741Gear-Timing99-0967

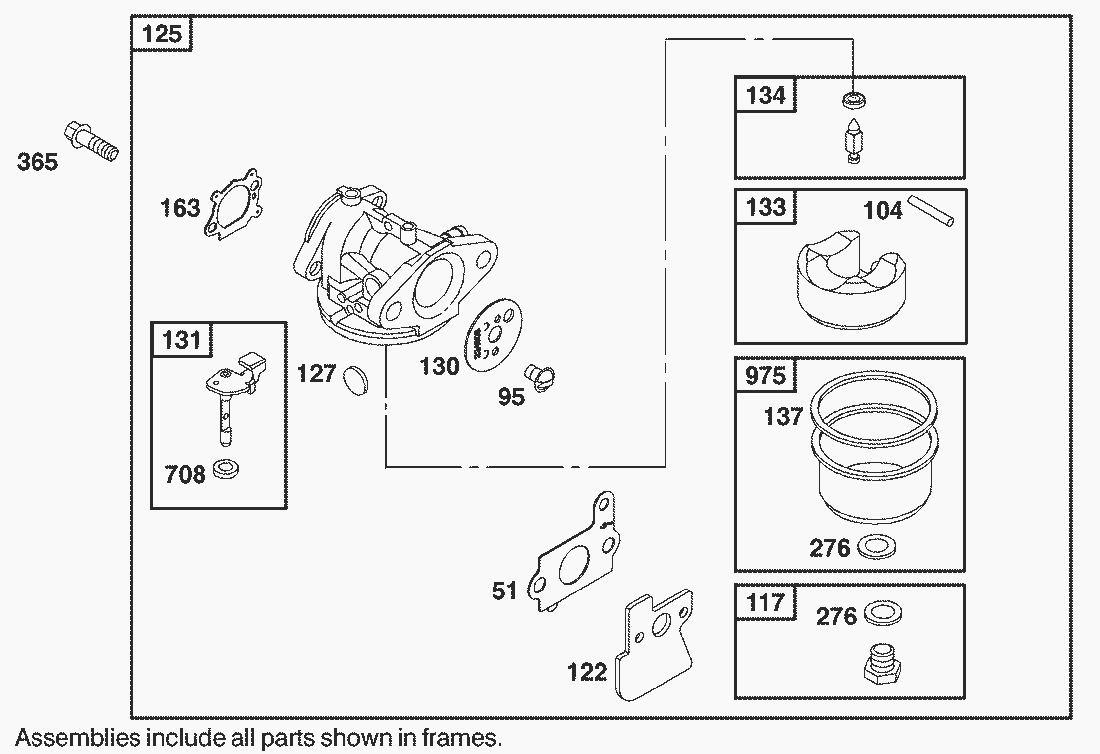

Lista de repuestos


pos.descripciónNúmero de pieza
95Screw-Slotted99-0969
104Pin-Float Hinge99-0970
117Jet-Main (Std.) Note: 99-1041 Jet-Main(High Altitude) 199-0971
708Seal-Dust100-5037
125Carburetor99-0973
130Valve-Throttle99-0974
131Shaft-Throttle99-0975
276Washer-Sealing100-5038
134Valve-Float (Includes Seat)77-8110
163Gasket-Air Cleaner99-0976
975Bowl-Float99-0977
133Float-Carburetor77-8170
365Screw-Shoulder99-0972
127Plug-Welch100-9107
137Gasket-Float Bowl104-7550

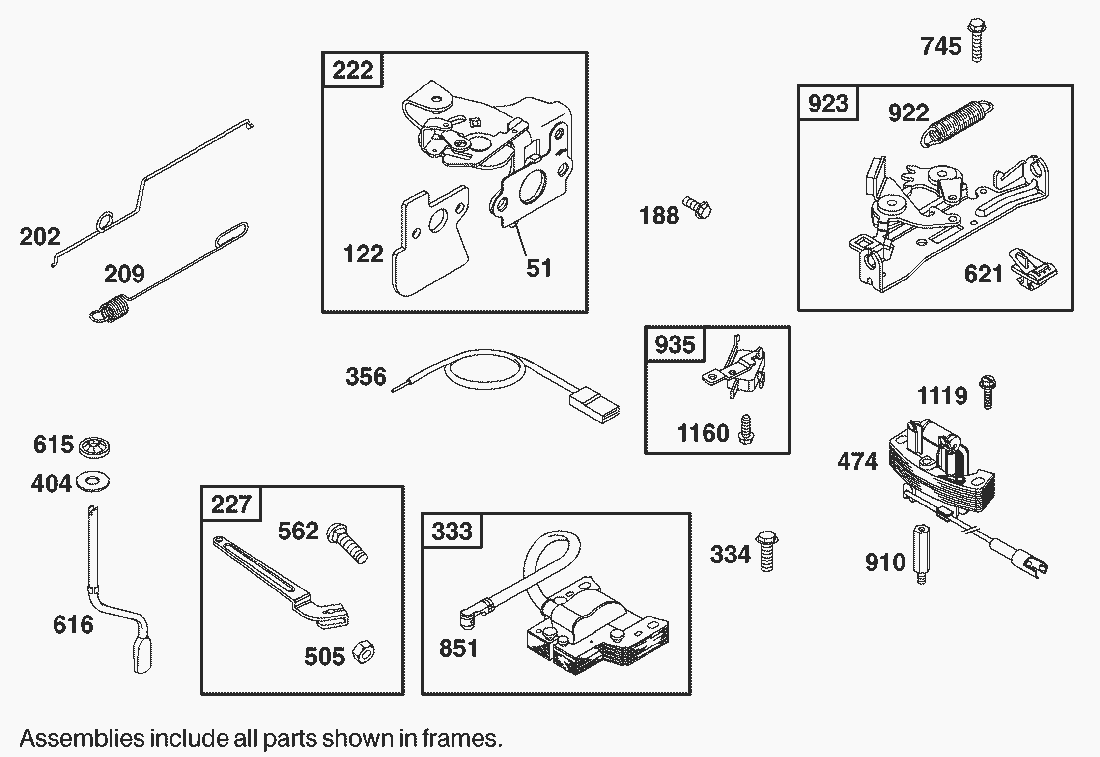

Lista de repuestos


pos.descripciónNúmero de pieza
222Bracket-Control100-2891
910Stud-Stator Mounting99-1014
202Link-Governor99-0981
188Screw-Control Bracket100-5031
745Screw-Hex.99-0983
474Alternator99-1011
356Wire-Stop99-1007
334Screw-Hex.99-1006
935Switch-Interlock100-9109
851Terminal-Spark Plug77-9450
333Armature-Magneto99-1005
922Spring-Brake99-0987
923Brake Assembly99-0988
621Switch-Stop99-0986
1160Screw-Hex Head77-9520
227Lever Assembly-Gov.99-0917
404Washer-Gov. Crank99-0918
562Screw-Hex.99-0921
505Nut-Hex.99-0924
615Fastener99-0925
616Crank-Governor99-0926
209Spring-Governor99-0982
1119Screw-Alternator104-7551

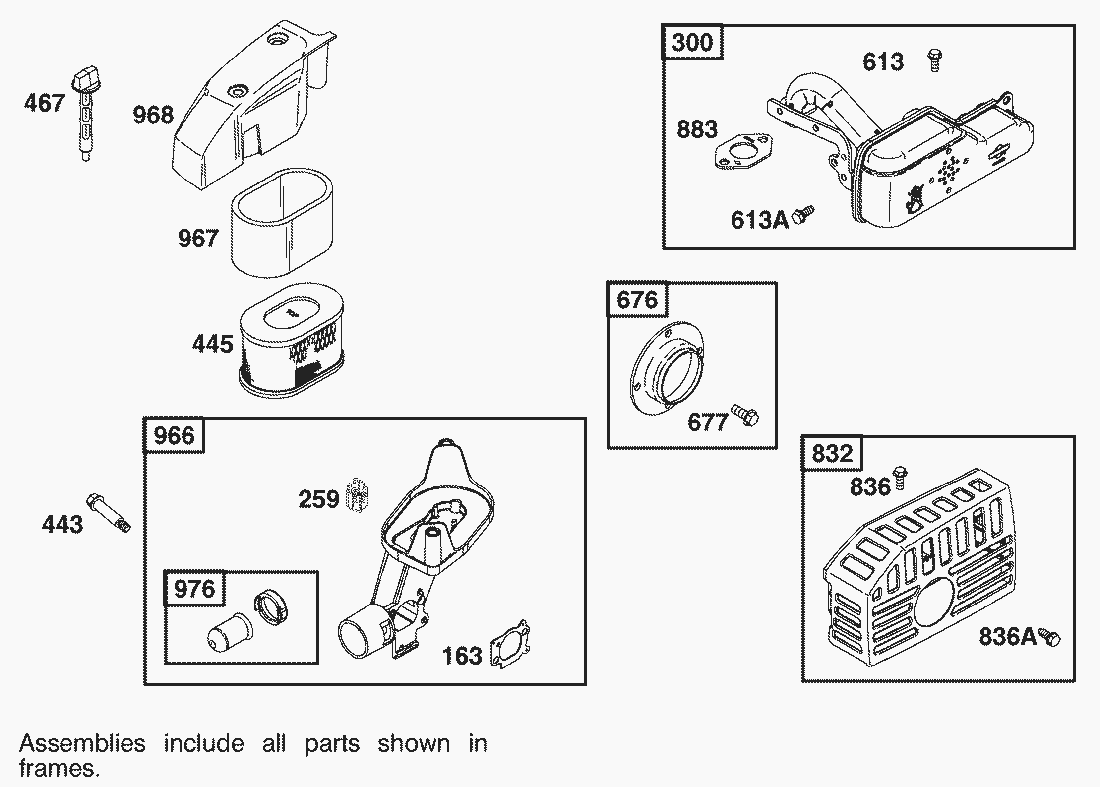

Lista de repuestos


pos.descripciónNúmero de pieza
467Knob-Air Cleaner100-9108
677Screw100-9148
836Screw-Hex.94-1674
968Cover-Air Cleaner98-9207
445Filter-Air98-9212
966Base-Air Cleaner/Primer99-0979
613Screw-Hex.99-1047
836Screw-Hex.99-0999
300Muffler-Exhaust99-0995
259Grommet99-0984
967Filter-Air99-0989
676Deflector-Muffler99-1044
832Guard-Muffler98-9206
613Screw-Hex.99-0941
443Screw-Hex.99-0990
976Primer-Carburetor99-0991

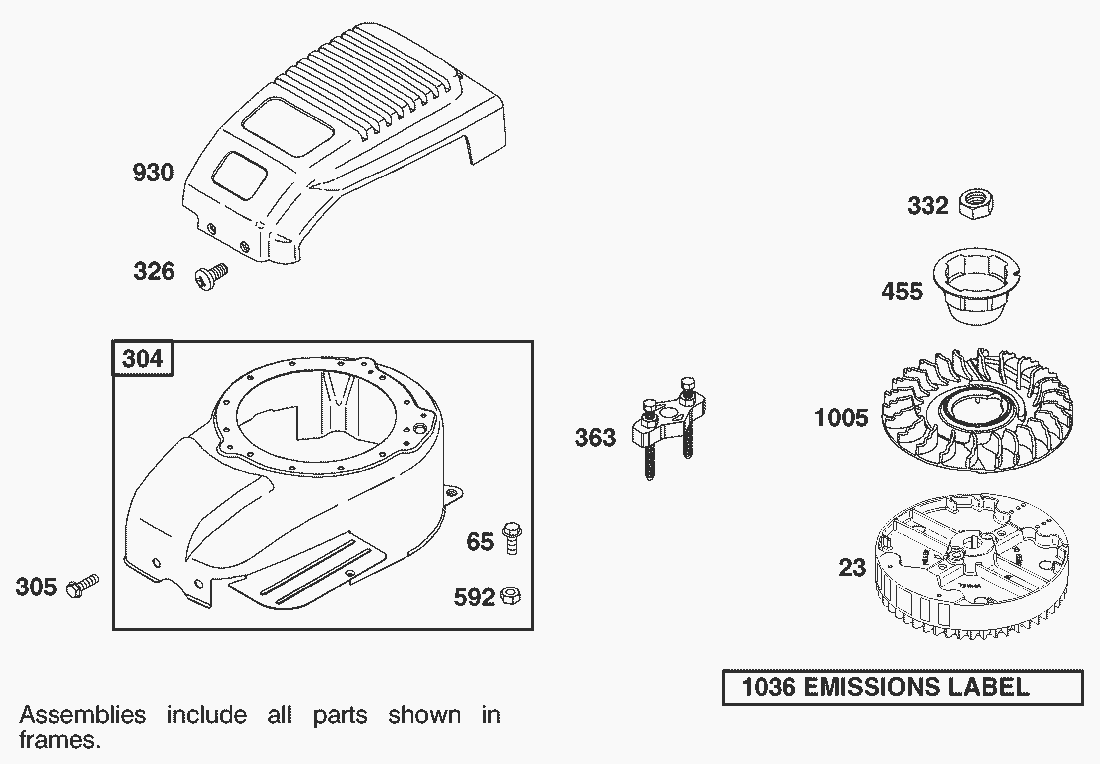

Lista de repuestos


pos.descripciónNúmero de pieza
23Flywheel99-1001
332Nut-Flywheel94-1673
65Screw-Hex.99-1002
304Housing-Blower99-1003
930Guard-Rewind98-9203
1036Label Kit-Emission99-1016
1005Fan-Flywheel99-1015
326Screw-Sternantriebê98-9204
363Puller-Flywheel99-1008
592Nut-Hex.99-1009
455Cup-Flywheel99-1010
305Screw-Hex.99-0941

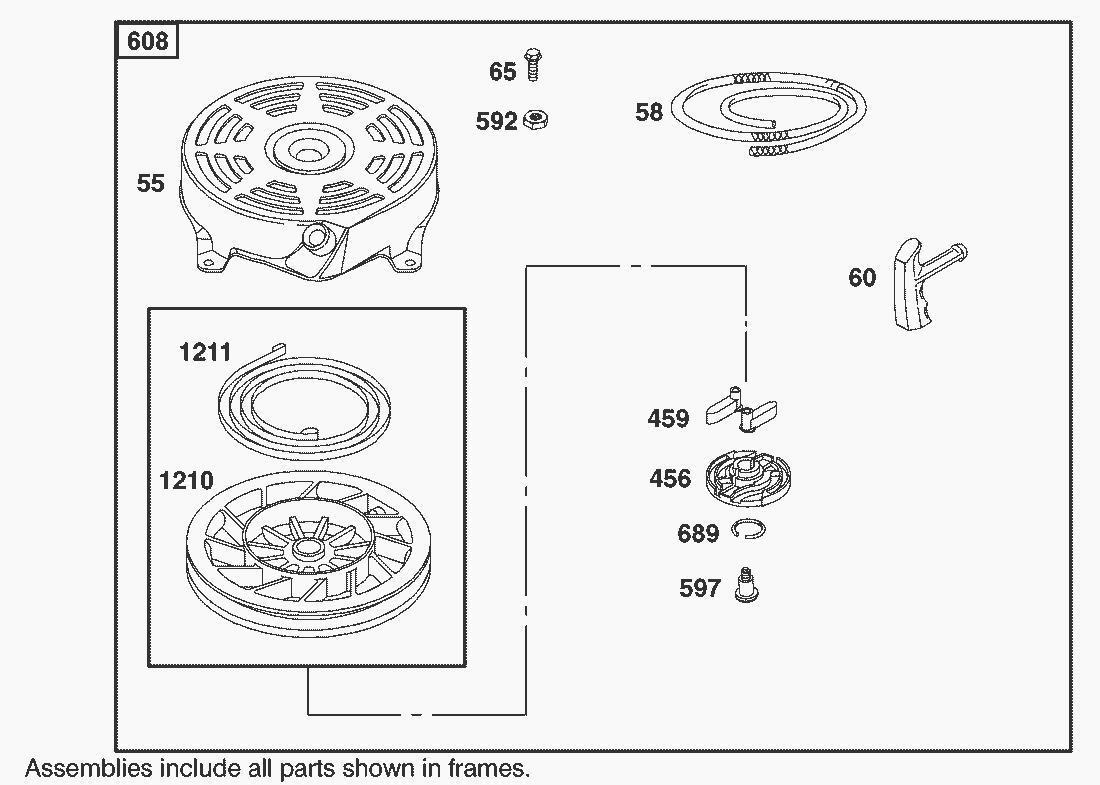

Lista de repuestos


pos.descripciónNúmero de pieza
55Housing-Rewind Starter99-1048
58Rope-Starter (Cut To Suit)94-1668
592Nut (Rewind Starter)100-9149
60Grip-Starter Rope77-8510
1210Pulley-Rewind Starter94-1657
1211Pulley-Rewind Starter94-1657
456Retainer-Rewind Starter94-1659
459Pawl-Starter94-1654
597Screw-Rewind Starter94-1660
689Spring-Torsion94-1655
608Starter-Rewind98-9215

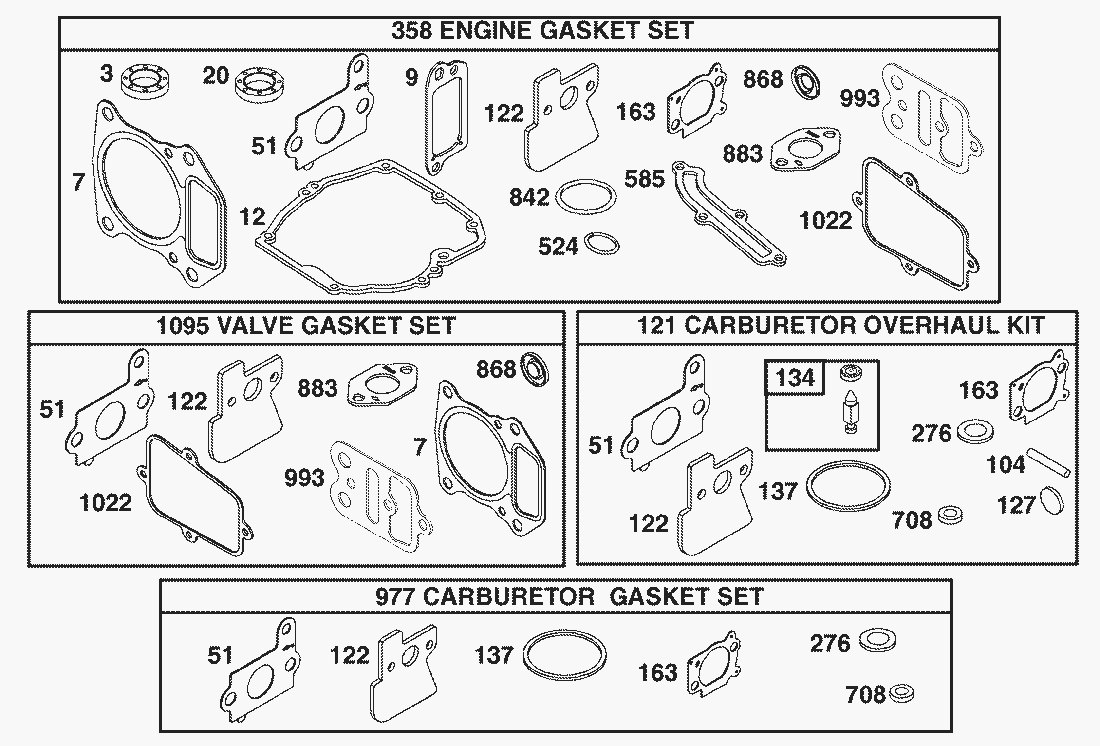

Lista de repuestos


pos.descripciónNúmero de pieza
3Seal-Oil99-0912
1095Valve Overhaul Gasket Set100-5033
977Gasket Set-Carburetor100-5034
358Engine Overhaul Gasket Set100-5035
121Carburetor Kit100-5036
585Fastener99-0925
993Gasket-Plate99-0948
Lista de repuestos


pos.descripciónNúmero de pieza
309Motor-Starter77-8670
310Screw-Slotted Hex.99-1019
510Drive Kit77-8910
513Clutch-Drive99-1021
544Armature-Starter99-1022
545Washer Set77-8740
651Screw-Hex.99-1017
697Screw-Hex.99-1018
742Retainer-Lock77-8830
783Gear-Starter99-1023
783Gear-Starter99-1024
784Cover-Gear99-1025
785Gasket-Cover99-1026
801Cap-Drive99-1027
802Cap-End99-1028
803Housing-Starter99-1029
937Spline-Starter99-1030

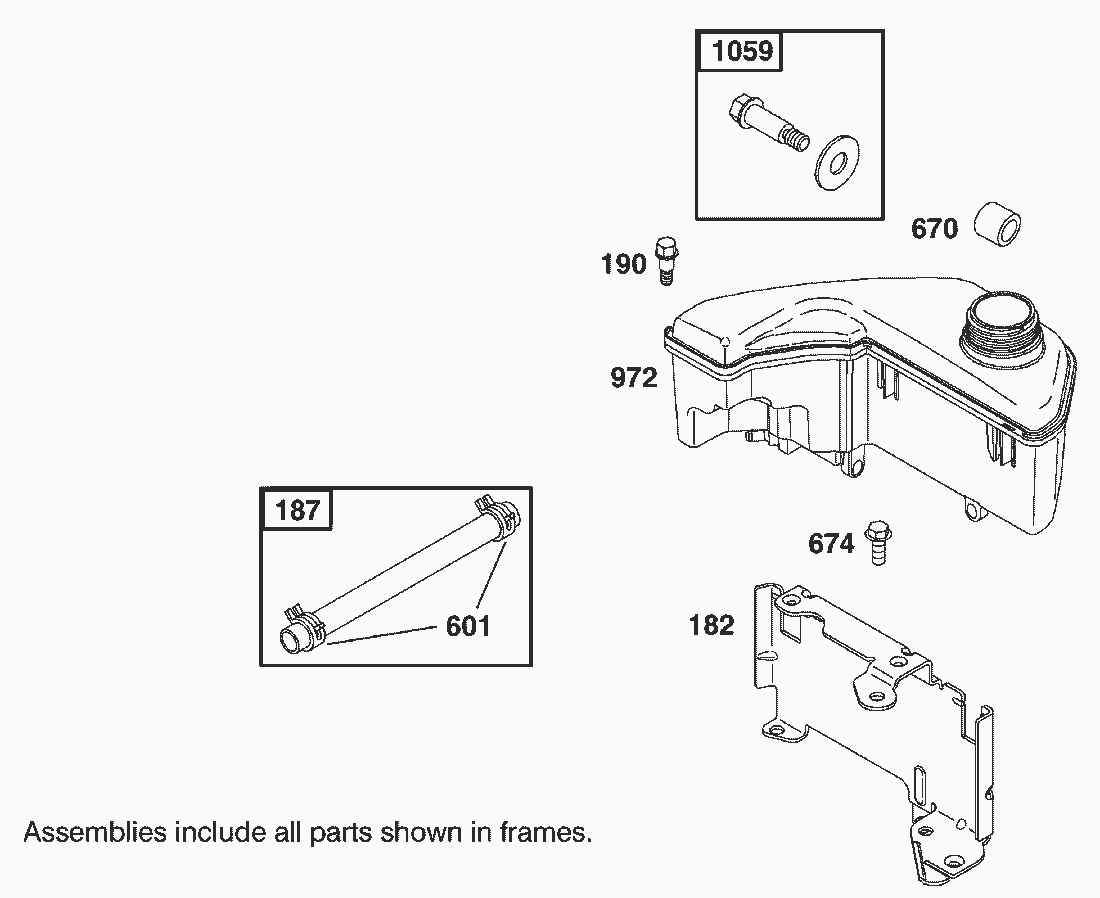

Lista de repuestos


pos.descripciónNúmero de pieza
601Clamp-Fuel Hose78-4690
674Screw-Hex.98-9202
182Bracket-Tank Mounting98-9205
187Line-Fuel (Cut to Required Length)99-0992
1059Screw-Shoulder99-0993
190Screw-Hex.99-0994
670Spacer-Fuel Tank99-0997
972Tank-Fuel99-1000
