> Roth / TORO > Ride-On Mowers > Traktor > 13-38 XL > 391/71208 > 7900001 > Engine B&S MODIL 28M707-0127-01

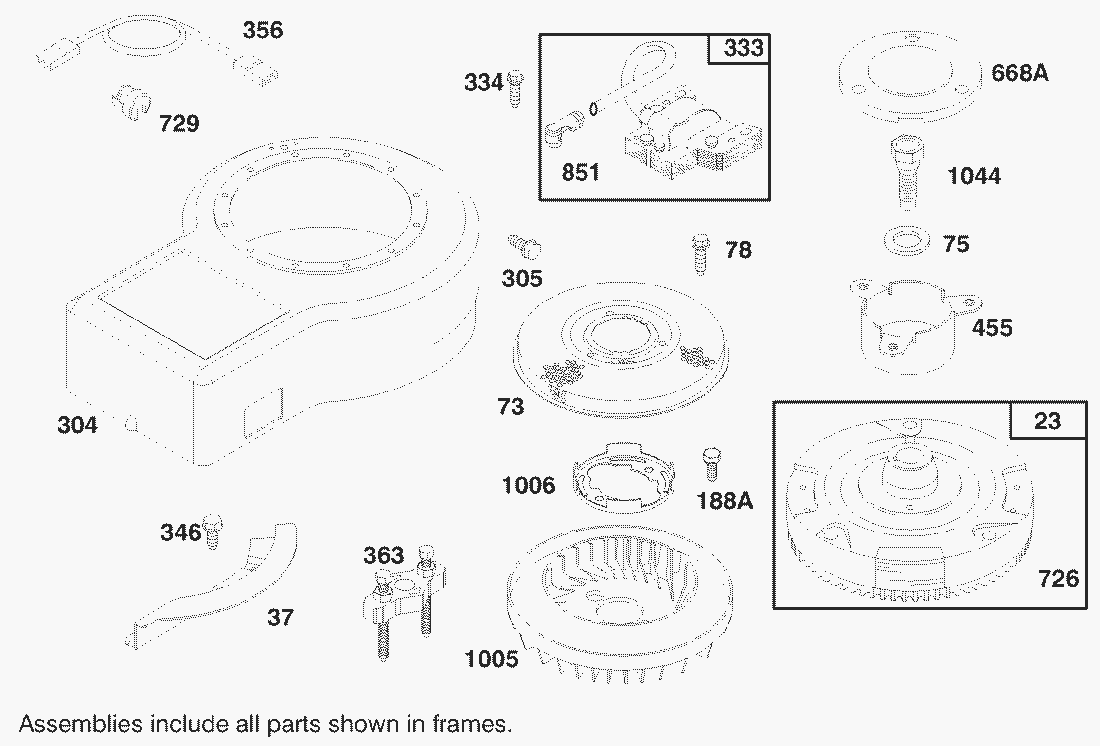

Lista de repuestos para Toro Roth / TORO Engine B&S MODIL 28M707-0127-01




Lista de repuestos


pos.descripciónNúmero de pieza
23Flywheel and Ring Gear492326
37Guard-Flywheel224502
73Screen-Flush Rotating224948
75Washer-Spring224061
78Screw94626
188Screw94627
304Housing-Blower496431
305Screw-Hex. Washer Hd.94786
333Armature-Magneto492341
334Screw, Breaker Arm Mtg. Sem93381
346Screw-Sem93705
356Wire-Ground494328
363Puller-Flywheel(Optional Accessory)19203
455Cup-Screen Mounting222561
668Spacer280848
726Gear-Flywheel Ring (Includes Mounting Parts)392134
729Clip-Relief281159
851Terminal-Ignition Cable493880
1005Fan-Flywheel281355
1006Retainer-Fan224413
1044Screw-Hex. Head94673
