> Roth / TORO > Ride-On Mowers > Traktor > 12-32 XL > 390/71201 > 8900001 > Engine B&S MODE 283707-1156-E1

Lista de repuestos para Toro Roth / TORO Engine B&S MODE 283707-1156-E1

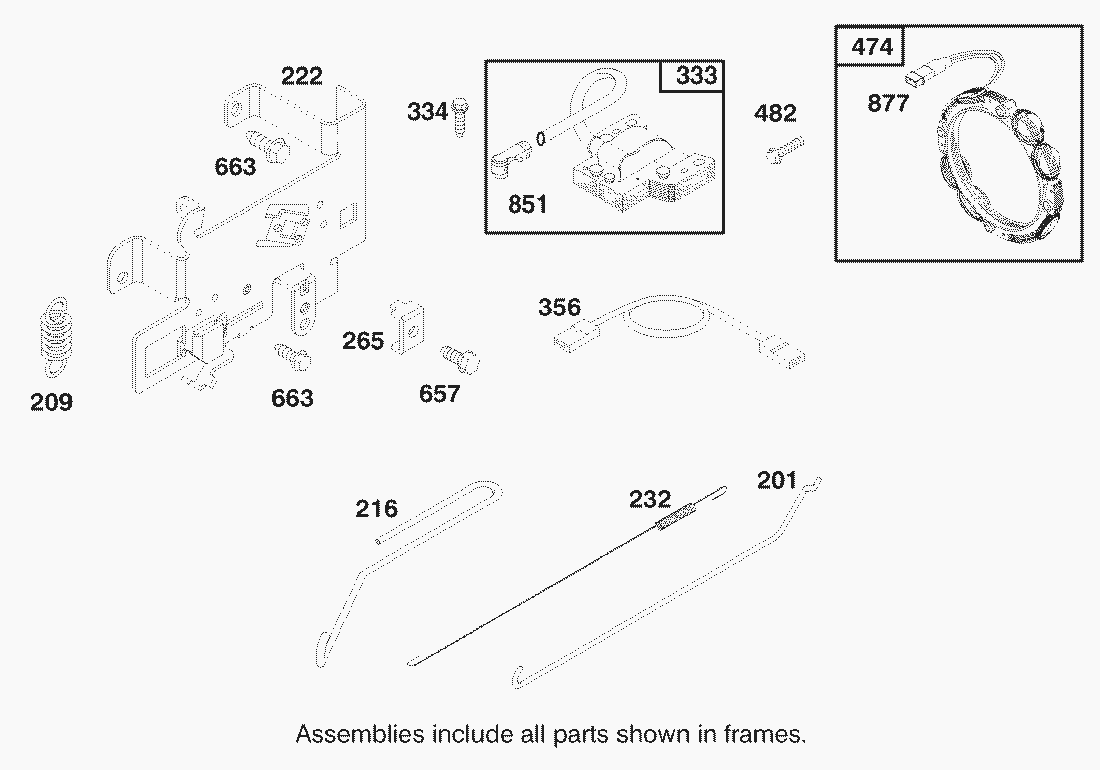

Lista de repuestos


pos.descripciónNúmero de pieza
201Link-Governor262767
209Spring-Governor260871
216Link-Choke262766
222Plate-Governor Control495611
232Spring-Governor Link262785
265Clamp, Casing221535
333Armature-Magneto492341
334Screw-Armature Mounting94731
356Wire-Ground494328
474Stator-Alternator (Dual Circuit)393474
482Screw-Sem93621
657Screw-Sem94906
663Screw-Hex. Hd.94929
851Terminal-Ignition Cable493880
877Diode and Connector Assy. (Dual Circuit)393456
