> Roth / TORO > Ride-On Mowers > Rider > 110-4E > 300/R3-10B404 > 39000001 > Engine Assy.

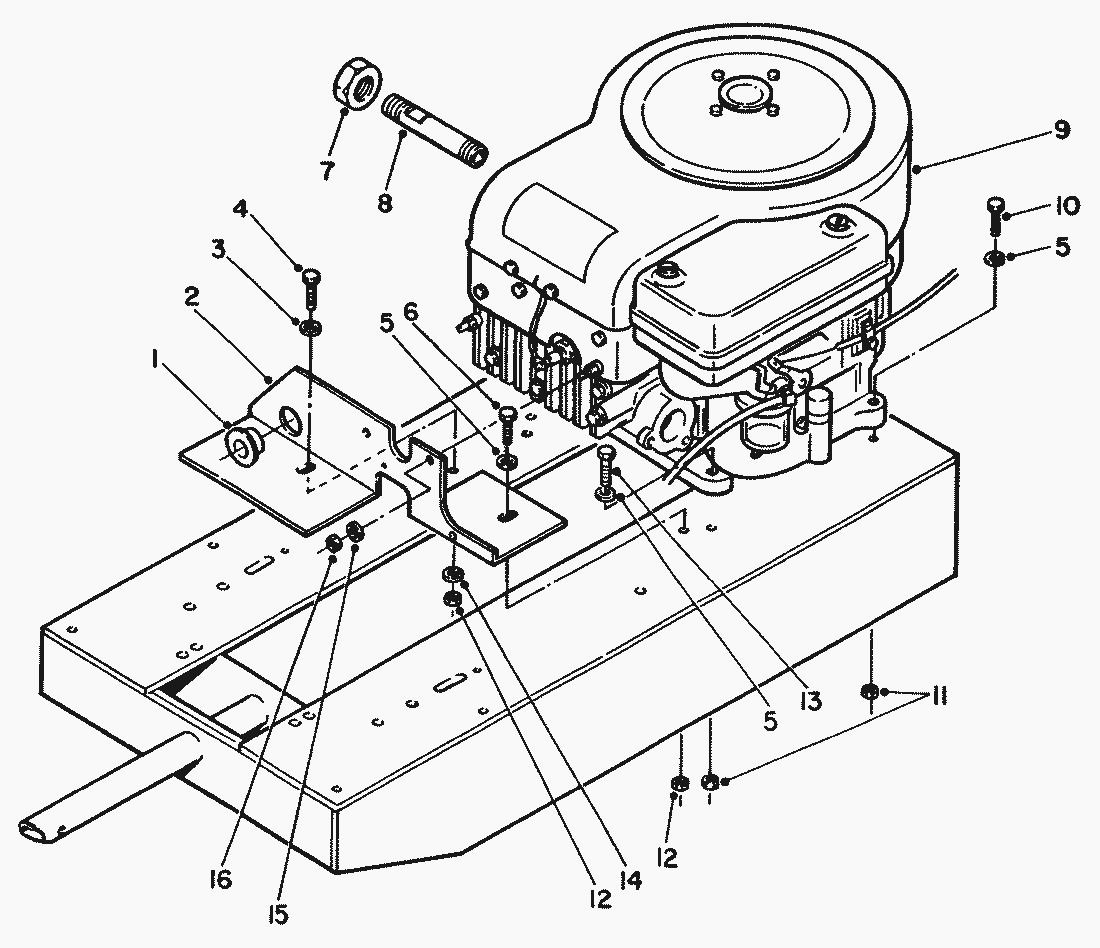

Lista de repuestos para Toro Roth / TORO Engine Assy.




Lista de repuestos


pos.descripciónNúmero de pieza
1Bushing938031
2Bracket-Engine Head (110-4E Model)115962
Bracket-Engine Head (112-6E Model)117269
3Flat Washer3256-24
4Screw-Cap Hex Hd.323-7
5Washer3256-66
6Bolt323-13
7Cap-Pipe5224
8Pipe-Drain112676
9
10Capscrew322-9
11MUTTER3296-29
12Locknut3296-39
13Capscrew322-7
14Washer-Special2844
15Lockwasher3253-4
16Hex Nut3217-6
