> Roth / TORO > Ride-On Mowers > Traktor > 13-32 XLE > 390/71209 > 9900001 > Electrical Components

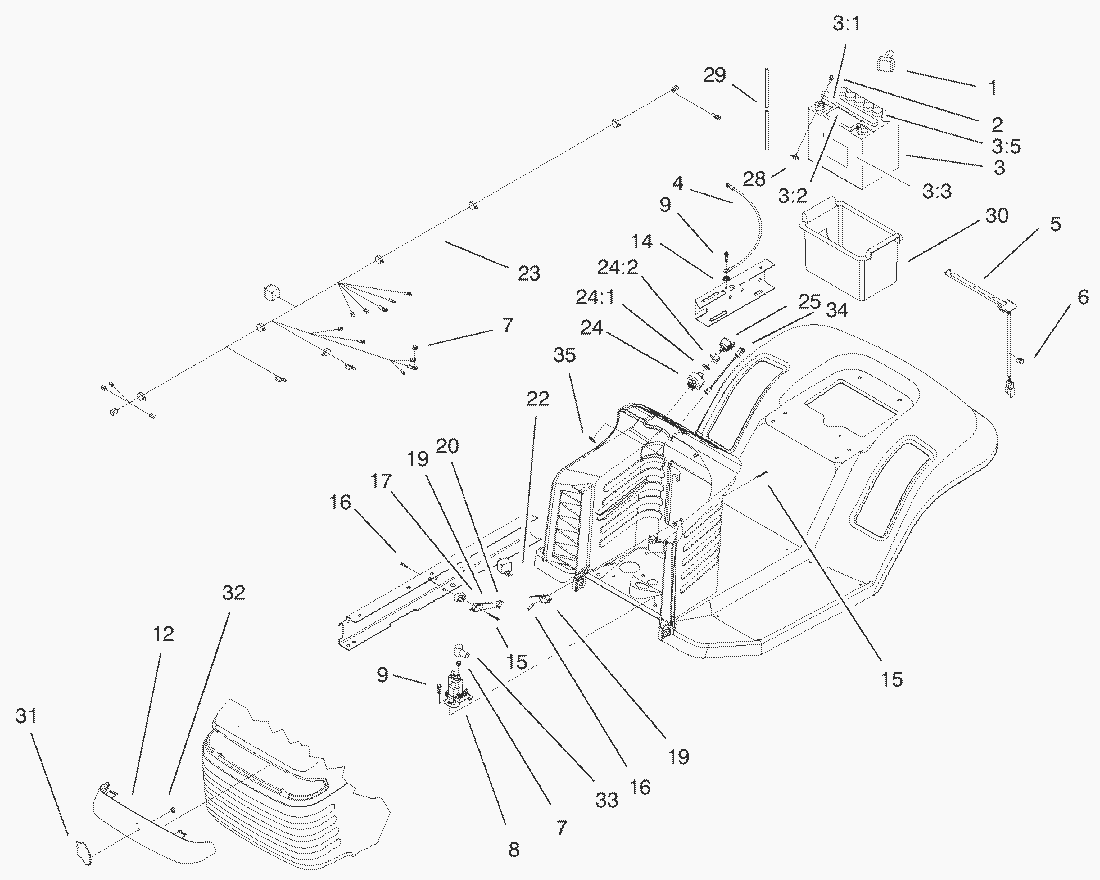

Lista de repuestos para Toro Roth / TORO Electrical Components




Lista de repuestos


pos.descripciónNúmero de pieza
1Boot-Battery Terminal28-8080
2Capscrew321-4
3Battery-7 Plate80-2600
31Decal-Battery93-9354
32Decal Danger (Only On: 72064)93-7276
33Decal-Battery93-6668
35Cap-Battery218-560
4Cable-Battery Negative44-8110
5Switch-Seat38-1420
6Clip-Wire Retainer702366
7Locknut32149-2
8Solenoid-12 Volt (Only On: 72043, 72042, 72063, 72062)92-9845
9Screw-HWHTF9266714
12Lens-Headlights88-3960
14Lockwasher3255-7
15Screw (Only On: 72103)93-0539
16Speed Nut3290-354
17Spacer-Microswitch88-4880
19Switch-Micro88-9932
20Seal-Plunger93-3240
22Relay (Only On: 73470)98-7249
23Harness-Wire99-2978
24Switch-Ignition88-9830
241Lockwasher3254-5
242Hex Nut218-461
25Key-Ignition63-8360
28Nut-Wing32103-22
29Vent-Tube56-2540
30Box-Battery88-4040
31Plate-Grille Panel80-2240
32Nut-Tinnerman3290-299
33Boot-Terminal Insulator94-5362
34Light-Indicator95-7652
35Clip-Retainer99-6059
