> Roth / TORO > Ride-On Mowers > Traktor > 16-38 XLE > 358/71226 > 210000001 > Electrical Assy.

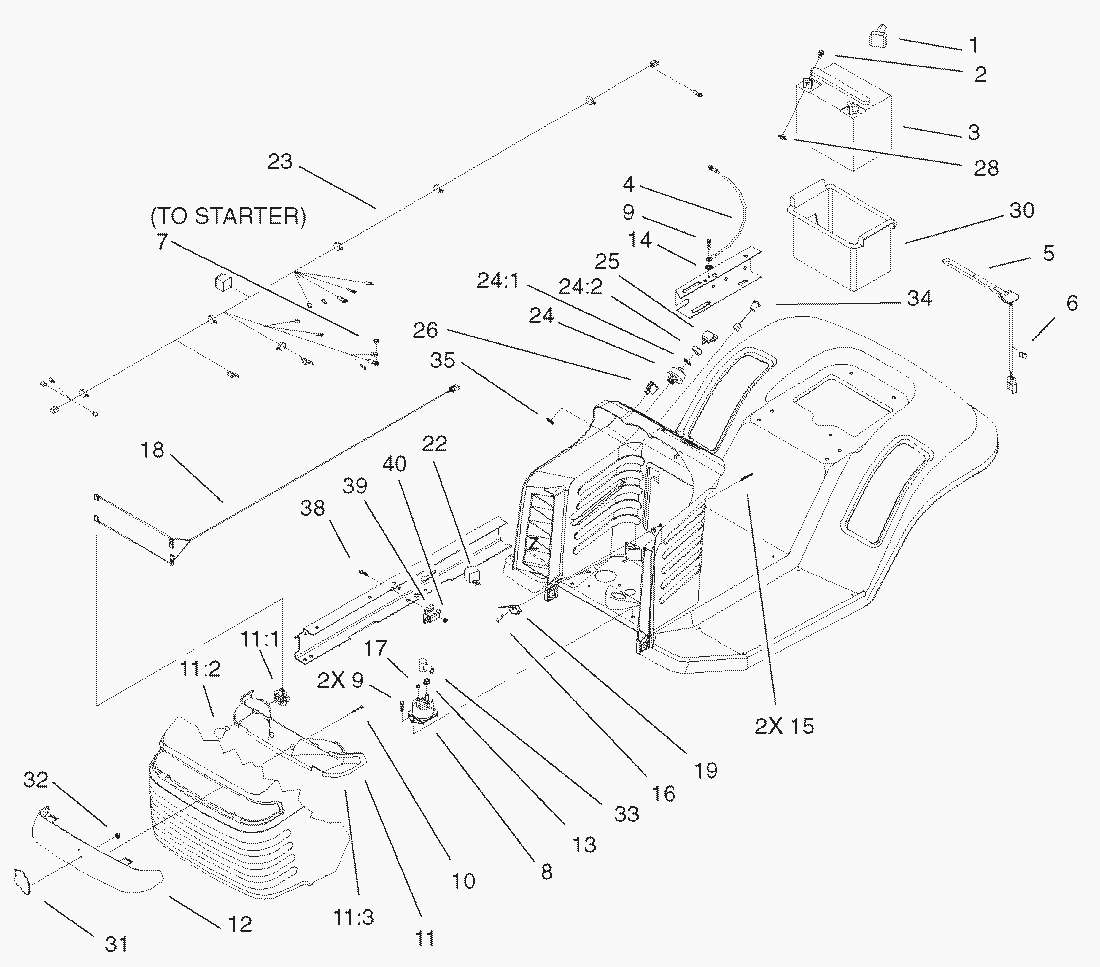

Lista de repuestos para Toro Roth / TORO Electrical Assy.




Lista de repuestos


pos.descripciónNúmero de pieza
1Boot-Battery Terminal28-8080
2Capscrew321-4
3Battery-155 Cca104-1755
4Cable-Battery Negative44-8110
5Switch-Seat38-1420
6Clip-Wire Retainer702366
7Locknut32149-2
8Solenoid28-4210
9Screw-HWHTF9266714
10Screw-Plastite32144-32
11Reflector & Lamp88-3970
111Socket Assembly111686
112Light Bulb7228
113Reflector-Headlight93-8741
12Lens-Headlights88-3960
13Locknut32149-1
14Lockwasher3255-7
15Screw (Only On: 72103)93-0539
16Speed Nut3290-354
17Keps Nut32149-8
18Harness-Headlight99-1935
19Switch-Micro88-9932
22Relay (Only On: 73470)98-7249
23Harness-Wire, Gear99-6841
24Switch-Ignition88-9830
241Lockwasher3254-5
242Hex Nut218-461
25Key-Ignition63-8360
26Switch-Rocker92-8875
28Nut-Wing32103-22
30Box-Battery88-4040
31Plate-Grille Panel80-2240
32Nut-Tinnerman3290-299
33Boot-Terminal Insulator94-5362
34Light-Indicator95-7652
35Clip-Retainer99-6059
38Screw-HSH (Only On: 73470)3274-14
39Switch-Single Pole (Only On: 73470)65-7410
40Nut3296-2
