> Roth / TORO > Hand operated > Lawnmower > 4-stroke SP > 493/20783 > 220000001 > Electric Start System Assy. (only on: 20784)

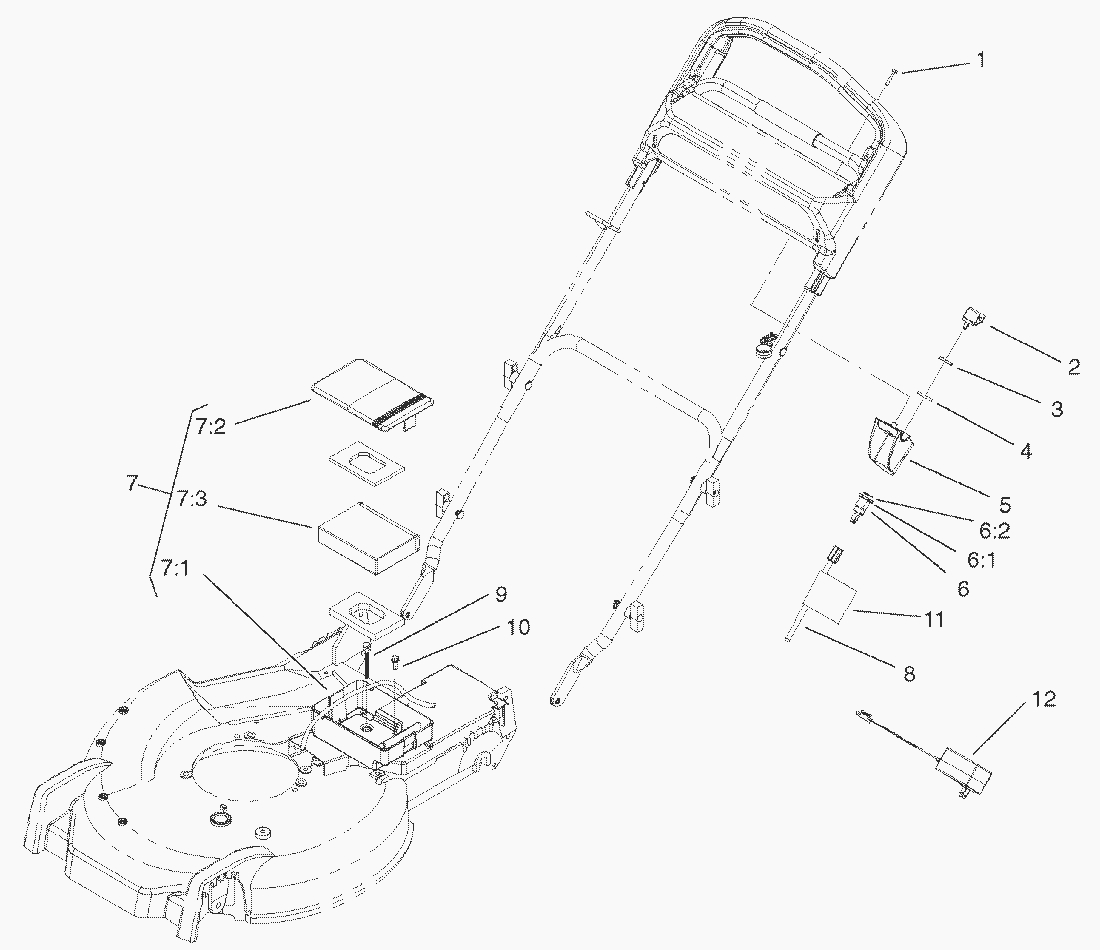

Lista de repuestos para Toro Roth / TORO Electric Start System Assy. (only on: 20784)




Lista de repuestos


pos.descripciónNúmero de pieza
1SCHRAUBE32144-97
2Key-Ignition63-8360
5Switch-Holder99-6006
6Switch-Starter (Incl. Ref.46-5780
61Lockwasher3254-5
62Hex Nut218-461
7Battery ASM-Panasonic104-7682
71Box Battery104-7900
72Cover-Battery104-7901
73Battery-Panasonic, 12v104-7903
8Harness-Wire, Tc100-1040
9Screw-Special37-7262
10Screw-Plastite32144-32
11Decal-Harness104-7953
12Charger-Battery98-2391
13Fuse-40 Amp99-6124
