> Roth / TORO > Hand operated > Lawnmower > 4-stroke SP > 417/20832 > 220000001 > Electric Start Assy.

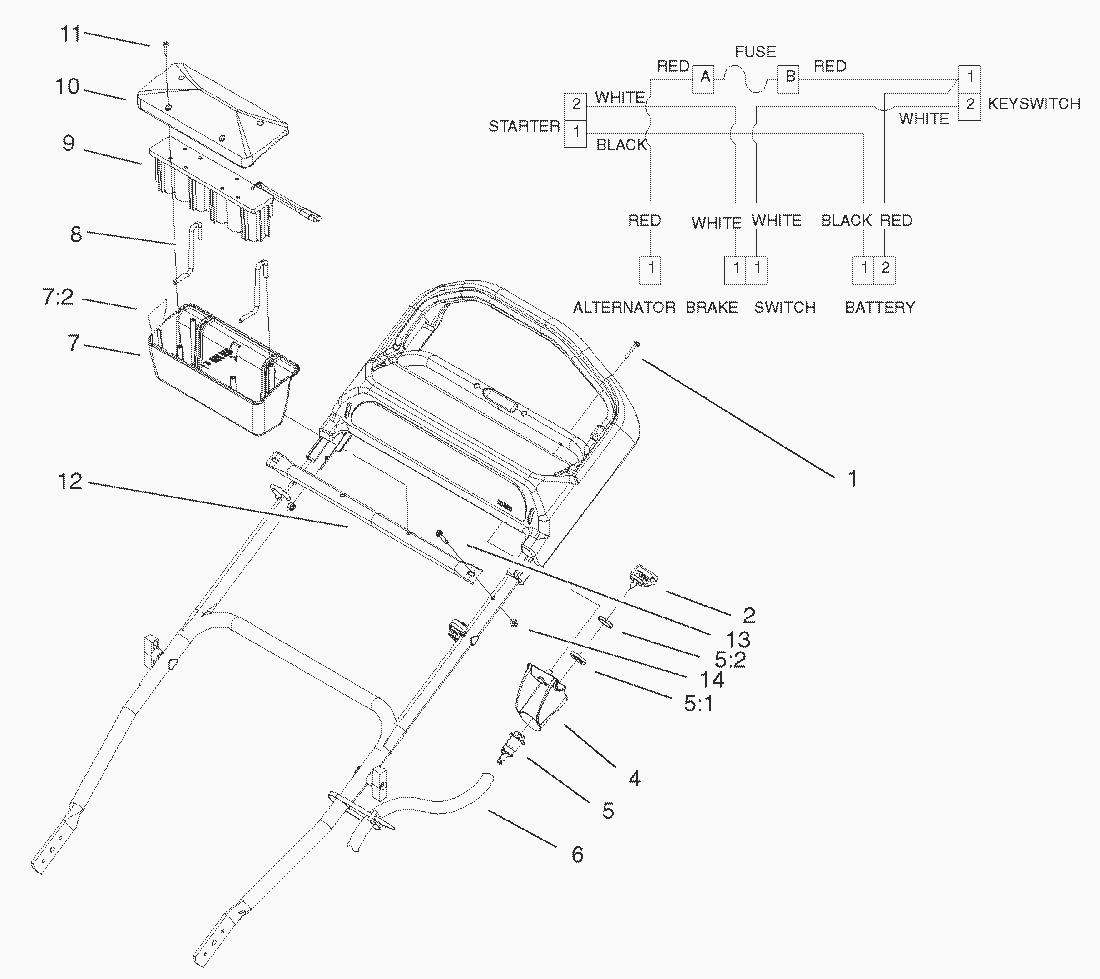

Lista de repuestos para Toro Roth / TORO Electric Start Assy.




Lista de repuestos


pos.descripciónNúmero de pieza
1SCHRAUBE32144-97
2Key-Ignition63-8360
4Switch-Holder99-6006
5Switch-Starter (Incl. Ref.46-5780
51Lockwasher3254-5
52Hex Nut218-461
6Wire-Harness104-7581
7Box-Decal ASM100-9117
72Decal-Box, Battery100-4369
8Rod-Battery99-5299
9Battery99-5296
10Cover-Battery99-5298
11Screw94-4496
12Bar-Battery104-7563-05
13Screw-PPH3250-52
14Nut3296-2
20Charger-Battery98-2391
