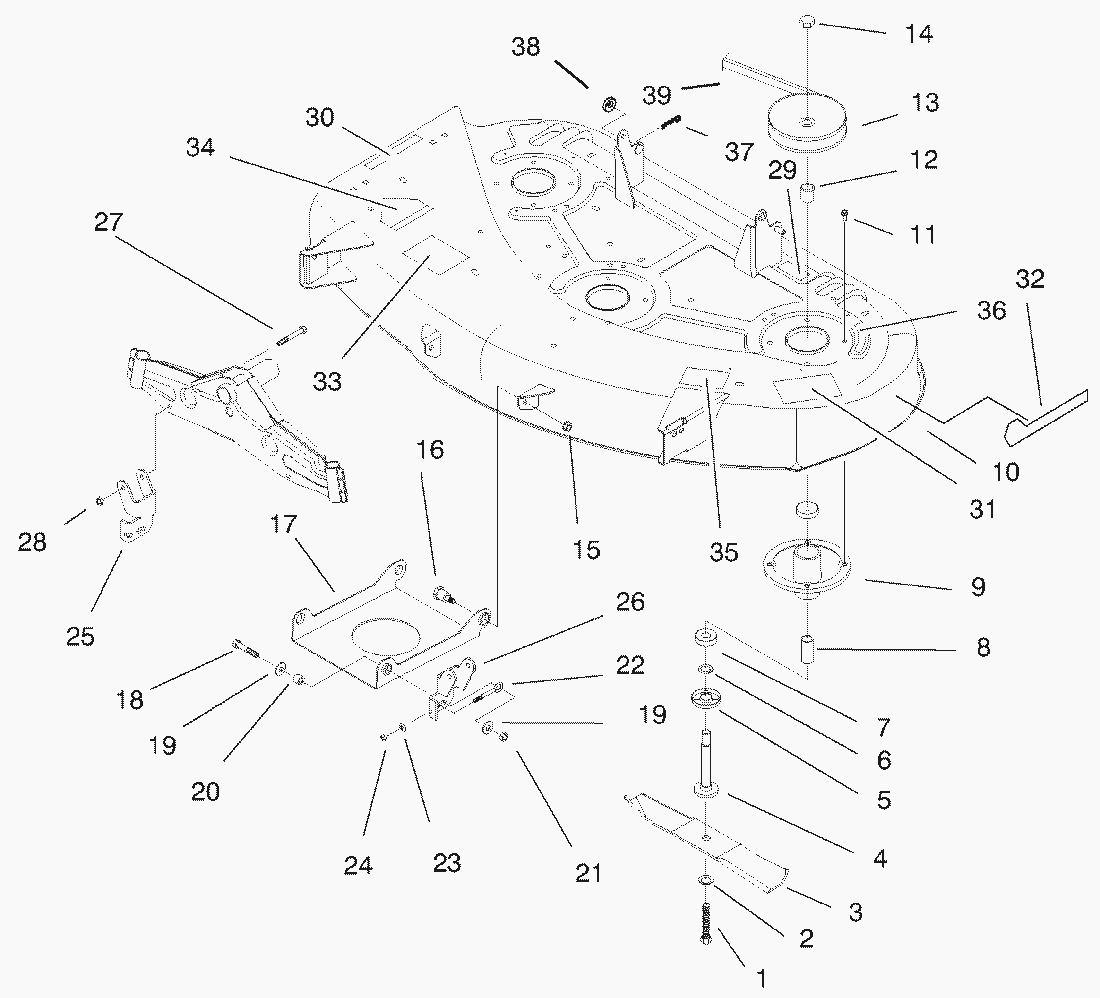

Lista de repuestos para Toro Roth / TORO Deck Assy.

pos.	descripción	Número de pieza
1	Screw-Blade	26-0671
2	Washer-Belleville	3290-465
3	Blade-Recycler (Model No. 79105 Only)	92-7952
	Blade	54-0010
4	Shaft-Spindle	80-4342
5	Shield-Bearing	80-4360
6	Spacer-Hardened	80-4380
7	Ball Bearing	38-7820
8	Spacer-Bearing	62-3661
9	Housing-Spindle	88-4510
10	Deck Assembly (Model No. 79105 Only)	93-3825
	Deck Assembly (Model No. 79106 Only)	93-9831
11	Thread Forming Screw	32144-41
12	Spacer-Wheel	88-5360
13	Pulley-Deck	88-5330
14	Nut-Lock	3219-6
15	Locknut	3296-39
16	Bolt-Shoulder	56-7530
17	Pan-Front Deck Suspension	93-3881
18	Capscrew	323-9
19	Washer-Hardened	80-6990
20	Spacer	93-9847
21	Locknut	3296-39
22	Screw-Adjusting	61-9980
23	Washer	3256-22
24	MUTTER	3296-42
25	Bracket-Deck R.H.	93-9849
26	Bracket-Deck L.H.	93-9848
27	Screw-Cap Hex. Hd.	322-12
28	MUTTER	3296-29
29	Decal Warning	55-4300
	Decal-Warning (Model No. 71200 Only)	93-6674
30	Decal-Deflector Danger	68-3650
	Decal-Deflector Danger (Model No. 71200 Only)	93-7009
31	Decal-Danger	66-1340
	Decal-Danger (Model No. 71200 Only)	93-7010
32	Decal-Deck Recycler (Model No. 79105 Only)	93-3776
33	Decal-Belt	93-3777
34	Decal-Danger	93-1122
35	Decal-WheelAdjustment	93-7282
36	Decal-Shield Danger	68-3660
	Decal-Shield Danger	93-6677
37	Hair Pin Cotter	3290-307
38	Washer-Hardened	80-6990
39	V-Belt	93-3884
