> Roth / TORO > Ride-On Mowers > Traktor > 270 H > 506/72115 > 9900001 > Cruise Control Assy.

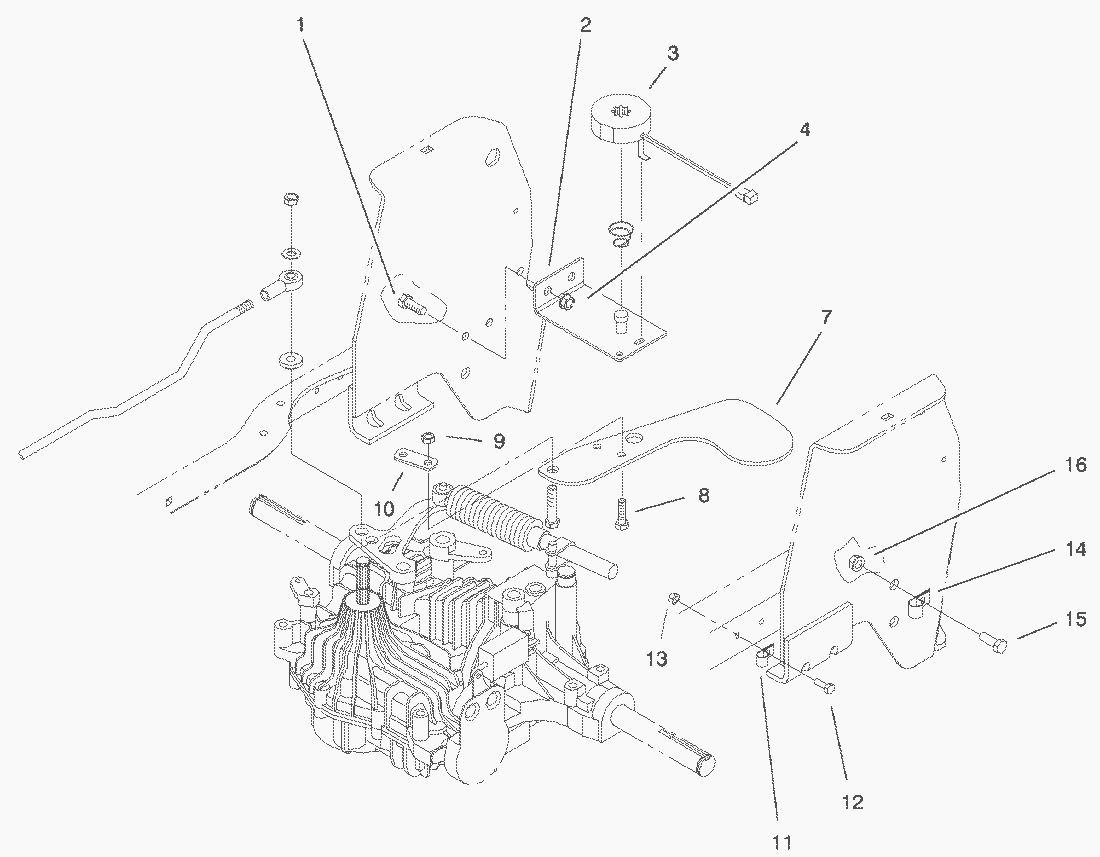

Lista de repuestos para Toro Roth / TORO Cruise Control Assy.




Lista de repuestos


pos.descripciónNúmero de pieza
1Capscrew323-6
2Bracket-Cruise, Wa99-6767-03
3Magnet Assembly (INCL 7: Only On: 72103)93-4366
4Locknut3296-39
7Arm-Cruise (Only On: 72103)93-0511
8Hex Hd. Capscrew322-5
9MUTTER3296-29
10Clamp-Cruise (Only On: 72103)93-0515
11Clamp-R (Model 26620B-0900101 thru 0903406, Model 26620BG-0900101 thru 0901241)2412-89
12Capscrew321-4
13MUTTER3296-42
14Clip-Light Duty99-8719
15Capscrew323-6
16Nut-lock3296-22
