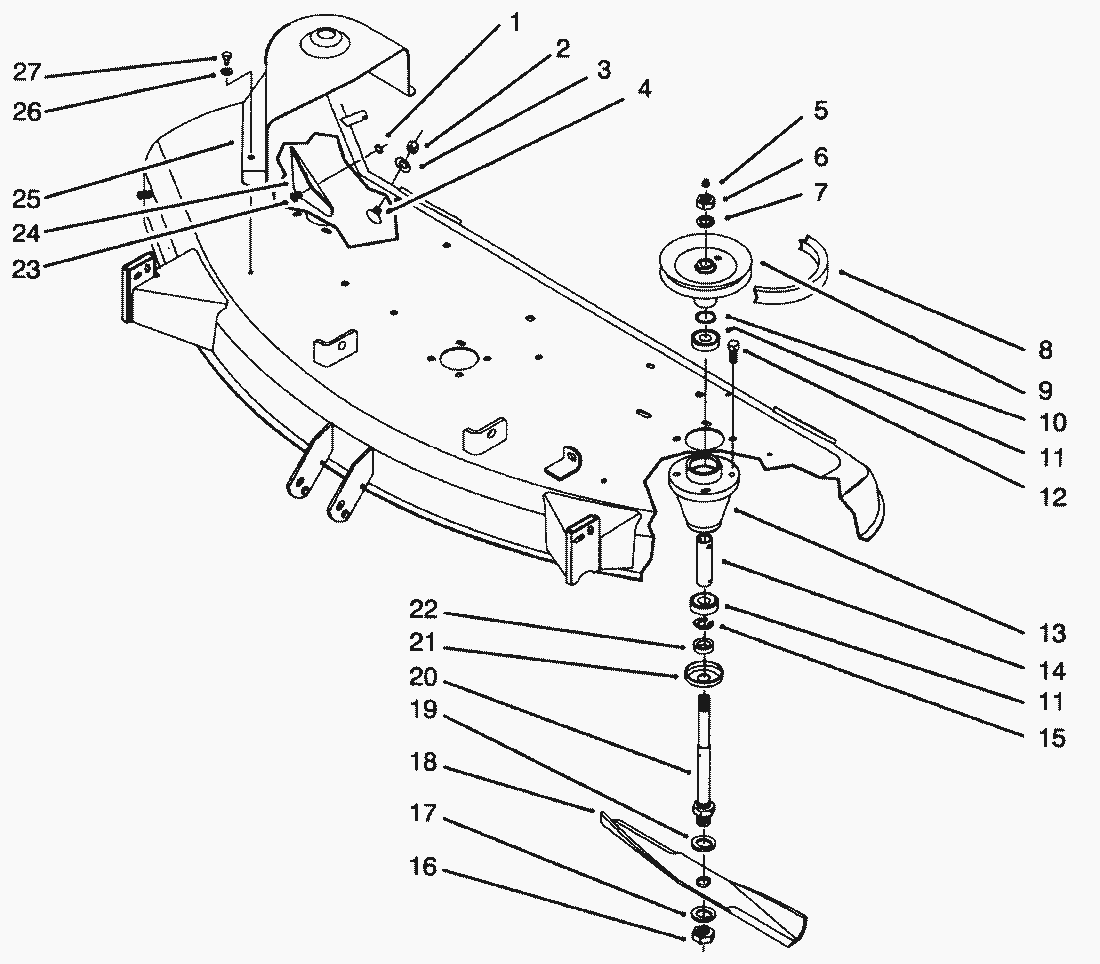

Lista de repuestos para Toro Roth / TORO Cover & Spindle Assy.

pos.	descripción	Número de pieza
1	MUTTER	3296-29
2	Locknut	3296-39
3	Washer	3256-26
4	Bolt-Carriage	3231-1
5	Grease Fitting	302-5
6	Nut	3220-6
7	Lockwasher	3253-8
8	Belt-V	79-5280
9	Pulley-Spindle	79-5540
10	O-Ring	971015
11	Bearing-Ball	109966
12	Screw-Hex Hd. Cap	9080326
13	Housing-Spindle	114568
14	Tube	116085
15	Ring-Retaining Internal	32120-42
16	Nut-Hex Jam	3220-7
17	Washer-Flat	3256-44
18	Blade Kit-16 (Set of 3)	106637
19	Washer-Special	920257
20	Shaft-Spindle	78-6710
21	Cup-Spindle	106067
22	Spacer-Blade	106068
23	Capscrew	322-3
24	Guard-Chute	116189
25	Cover-Belt R.H.	86-9220
	Cover-Belt L.H.	86-9210
26	Washer	3256-22
27	Screw	926671
