Brake Assy.

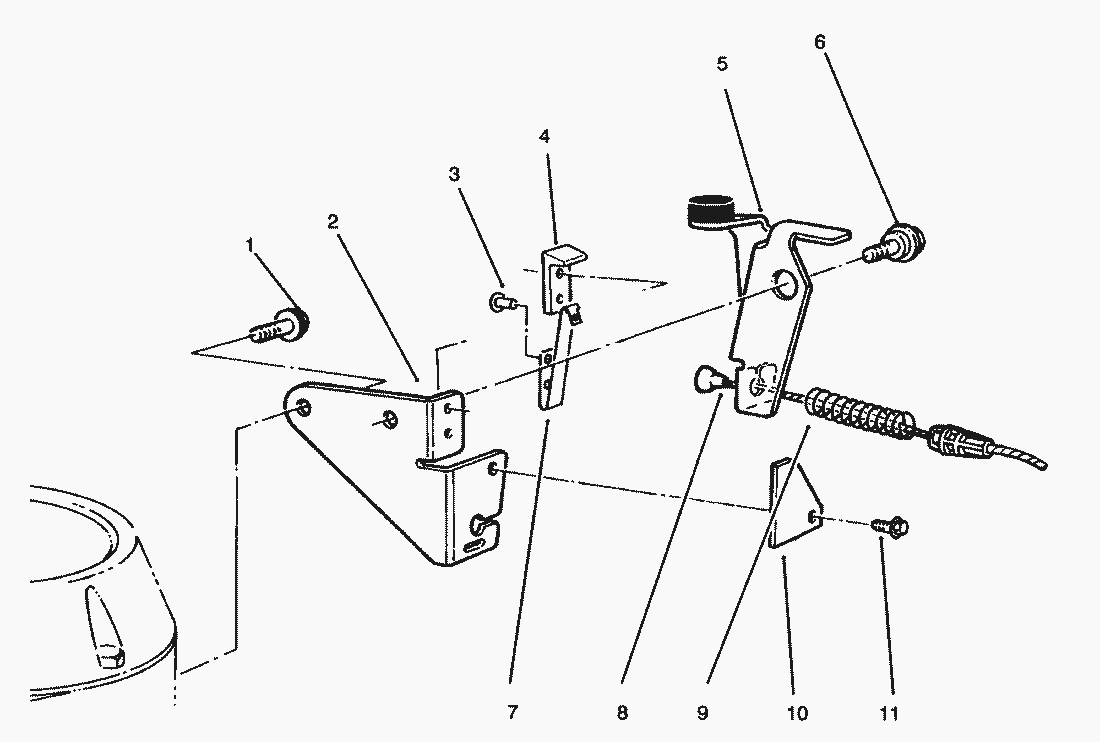

Lista de repuestos para Toro Roth / TORO Brake Assy.
pos.
descripción
Número de pieza
1
Screw Thread Forming
32144-10
2
Plate-Mounting
84-7820
3
NIETE
3290-459
4
ISOLIERSTUECK
77-5260
5
HALTEPLATTE KPL.
66-5380
6
SCHRAUBE
92-9698
7
FEDERBLECH
60-9010
8
Cable-Brake
93-7027
9
FEDER
66-5370
10
ABDECKUNG
53-4690
11
Screw-Self Tapping
32144-112
PLATTE
14-6009
