> Roth / TORO > Hand operated > Lawnmower > 4-stroke SP > 416/20831 > 220000001 > Air Cleaner Assy. Engine B&S Model 122602-0120-E1

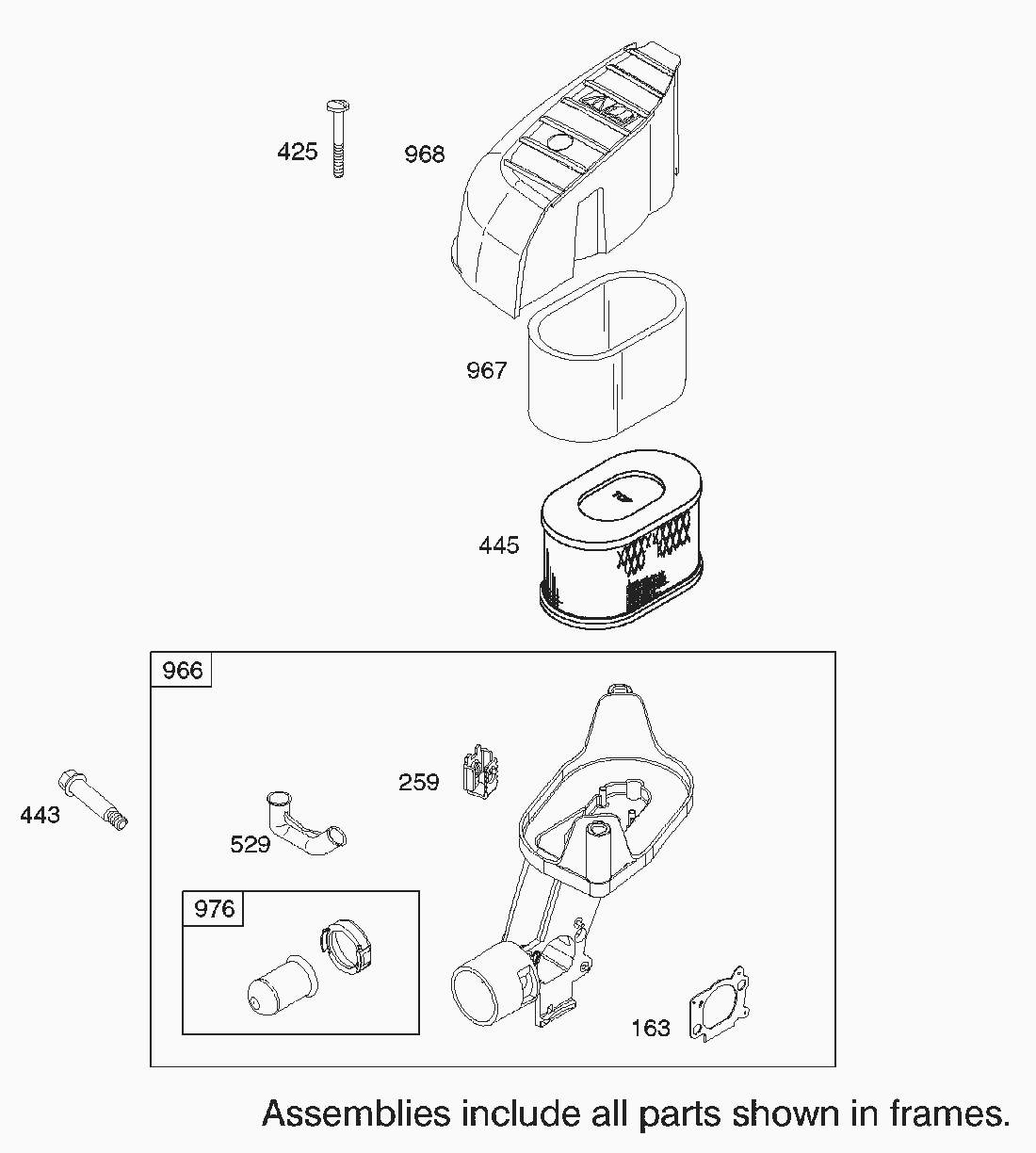

Lista de repuestos para Toro Roth / TORO Air Cleaner Assy. Engine B&S Model 122602-0120-E1




Lista de repuestos


pos.descripciónNúmero de pieza
163Gasket-Air Cleaner691894
259Bracket-Casing Clamp691189
425Screw (Air Cleaner Cover)690244
443Screw (Air Cleaner Primer Bracket)690255
445Air Cleaner CartridgeFilter690610
529Grommet692937
966Base-Air Cleaner Primer690243
967Pre Cleaner Filter273356
968Cover-Air Cleaner692692
976Carburetor Primer694395
