> Roth / TORO > Hand operated > Lawnmower > 4-stroke SP > 465/20779 > 210000001 > Blower Housing Assy. B&S Model 12H802-1776-B1

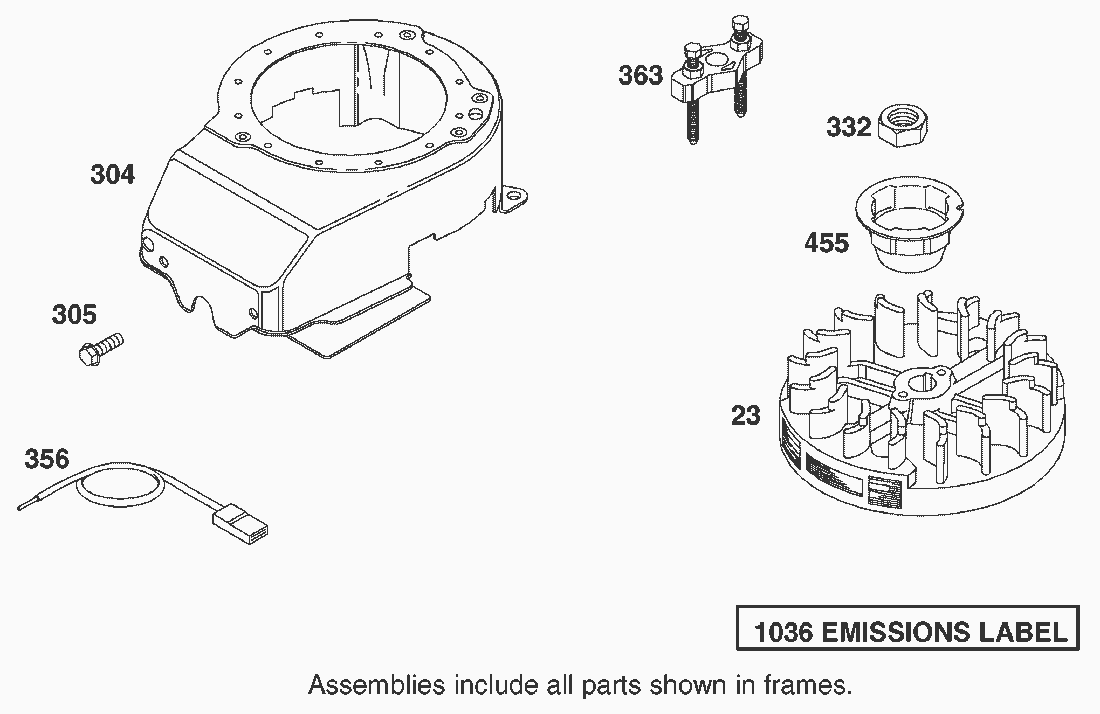

Lista de repuestos para Toro Roth / TORO Blower Housing Assy. B&S Model 12H802-1776-B1




Lista de repuestos


pos.descripciónNúmero de pieza
23Flywheel692315
304Housing-Blower493293
305Screw(Flywheel Guard)691108
332Screw (Control Bracket)690877
356Stop Wire692390
363Flywheel Puller (Optional Accessory)19069
455Flywheel Cup691219
1036Emissions Label695111
